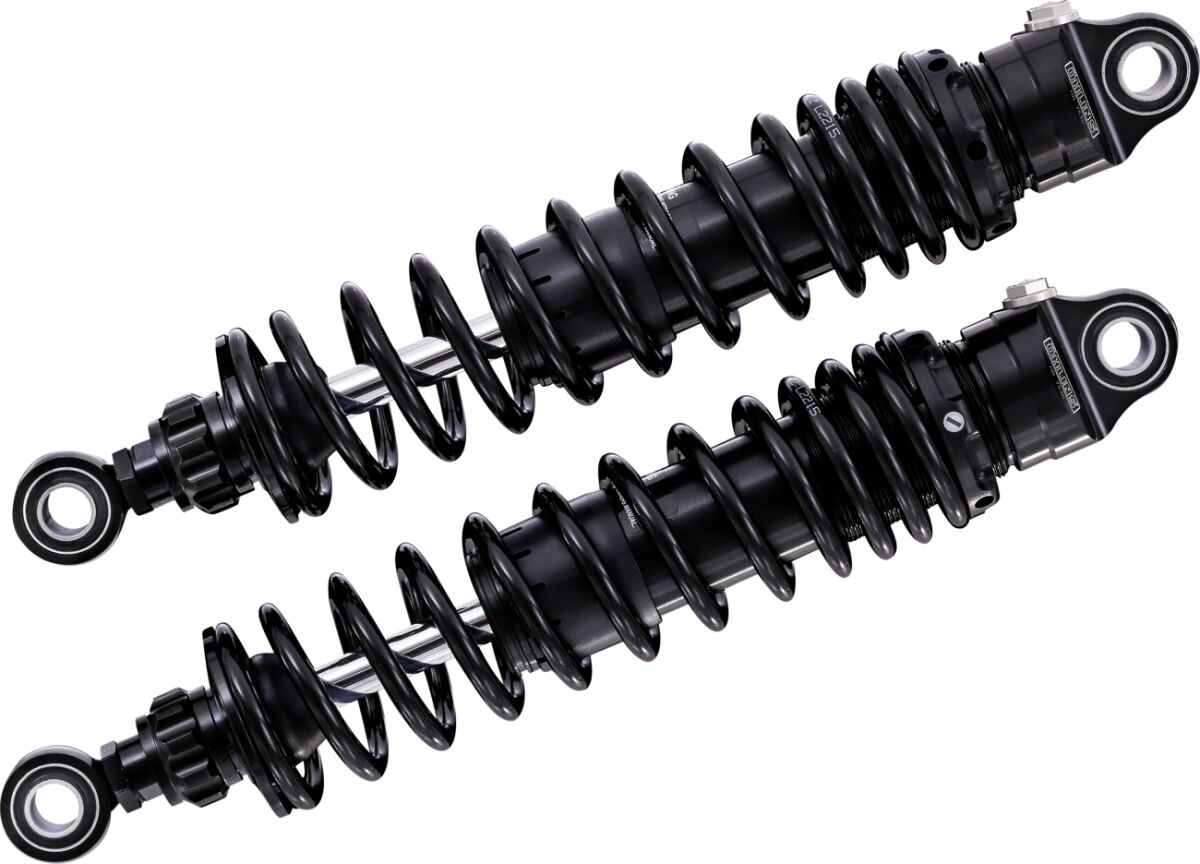

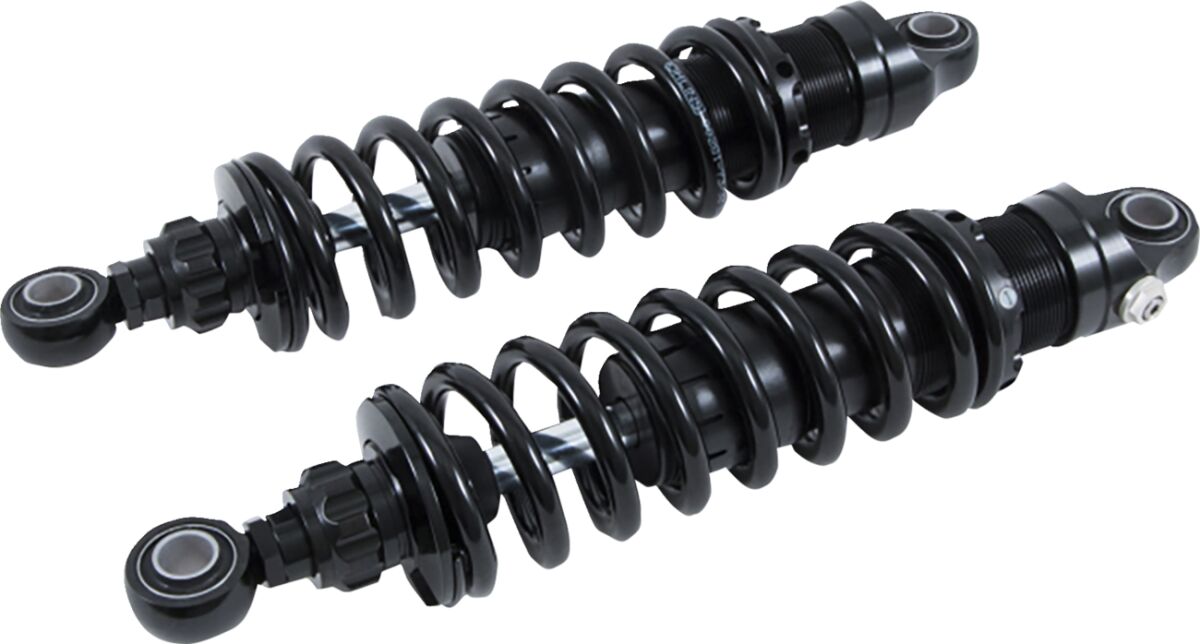

Twin Shocks STX36 Blackline

Value

Categories: Parts, Shocks W/Springs, Suspension Group-Rear

Brand: Ohlins

Vendor Number: HD 772

5.497,00 lei

Delivery time: 3 – 14 days

For parts that are in stock in the United States delivery time may be subject to changes due to current legislation. We recommend that you contact us before placing your order for more information about estimated delivery time.

Description

Adjustable rebound damping

Monotube shock with internal reservoir

Length adjustable by .393″

High pressure nitrogen gas charged

STX single tube design

36 mm / 1.417″ piston diameter

Adjustable preload with billet tool

Multiple spring rates available to accommodate a wide range of riders

Top level comfort, rideability, and performance

Hard anodized – precision CNC-Machined components

Low-friction shaft / Seal head design

Fully serviceable and repairable

Includes Spring: Ohlins Part # 66420-026 (B)

Adjustment range: 0.393″

Stroke length: 3.032″

Weight range: 150 lb – Max 500 lb

Features

Additional information

Units	Pair
Linear Spring Rate	26 n/m
Type	Twin
Model	STX Performance
Product Name	Shock
Color/Finish	Black
Mounting Position	Rear

Compatibility

Model – Sales name	Size	Year
FLHR 1750 – Road King 107	1750	2017
FLHR 1750 ABS – Road King 107	1750	2017
FLHRC 1750 ABS – Road King Classic 107	1750	2017
FLTRU 1750 ABS – Road Glide Ultra 107	1750	2017
FLHTK 1750 ABS – Electra Glide Ultra Limited 107	1750	2017
FLHRXS 1750 ABS – Road King Special 107	1750	2017
FLHRI 1450 EFI – Road King	1450	2001
FLHRI 1450 EFI – Road King	1450	2002
FLHR 1750 – Road King 107	1750	2018
FLHR 1750 ABS – Road King 107	1750	2018
FLHRXS 1750 ABS – Road King Special 107	1750	2018
FLHTK 1750 ABS – Ultra Limited 107	1750	2018
FLHTK 1750 ABS – Ultra Limited Shrine Edition 107	1750	2018
FLHTK 1750 ABS – Ultra Limited Anniversary 107	1750	2018
FLTRU 1750 ABS – Road Glide Ultra 107	1750	2018
FLHRC 1750 ABS – Road King Classic 107	1750	2018
FLHR 1750 – Road King 107	1750	2019
FLHR 1750 ABS – Road King 107	1750	2019
FLHRC 1750 ABS – Road King Classic 107	1750	2019
FLHRXS 1868 ABS – Road King Special 114	1868	2019
FLHTK 1868 ABS – Glide Ultra Limited 114	1868	2019
FLHTK 1868 ABS – Ultra Limited Shrine Edition 114	1868	2019
FLTRU 1868 ABS – Road Glide Ultra 114	1868	2019
FLHT 1450 – Electra Glide	1450	2006
FLHR 1584 – Road King	1584	2009
FLHR 1584 ABS – Road King	1584	2009
FLHRC 1584 – Road King Classic	1584	2009
FLHRC 1584 ABS – Road King Classic	1584	2009
FLHT 1584 – Electra Glide	1584	2009
FLHT 1584 ABS – Electra Glide	1584	2009
FLHTCU 1584 – Electra Glide Ultra Classic	1584	2009
FLHTCU 1584 ABS – Electra Glide Ultra Classic	1584	2009
FLHTCUSE4 1800 ABS – Electra Glide Ultra Classic CVO	1800	2009
FLHR 1584 – Road King	1584	2008
FLHR 1584 ABS – Road King	1584	2008
FLHRC 1584 – Road King Classic	1584	2008
FLHRC 1584 ABS – Road King Classic	1584	2008
FLHTCU 1584 ABS – Electra Glide Ultra Classic	1584	2008
FLHR 1584 – Road King	1584	2011
FLHR 1584 ABS – Road King	1584	2011
FLHR 1584 – Road King	1584	2010
FLHR 1584 ABS – Road King	1584	2010
FLHRC 1584 – Road King Classic	1584	2010
FLHRC 1584 ABS – Road King Classic	1584	2011
FLHRC 1584 ABS – Road King Classic	1584	2010
FLHTCU 1584 – Electra Glide Ultra Classic	1584	2011
FLHTCU 1584 ABS – Electra Glide Ultra Classic	1584	2011
FLHTCU 1584 – Electra Glide Ultra Classic	1584	2010
FLHTCU 1584 ABS – Electra Glide Ultra Classic	1584	2010
FLTRU 1584 ABS – Road Glide Ultra	1584	2011
FLHTCUSE6 1800 ABS – Electra Glide Ultra Classic CVO	1800	2011
FLHTCUSE5 1800 ABS – Electra Glide Ultra Classic CVO	1800	2010
FLTR 1450 – Road Glide	1450	2003
FLHRC 1690 ABS – Road King Classic	1690	2011
FLTRU 1690 ABS – Road Glide Ultra	1690	2011
FLHR 1584 – Road King	1584	2007
FLHRC 1584 – Road King Classic	1584	2007
FLHTCU 1584 – Electra Glide Ultra Classic	1584	2007
FLHR 1450 – Road King	1450	2006
FLHRI 1450 EFI – Road King	1450	2006
FLHRCI 1450 EFI – Road King Classic	1450	2006
FLHTCI 1450 EFI – Electra Glide Classic	1450	2006
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2006
FLHTI 1450 EFI – Electra Glide	1450	2006
FLTRI 1450 EFI – Road Glide	1450	2006
FLHRCI 1450 EFI – Road King Classic	1450	2005
FLHR 1450 – Road King	1450	2005
FLHRI 1450 EFI – Road King	1450	2005
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2005
FLHTC 1450 – Electra Glide Classic	1450	2005
FLHTCI 1450 EFI – Electra Glide Classic	1450	2005
FLHT 1450 – Electra Glide	1450	2005
FLHTI 1450 EFI – Electra Glide	1450	2005
FLTRI 1450 EFI – Road Glide	1450	2005
FLHR 1450 – Road King	1450	2004
FLHRI 1450 EFI – Road King	1450	2004
FLHRC 1450 – Road King Classic	1450	2004
FLHRCI 1450 EFI – Road King Classic	1450	2004
FLHT 1450 – Electra Glide	1450	2004
FLHTI 1450 EFI – Electra Glide	1450	2004
FLHTC 1450 – Electra Glide Classic	1450	2004
FLHTCI 1450 EFI – Electra Glide Classic	1450	2004
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2004
FLTRI 1450 EFI – Road Glide	1450	2004
FLHR 1450 – Road King	1450	2003
FLHRI 1450 EFI – Road King	1450	2003
FLHRCI 1450 EFI – Road King Classic	1450	2003
FLHT 1450 – Electra Glide	1450	2003
FLHTC 1450 – Electra Glide Classic	1450	2003
FLHTCI 1450 EFI – Electra Glide Classic	1450	2003
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2003
FLTRI 1450 EFI – Road Glide	1450	2003
FLHR 1450 – Road King	1450	2002
FLHRCI 1450 EFI – Road King Classic	1450	2002
FLHT 1450 – Electra Glide	1450	2002
FLHTC 1450 – Electra Glide Classic	1450	2002
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2002
FLTR 1450 – Road Glide	1450	2002
FLTRI 1450 EFI – Road Glide	1450	2002
FLHR 1450 – Road King	1450	2001
FLHRCI 1450 EFI – Road King Classic	1450	2001
FLHT 1450 – Electra Glide	1450	2001
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2001
FLTR 1450 – Road Glide	1450	2001
FLTRI 1450 EFI – Road Glide	1450	2001
FLHR 1450 – Road King	1450	2000
FLHRI 1450 EFI – Road King	1450	2000
FLHRCI 1450 EFI – Road King Classic	1450	2000
FLHT 1450 – Electra Glide	1450	2000
FLTR 1450 – Road Glide	1450	2000
FLTRI 1450 EFI – Road Glide	1450	2000
FLHRI 1450 EFI – Road King	1450	1999
FLHRCI 1450 EFI – Road King Classic	1450	1999
FLHT 1450 – Electra Glide	1450	1999
FLTR 1450 – Road Glide	1450	1999
FLTRI 1450 EFI – Road Glide	1450	1999
FLHRCI 1340 EFI – Road King Classic	1340	1998
FLHT 1340 – Electra Glide Standard	1340	1998
FLTRI 1340 EFI – Road Glide	1340	1998
FLHRI 1340 EFI – Road King	1340	1997
FLHT 1340 – Electra Glide Standard	1340	1997
FLHRI 1340 EFI – Road King	1340	1996
FLHT 1340 – Electra Glide Standard	1340	1996
FLHR 1690 – Road King	1690	2012
FLHR 1690 ABS – Road King	1690	2012
FLHRC 1690 ABS – Road King Classic	1690	2012
FLTRU 1690 ABS – Road Glide Ultra	1690	2012
FLHTCU 1690 – Electra Glide Ultra Classic	1690	2012
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2012
FLHTCUSE7 1800 ABS – Electra Glide Ultra Classic CVO	1800	2012
FLHR 1690 – Road King	1690	2013
FLHR 1690 ABS – Road King	1690	2013
FLHR 1690 ABS – Road King 110th Anniversary	1690	2013
FLHRC 1690 ABS – Road King Classic	1690	2013
FLTRU 1690 ABS – Road Glide Ultra	1690	2013
FLHTCU 1690 – Electra Glide Ultra Classic	1690	2013
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2013
FLHTCUSE8 1800 ABS – Electra Glide Ultra Classic CVO	1800	2013
FLHTCUSE8 1800 ABS – Electra Glide Ultra Classic CVO 110th Anniversary	1800	2013
FLHRSE5 1800 ABS – Road King CVO	1800	2013
FLHRSE5 1800 ABS – Road King CVO 110th Anniversary	1800	2013
FLHR 1690 – Road King	1690	2014
FLHR 1690 ABS – Road King	1690	2014
FLHRC 1690 ABS – Road King Classic	1690	2014
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2014
FLHRC 1690 ABS – Road King Classic	1690	2015
FLHR 1690 – Road King	1690	2015
FLHR 1690 ABS – Road King	1690	2015
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2015
FLTRX 1690 – Road Glide	1690	2015
FLTRX 1690 ABS – Road Glide	1690	2015
FLHR 1690 ABS – Road King	1690	2016
FLTRX 1690 – Road Glide	1690	2016
FLTRX 1690 ABS – Road Glide	1690	2016
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2016
FLTRU 1690 ABS – Road Glide Ultra	1690	2016
FLHRC 1690 ABS – Road King Classic	1690	2016
FLHT 1340 – Electra Glide Standard	1340	1995
FLHT 1584 – Electra Glide	1584	2010
FLHT 1584 ABS – Electra Glide	1584	2010
