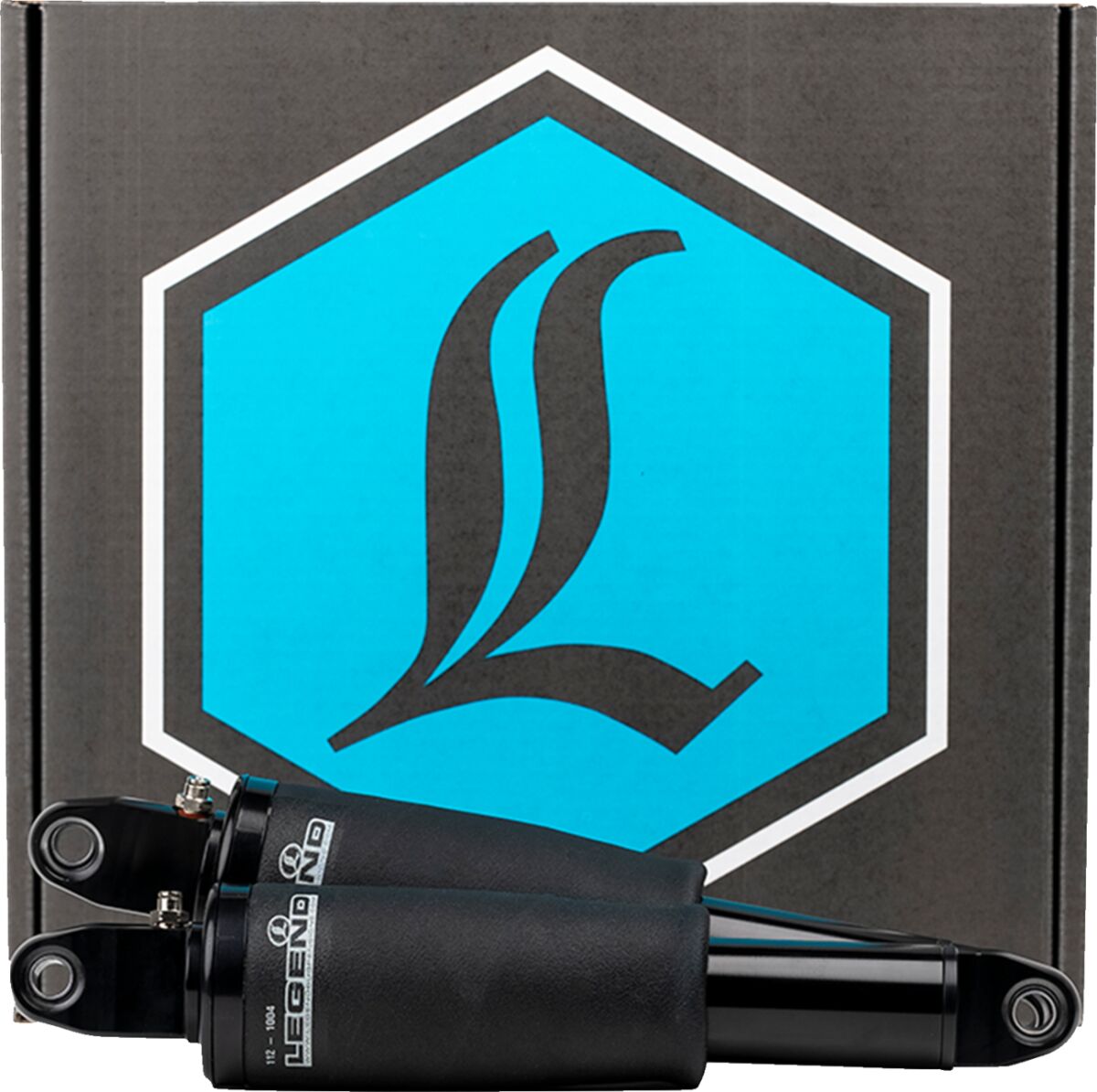

Tri Glide Air Suspension

Value

Categories: Parts, Shocks W/O Springs, Suspension Group-Rear

Brand: Legend Suspensions

Vendor Number: 1311-0176

11.555,24 lei

Description

13.6″ length maximizes rear ride height on ’17 and newer trikes utilizing OEM shock mount plates

Eliminates the need for a lift kit

Levels out trike models that sit low in the rear from the factory

Reduces dragging and scuffing of mufflers when rolling thru drain basins, backing up to curbs, or loading on a trailer

Easier steering due less trail in the front end

Legend AIR Suspensions systems sets the high mark in ultimate ride quality

Exclusive Aramid Fiber air spring technology provides spring rate adjustability

Air springs maximize wheel travel and adjust to any desired ride height

Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points

Type III hard-coat black anodized machined aluminum bodies

Low friction sealing system and sliding bearings for improved performance and feel

High flow piston reacts quickly for improved fluid flow management

Deflective disc valving self-adjusts to frequency and ensures controlled performance

Includes prewired air compressor with model specific mounting

Complete wire harness installs with three easy Deutsch connections

Includes OEM-looking black handlebar mounted control for easy “on-the-go” adjustability

Optional chrome handlebar mounted control sold separately (Part # 0616-0207)

Optional fairing mounted matching gauges (Part #’s 2212-0484, 2212-0485, 2212-0492, 2212-0493, 2212-0494) sold separately

Made by hand in Sturgis, South Dakota, USA

P65 WARNING: Cancer and Reproductive Harm

Shocks are designed to be installed using the OEM lower shock mount brackets. Not compatible with aftermarket lift kits.

Product Name	Shock Absorber
Mounting Position	Rear
Reservoir Location	Internal
Material	Aramid Fiber, Billet Aluminum
Extended Length	345, 44 mm (13, 60")
Type	Air Shock
Color/Finish	Anodized, Black
Adjustment Type	Adjustable Air Spring
Model	Air
Units	Pair

Model – Sales name	Size	Year
FLRT 1750 – Freewheeler 107	1750	2017
FLHTCUTG 1750 – Trike Tri Glide Ultra Classic 107	1750	2017
FLHTCUTG 1750 – Tri Glide Ultra 107	1750	2018
FLHTCUTG 1750 – Tri Glide Ultra Anniversary 107	1750	2018
FLRT 1750 – Freewheeler 107	1750	2018
FLHTCUTG 1750 ABS – Tri Glide Ultra 107	1750	2019
FLRT 1750 ABS – Freewheeler 107	1750	2019
FLHTCUTG 1868 ABS – Tri Glide Ultra 114	1868	2020
FLHTCUTGSE 1923 ABS – Tri Glide Ultra CVO 117	1923	2020
FLRT 1868 ABS – Freewheeler 114	1868	2020
FLHTCUTG 1868 ABS – Tri Glide Ultra 114	1868	2021
FLHTCUTGSE 1923 ABS – Tri Glide Ultra CVO 117	1923	2021
FLRT 1868 ABS – Freewheeler 114	1868	2021
FLRT 1868 ABS – Freewheeler 114	1868	2022
FLHTCUTG 1868 ABS – Tri Glide Ultra 114	1868	2022
FLHTCUTGSE 1923 ABS – Tri Glide CVO 117	1923	2022
FLTRT 1868 ABS – Road Glide 3 114	1868	2023
FLHTCUTG 1868 ABS – Tri Glide Ultra 114	1868	2023
FLRT 1868 ABS – Freewheeler 114	1868	2023
FLRT 1868 ABS – Freewheeler 114	1868	2024
FLHTCUTG 1868 ABS – Tri Glide Ultra 114	1868	2024
FLTRT 1868 ABS – Road Glide 3 114	1868	2024
