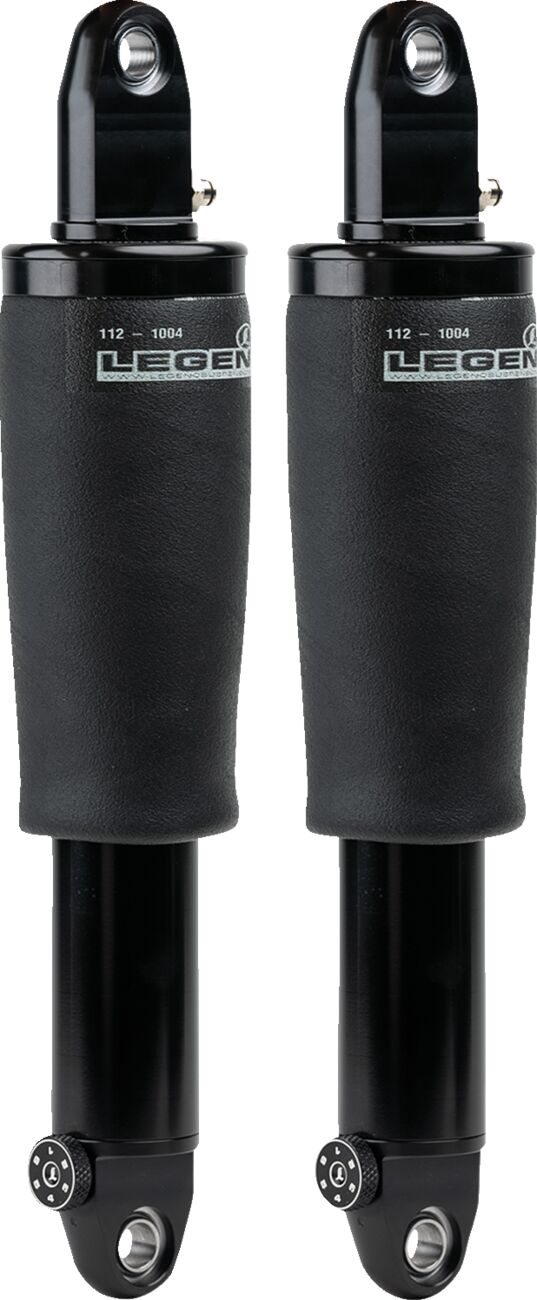

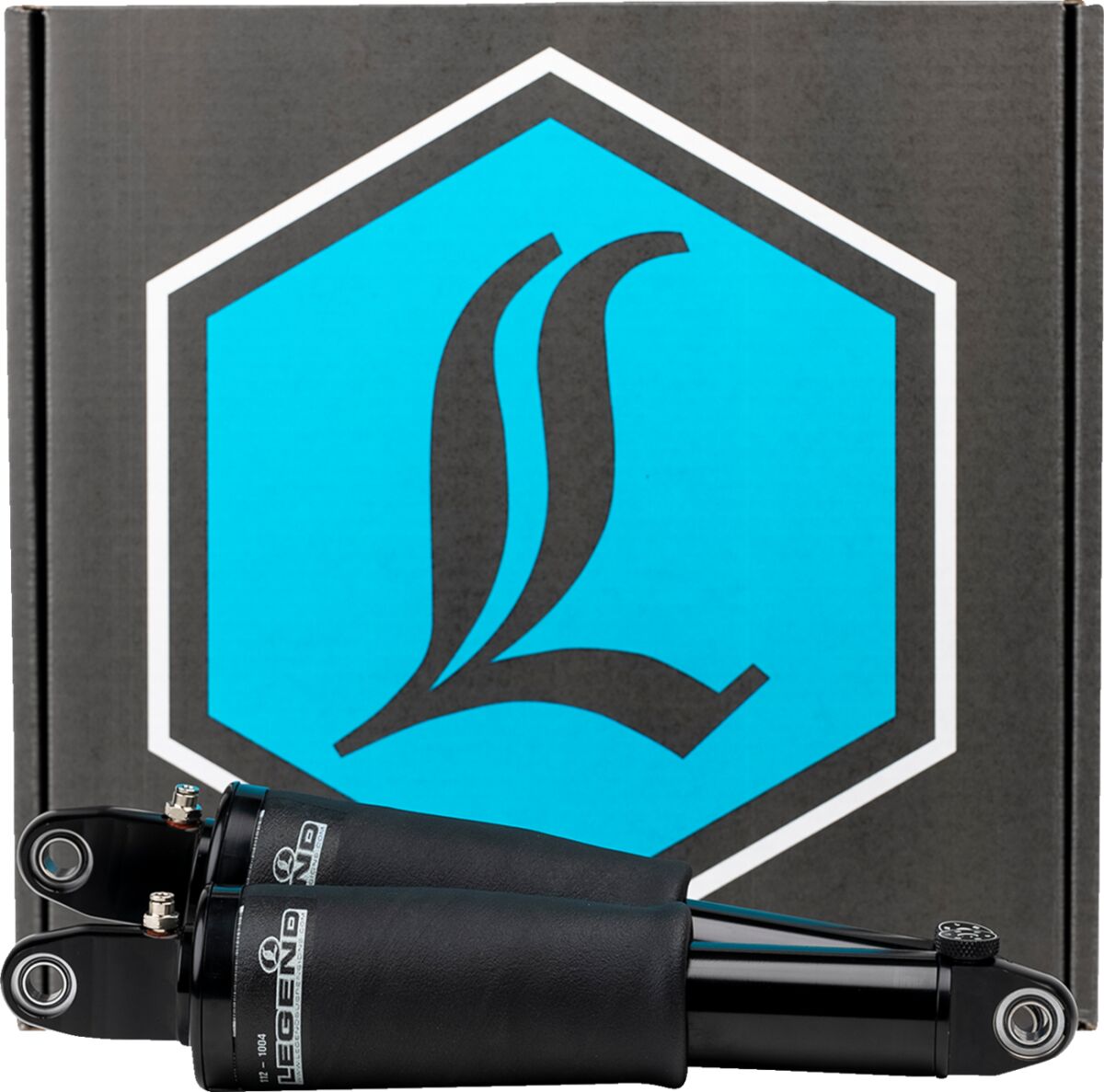

Tri-Glide AIR-A Suspension

Tri-Glide AIR-A Suspension
Tri-Glide AIR-A Suspension - Image 2
Tri-Glide AIR-A Suspension - Image 3

Categories: , ,

Brand:

Vendor Number: 1311-0177

12.981,54 lei

Delivery time: 3 – 14 days

For parts that are in stock in the United States delivery time may be subject to changes due to current legislation. We recommend that you contact us before placing your order for more information about estimated delivery time.

Description

  • 13.6″ length maximizes rear ride height on ’17 and newer trikes utilizing OEM shock mount plates
  • Eliminates the need for a lift kit
  • Levels out trike models that sit low in the rear from the factory
  • Reduces dragging and scuffing of mufflers when rolling thru drain basins, backing up to curbs, or loading on a trailer
  • Easier steering due to less trail in the front end
  • Legend AIR Suspensions systems sets the high mark in ultimate ride quality
  • Exclusive Aramid Fiber air spring technology provides spring rate adjustability
  • Air springs maximize wheel travel and adjust to any desired ride height
  • Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
  • Type III hard-coat black anodized machined aluminum bodies
  • Low friction sealing system and sliding bearings for improved performance and feel
  • High flow piston reacts quickly for improved fluid flow management
  • Deflective disc valving self-adjusts to frequency and ensures controlled performance
  • All the benefits of the standard AIR suspension system, plus six external knob adjustments allow fine-tuning of rebound
  • Rebound adjustable for optimum performance and comfort for any given rider weight or personal riding style

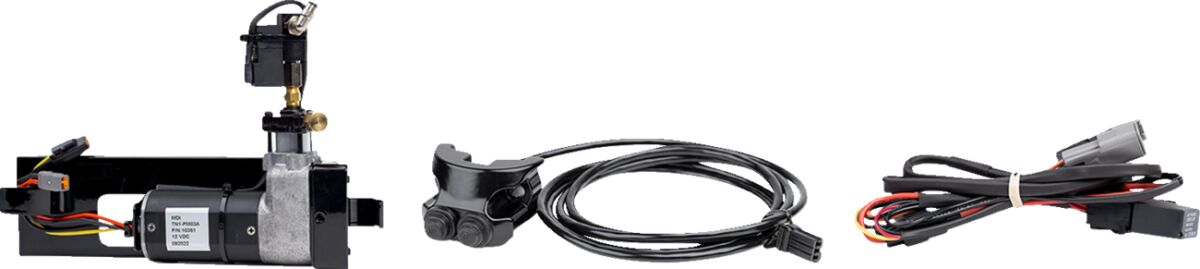

  • Includes prewired air compressor with model specific mounting
  • Complete wire harness installs with three easy Deutsch connections
  • Includes OEM-looking black handlebar mounted control for easy “on-the-go” adjustability
  • Optional chrome handlebar mounted control sold separately (Part # 0616-0207)
  • Optional fairing mounted matching gauges (Part #’s 2212-0484, 2212-0485, 2212-0492, 2212-0493, 2212-0494) sold separately
  • Made by hand in Sturgis, South Dakota, USA
  • P65 WARNING: Cancer and Reproductive Harm

    • Shocks are designed to be installed using the OEM lower shock mount brackets. Not compatible with aftermarket lift kits.

    Features

    Additional information

    Mounting Position

    Rear
    Type

    Air Shock
    Material

    Aramid Fiber, Billet Aluminum
    Adjustment Type

    Adjustable Rebound Damping
    Units

    Pair
    Color/Finish

    Anodized, Black
    Model

    Air-A
    Extended Length

    345, 44 mm (13, 60")
    Reservoir Location

    Internal
    Product Name

    Shock Absorber

    Compatibility

    Model – Sales nameSizeYear
    FLRT 1750 – Freewheeler 107 17502017
    FLHTCUTG 1750 – Trike Tri Glide Ultra Classic 107 17502017
    FLHTCUTG 1750 – Tri Glide Ultra 107 17502018
    FLHTCUTG 1750 – Tri Glide Ultra Anniversary 107 17502018
    FLRT 1750 – Freewheeler 107 17502018
    FLHTCUTG 1750 ABS – Tri Glide Ultra 107 17502019
    FLRT 1750 ABS – Freewheeler 107 17502019
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682020
    FLHTCUTGSE 1923 ABS – Tri Glide Ultra CVO 117 19232020
    FLRT 1868 ABS – Freewheeler 114 18682020
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682021
    FLHTCUTGSE 1923 ABS – Tri Glide Ultra CVO 117 19232021
    FLRT 1868 ABS – Freewheeler 114 18682021
    FLRT 1868 ABS – Freewheeler 114 18682022
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682022
    FLHTCUTGSE 1923 ABS – Tri Glide CVO 117 19232022
    FLTRT 1868 ABS – Road Glide 3 114 18682023
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682023
    FLRT 1868 ABS – Freewheeler 114 18682023
    FLRT 1868 ABS – Freewheeler 114 18682024
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682024
    FLTRT 1868 ABS – Road Glide 3 114 18682024
