REVO-A Adjustable M-Eight Softail Coil Suspension

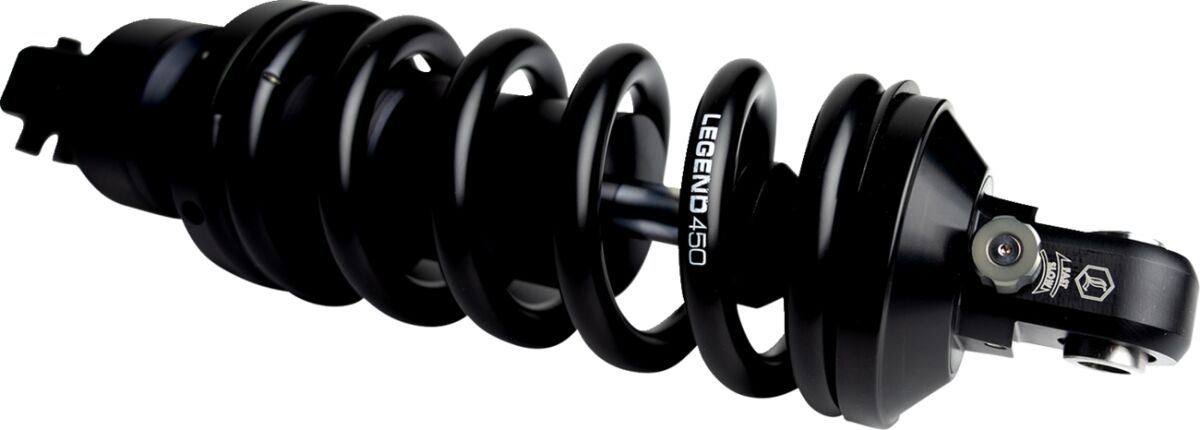

REVO-A Adjustable M-Eight Softail Coil Suspension

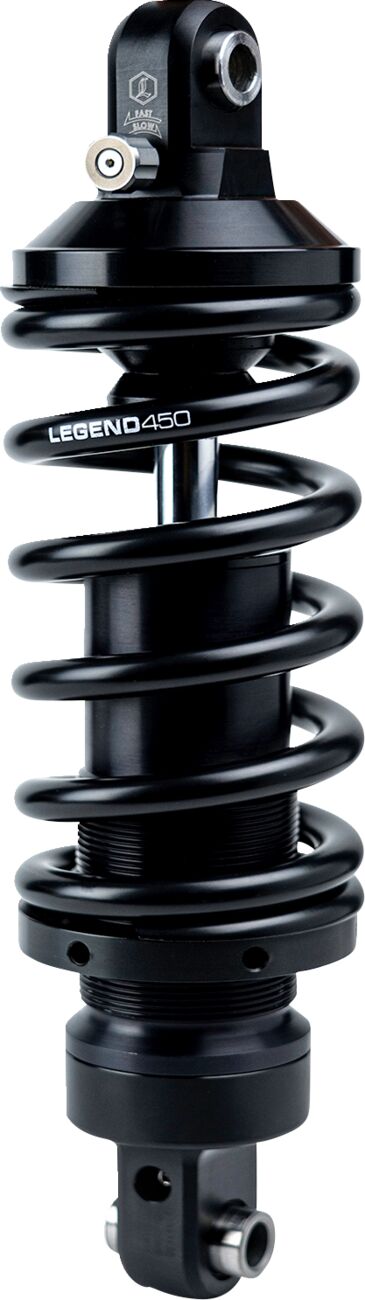

REVO-A Adjustable M-Eight Softail Coil Suspension - Image 2

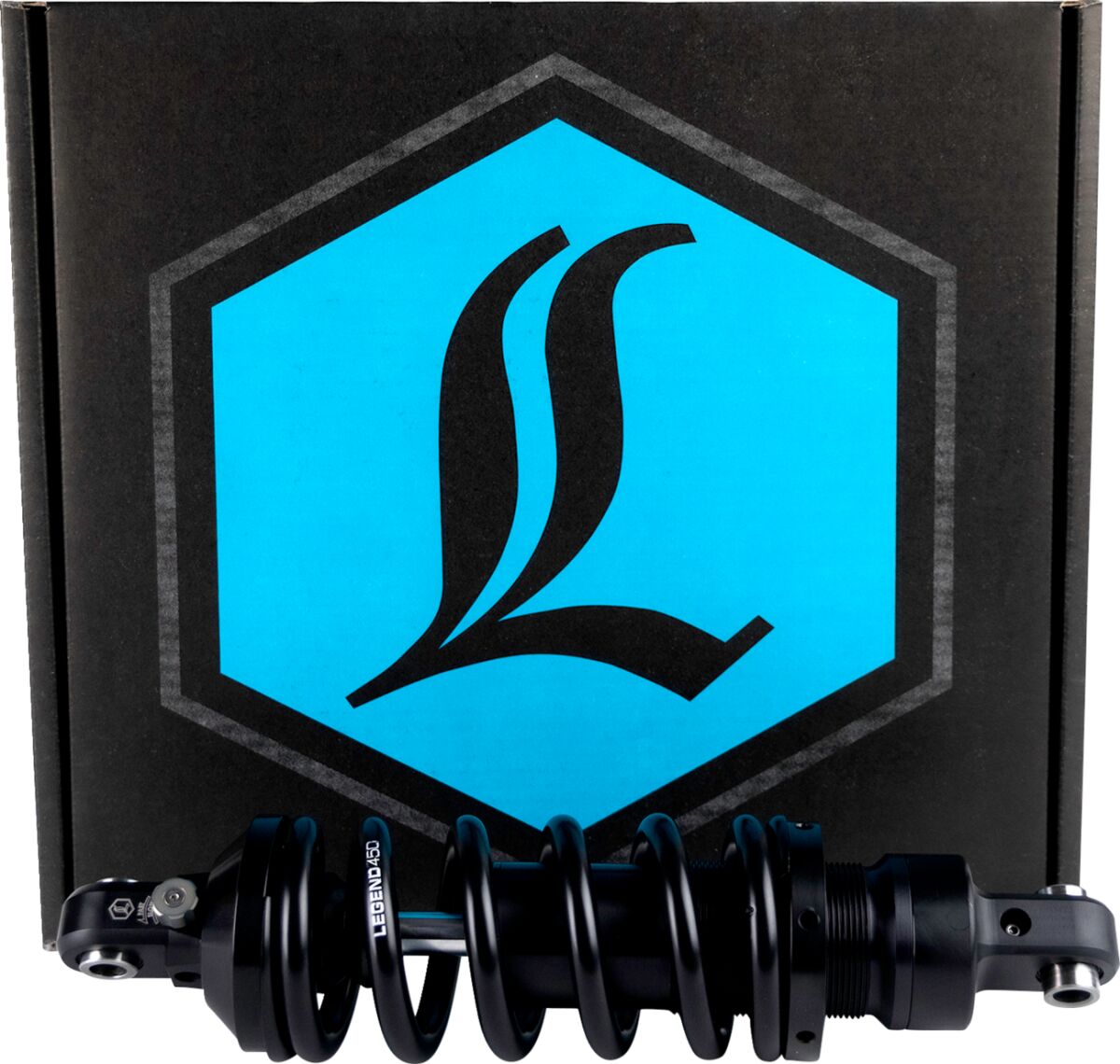

REVO-A Adjustable M-Eight Softail Coil Suspension - Image 3

Categories: , ,

Brand:

Vendor Number: 1310-2315

6.292,91 lei

Delivery time: 3 – 14 days

Description

  • All new Revo-A coil design for the M-Eight Softail
  • Available in 12.5″, 13″, and 13.5″, standard or heavy-duty applications
  • Revo-A coil spring provides superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
  • Provides optimum rebound performance that can be fine-tuned for any given rider weight, personal ride preference, or personal riding style
  • Adjustable preload for rider set up, also allows for minimal pre-load adjustment when changing between rider’s weights and loads
  • Seven external knob adjustments allow fine-tuning of rebound utilizing needle valve technology to adapt to your riding style
  • Low friction sleeve bearings both top and bottom for ease of installation, this also allows the shock to float in its mount and avoid shock bind
  • Hard anodized, machined billet aluminum 46 mm mono tube utilizes a lightweight high flow piston design for improved fluid flow resulting in unmatched handling and bike control
  • Hard chromed shaft is 14% larger for increased strength
  • High quality chrome-silicon spring for consistent spring rate for the life of the motorcycle
  • Internal floating nitrogen piston ensures consistent damping performance
  • Deflective disc valving self-adjusts to frequency and ensures controlled performance
  • Legend’s durable and low friction sealing system and sliding bearings provide improved performance and feel
  • Available in Black Type III hard coat anodize
  • Easy installation and adjustment replacing the stock shock and mounts with original OEM hardware
  • Sold as Mono Shock (1 shock only)
  • Preload wrench included
  • Designed for optimum performance with the Legend Axeo front suspension
  • Lifetime Warranty
  • Made by hand in Sturgis, SD, USA
  • P65 WARNING: Cancer and Reproductive Harm.

    • 13″ is standard length for FLHC/FXFB/FXLRS/FXLRST.
    Heavy Duty applications are recommended for 350 lb + rider and passenger total weight. Also consider heavy-duty if the majority of your riding is 2 up with a passenger and/or gear.

    Features

    Additional information

    Units

    Each
    Adjustment Type

    Adjustable Rebound Damping
    Mounting Position

    Rear
    Material

    Billet Aluminum
    Product Name

    Shock Absorber
    Extended Length

    343, 00 mm (13, 50")
    Reservoir Location

    Internal
    Color/Finish

    Anodized, Black
    Type

    Coilover Monotube
    Duty

    Standard
    Model

    Revo-A

    Compatibility

    Model – Sales nameSizeYear
    FXBB 1750 ABS – Softail Street Bob 107 17502018
    FXFB 1750 ABS – Softail Fat Bob 107 17502018
    FXFBS 1868 ABS – Softail Fat Bob 114 18682018
    FXBR 1750 ABS – Softail Breakout 107 17502018
    FXBRS 1868 ABS – Softail Breakout 114 18682018
    FXBRS 1868 ABS – Softail Breakout Anniversary (ANX) 114 18682018
    FLSL 1750 ABS – Softail Slim 107 17502018
    FXLR 1750 ABS – Softail Low Rider 107 17502018
    FLFB 1750 ABS – Softail Fat Boy 107 17502018
    FLFBS 1868 ABS – Softail Fat Boy 114 18682018
    FLFBS 1868 ABS – Softail Fat Boy Anniversary (ANX) 114 18682018
    FLFBS 1868 ABS – Softail Fat Boy Anniversary (ANV) 114 18682018
    FLDE 1750 ABS – Softail Deluxe 107 17502018
    FLHC 1750 ABS – Softail Heritage Classic 107 17502018
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682018
    FLHCS 1868 ABS – Softail Heritage Classic Anniversary 114 18682018
    FLSB 1750 ABS – Softail Sport Glide 107 17502018
    FLDE 1750 ABS – Softail Deluxe 107 17502019
    FLFB 1750 ABS – Softail Fat Boy 107 17502019
    FLFBS 1868 ABS – Softail Fat Boy 114 18682019
    FLHC 1750 ABS – Softail Heritage Classic 107 17502019
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682019
    FLSB 1750 ABS – Softail Sport Glide 107 17502019
    FLSL 1750 ABS – Softail Slim 107 17502019
    FXBB 1750 ABS – Softail Street Bob 107 17502019
    FXBR 1750 ABS – Softail Breakout 107 17502019
    FXBRS 1868 ABS – Softail Breakout 114 18682019
    FXFB 1750 ABS – Softail Fat Bob 107 17502019
    FXFBS 1868 ABS – Softail Fat Bob 114 18682019
    FXLR 1750 ABS – Softail Low Rider 107 17502019
    FLDE 1750 ABS – Softail Deluxe 107 17502020
    FLFB 1750 ABS – Softail Fat Boy 107 17502020
    FLFBS 1868 ABS – Softail Fat Boy 114 18682020
    FLHC 1750 ABS – Softail Heritage Classic 107 17502020
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682020
    FLSB 1750 ABS – Softail Sport Glide 107 17502020
    FLSL 1750 ABS – Softail Slim 107 17502020
    FXBB 1750 ABS – Softail Street Bob 107 17502020
    FXBR 1750 ABS – Softail Breakout 107 17502020
    FXBRS 1868 ABS – Softail Breakout 114 18682020
    FXFBS 1868 ABS – Softail Fat Bob 114 18682020
    FXLR 1750 ABS – Softail Low Rider 107 17502020
    FXLRS 1868 ABS – Softail Low Rider S 114 18682020
    FXST 1750 ABS – Softail Standard 17502020
    FLSL 1750 ABS – Softail Slim 107 17502021
    FXST 1750 – Softail Standard 17502021
    FXBRS 1868 ABS – Softail Breakout 114 18682021
    FLFBS 1868 ABS – Softail Fat Boy 114 18682021
    FLHC 1750 ABS – Softail Heritage Classic 107 17502021
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682021
    FLSB 1750 ABS – Softail Sport Glide 107 17502021
    FXBBS 1868 ABS – Softail Street Bob 114 18682021
    FXFB 1750 ABS – Softail Fat Bob 107 17502021
    FXFBS 1868 ABS – Softail Fat Bob 114 18682021
    FXLRS 1868 ABS – Softail Low Rider S 114 18682021
    FXST 1750 ABS – Softail Standard 17502021
    FXBBS 1868 – Softail Street Bob 114 18682021
    FXST 1750 ABS – Softail Standard 17502022
    FXBBS 1868 ABS – Softail Street Bob 114 18682022
    FLFBS 1868 ABS – Softail Fat Boy 114 18682022
    FXFBS 1868 ABS – Softail Fat Bob 114 18682022
    FLHC 1750 ABS – Softail Heritage Classic 107 17502022
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682022
    FLSB 1750 ABS – Softail Sport Glide 107 17502022
    FXBRS 1868 ABS – Softail Breakout 114 18682022
    FXLRS 1923 ABS – Softail Low Rider S 117 19232022
    FXLRST 1923 ABS – Softail Low Rider ST 117 19232022
    FXLRST 1923 ABS – Softail Low Rider ST EL Diablo 117 19232022
    FLSB 1750 ABS – Softail Sport Glide 107 17502023
    FXLRST 1923 ABS – Softail Low Rider ST 117 19232023
    FXLRS 1923 ABS – Softail Low Rider S 117 19232023
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682023
    FXFBS 1868 ABS – Softail Fat Bob 114 18682023
    FLFBS 1868 ABS – Softail Fat Boy 114 18682023
    FXBBS 1868 ABS – Softail Street Bob 114 18682023
    FXST 1750 ABS – Softail Standard 17502023
    FXBR 1923 ABS – Softail Breakout 117 19232023
    FXBR 1923 ABS – Softail Breakout 117 19232024
    FXST 1750 ABS – Softail Standard 17502024
    FXBBS 1868 ABS – Softail Street Bob 114 18682024
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682024
    FXLRS 1923 ABS – Softail Low Rider S 117 19232024
    FXLRST 1923 ABS – Softail Low Rider ST 117 19232024
    FLFBS 1868 ABS – Softail Fat Boy 114 18682024
    FLSB 1750 ABS – Softail Sport Glide 107 17502024
