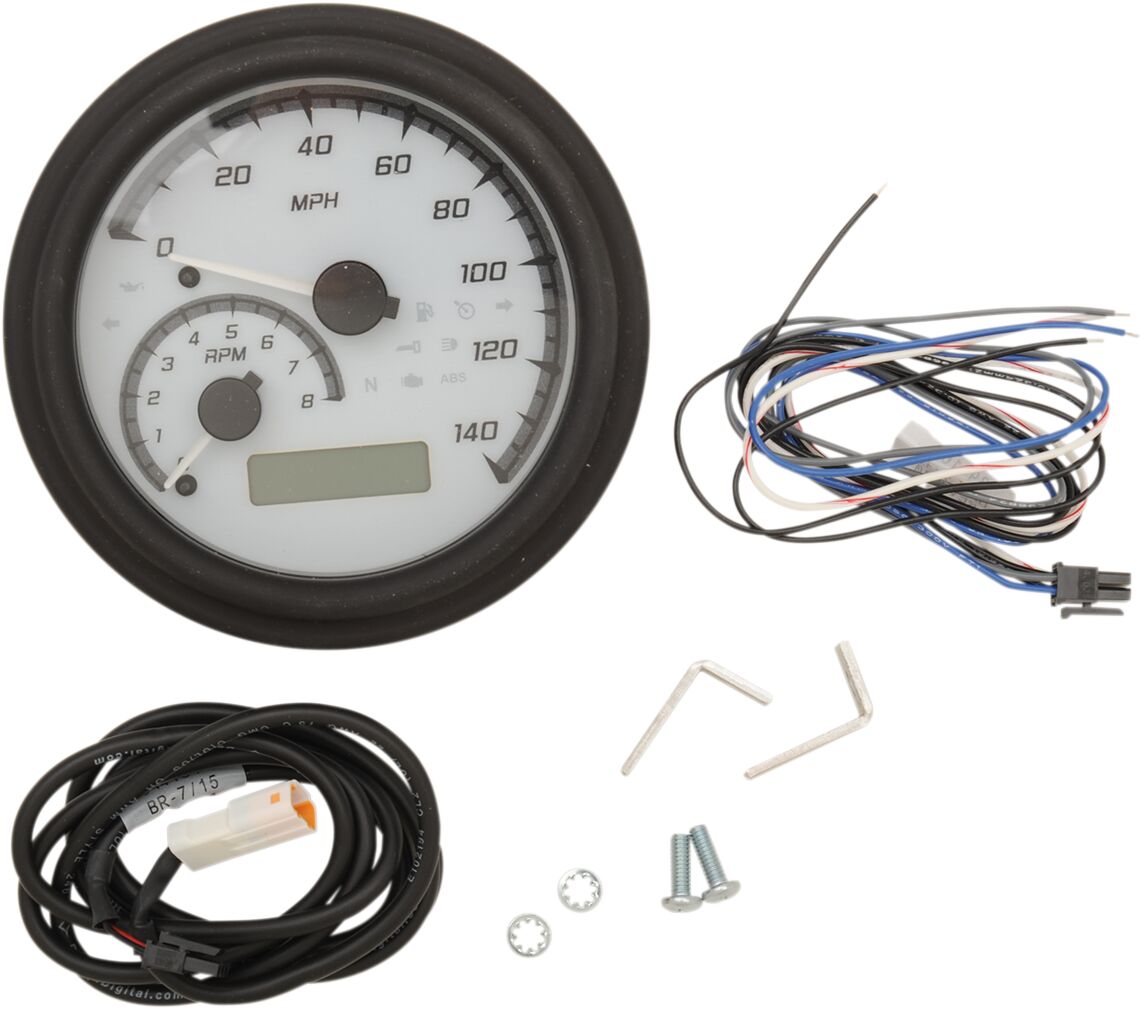

MVX Series Analog Gauge System

MVX Series Analog Gauge System

Categories: , ,

Brand:

Vendor Number: MVX-2011-WG-K

3.617,36 lei

Delivery time: 3 – 14 days

For parts that are in stock in the United States delivery time may be subject to changes due to current legislation. We recommend that you contact us before placing your order for more information about estimated delivery time.

Description

  • Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge
  • 8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout
  • Resettable miles to service with a warning (user settable countdown) and hour meter
  • Clock function (12-hour format)
  • Voltage readout with low-voltage alert
  • Cylinder head temperature sensor (if bike is equipped with factory sender unit)
  • Oil pressure warning light sold separately – see Related Products
  • Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions
  • Security system indicator
  • Automatic turn signal cancelling compatible
  • Wait to start/check engine light function
  • Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed
  • Wiring installation is cut/splice; not a direct plug-in gauge
  • Case diameter measures 4-1/4″ and bezel diameter of 4-5/8″

    • Features

    Additional information

    Style

    MVX Series
    Type

    Analog Speedometer, Analog Tachometer
    Calibration Imperial

    0 mph – 140 mph, 0 rpm – 8, 000 rpm
    Product Name

    Gauge
    Units

    Each
    Model

    2011WGK Model
    Housing Color

    Black
    Face Color

    Gray, White
    Calibration

    0 kph – 225 kph (0 mph – 140 mph), 0 rpm – 8, 000 rpm
    Features

    31 User-Selectable Colors, Backlit
    Calibration Metric

    0 kph – 225 kph, 0 rpm – 8, 000 rpm

    Compatibility

    Model – Sales nameSizeYear
    FXDF 1690 – Dyna Fat Bob 16902017
    FXDF 1690 ABS – Dyna Fat Bob 16902017
    FXDB 1690 – Dyna Street Bob 16902017
    FXDB 1690 ABS – Dyna Street Bob 16902017
    FXDLS 1800 ABS – Dyna Low Rider S 18002017
    FXDL 1690 – Dyna Low Rider 16902017
    FXDL 1690 ABS – Dyna Low Rider 16902017
    FLS 1690 – Softail Slim 16902017
    FLS 1690 ABS – Softail Slim 16902017
    FLSS 1800 ABS – Softail Slim S 18002017
    FLSTFBS 1800 ABS – Fat Boy S 18002017
    FXSB 1690 ABS – Breakout 16902017
    FLSTFB 1690 ABS – Fat Boy Lo 16902017
    FXSE 1800 ABS – Pro Street Breakout CVO 18002017
    FLHR 1750 – Road King 107 17502017
    FLHR 1750 ABS – Road King 107 17502017
    FLHRXS 1750 ABS – Road King Special 107 17502017
    FXBB 1750 ABS – Softail Street Bob 107 17502018
    FXFB 1750 ABS – Softail Fat Bob 107 17502018
    FXFBS 1868 ABS – Softail Fat Bob 114 18682018
    FXBR 1750 ABS – Softail Breakout 107 17502018
    FXBRS 1868 ABS – Softail Breakout 114 18682018
    FLSL 1750 ABS – Softail Slim 107 17502018
    FXLR 1750 ABS – Softail Low Rider 107 17502018
    FLFB 1750 ABS – Softail Fat Boy 107 17502018
    FLFBS 1868 ABS – Softail Fat Boy 114 18682018
    FLDE 1750 ABS – Softail Deluxe 107 17502018
    FLHC 1750 ABS – Softail Heritage Classic 107 17502018
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682018
    FLHR 1750 – Road King 107 17502018
    FLHR 1750 ABS – Road King 107 17502018
    FLHRXS 1750 ABS – Road King Special 107 17502018
    FLSB 1750 ABS – Softail Sport Glide 107 17502018
    FLDE 1750 ABS – Softail Deluxe 107 17502019
    FLFB 1750 ABS – Softail Fat Boy 107 17502019
    FLFBS 1868 ABS – Softail Fat Boy 114 18682019
    FLHC 1750 ABS – Softail Heritage Classic 107 17502019
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682019
    FLHR 1750 – Road King 107 17502019
    FLHR 1750 ABS – Road King 107 17502019
    FLHRXS 1868 ABS – Road King Special 114 18682019
    FLSB 1750 ABS – Softail Sport Glide 107 17502019
    FLSL 1750 ABS – Softail Slim 107 17502019
    FXBB 1750 ABS – Softail Street Bob 107 17502019
    FXBR 1750 ABS – Softail Breakout 107 17502019
    FXBRS 1868 ABS – Softail Breakout 114 18682019
    FXDR 1868 ABS – Softail King 114 18682019
    FXFB 1750 ABS – Softail Fat Bob 107 17502019
    FXFBS 1868 ABS – Softail Fat Bob 114 18682019
    FXLR 1750 ABS – Softail Low Rider 107 17502019
    FLDE 1750 ABS – Softail Deluxe 107 17502020
    FLFB 1750 ABS – Softail Fat Boy 107 17502020
    FLFBS 1868 ABS – Softail Fat Boy 114 18682020
    FLHC 1750 ABS – Softail Heritage Classic 107 17502020
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682020
    FLHR 1750 ABS – Road King 107 17502020
    FLHRXS 1868 ABS – Road King Special 114 18682020
    FLSB 1750 ABS – Softail Sport Glide 107 17502020
    FLSL 1750 ABS – Softail Slim 107 17502020
    FXBB 1750 ABS – Softail Street Bob 107 17502020
    FXBR 1750 ABS – Softail Breakout 107 17502020
    FXBRS 1868 ABS – Softail Breakout 114 18682020
    FXFBS 1868 ABS – Softail Fat Bob 114 18682020
    FXLR 1750 ABS – Softail Low Rider 107 17502020
    FLSL 1750 ABS – Softail Slim 107 17502021
    FLSTSB 1584 – Cross Bones 15842011
    FLSTFB 1584 – Fat Boy Lo 15842011
    FLSTF 1584 ABS – Fat Boy 15842011
    FLSTF 1584 – Fat Boy 15842011
    FLSTC 1584 ABS – Heritage Softail Classic 15842011
    FLSTC 1584 – Heritage Softail Classic 15842011
    FLSTN 1584 ABS – Softail Deluxe 15842011
    FLSTN 1584 – Softail Deluxe 15842011
    FLSTFB 1584 ABS – Fat Boy Lo 15842011
    FXDB 1584 – Dyna Street Bob 15842012
    FXDB 1584 ABS – Dyna Street Bob 15842012
    FXDC 1584 – Dyna Super Glide Custom 15842012
    FXDC 1584 ABS – Dyna Super Glide Custom 15842012
    FXDWG 1690 – Dyna Wide Glide 16902012
    FXDWG 1690 ABS – Dyna Wide Glide 16902012
    FXDWG 1584 ABS – Dyna Wide Glide 15842012
    FLSTF 1690 – Fat Boy 16902012
    FLSTF 1690 ABS – Fat Boy 16902012
    FLSTFB 1690 – Fat Boy Lo 16902012
    FLSTFB 1690 ABS – Fat Boy Lo 16902012
    FLSTN 1690 – Softail Deluxe 16902012
    FLSTN 1690 ABS – Softail Deluxe 16902012
    FLSTC 1690 – Heritage Softail Classic 16902012
    FLSTC 1690 ABS – Heritage Softail Classic 16902012
    FLS 1690 – Softail Slim 16902012
    FXDB 1584 – Dyna Street Bob 15842013
    FXDB 1584 ABS – Dyna Street Bob 15842013
    FXDC 1584 – Dyna Super Glide Custom 15842013
    FXDC 1584 ABS – Dyna Super Glide Custom 15842013
    FXDWG 1690 – Dyna Wide Glide 16902013
    FXDWG 1690 ABS – Dyna Wide Glide 16902013
    FLSTF 1690 – Fat Boy 16902013
    FLSTF 1690 ABS – Fat Boy 16902013
    FLSTFB 1690 – Fat Boy Lo 16902013
    FLSTFB 1690 ABS – Fat Boy Lo 16902013
    FLS 1690 – Softail Slim 16902013
    FLS 1690 ABS – Softail Slim 16902013
    FLS 1690 ABS – Softail Slim 16902012
    FLSTC 1690 – Heritage Softail Classic 16902013
    FLSTC 1690 ABS – Heritage Softail Classic 16902013
    FLSTN 1690 – Softail Deluxe 16902013
    FLSTN 1690 ABS – Softail Deluxe 16902013
    FLS 1690 – Softail Slim 16902014
    FLS 1690 ABS – Softail Slim 16902014
    FLSTC 1690 ABS – Heritage Softail Classic 16902014
    FLSTN 1690 ABS – Softail Deluxe 16902014
    FLSTF 1690 ABS – Fat Boy 16902014
    FLSTFB 1690 ABS – Fat Boy Lo 16902014
    FLSTF 1690 – Fat Boy 16902014
    FXDB 1690 – Dyna Street Bob 16902014
    FXDB 1690 ABS – Dyna Street Bob 16902014
    FXDC 1690 – Dyna Super Glide Custom 16902014
    FXDC 1690 ABS – Dyna Super Glide Custom 16902014
    FXDWG 1690 ABS – Dyna Wide Glide 16902014
    FLHR 1690 – Road King 16902014
    FLHR 1690 ABS – Road King 16902014
    FXDB 1690 – Dyna Street Bob 16902015
    FXDB 1690 ABS – Dyna Street Bob 16902015
    FXDWG 1690 ABS – Dyna Wide Glide 16902015
    FLSTF 1690 ABS – Fat Boy 16902015
    FLSTFB 1690 ABS – Fat Boy Lo 16902015
    FLSTN 1690 ABS – Softail Deluxe 16902015
    FLSTC 1690 ABS – Heritage Softail Classic 16902015
    FLS 1690 – Softail Slim 16902015
    FLS 1690 ABS – Softail Slim 16902015
    FLHR 1690 – Road King 16902015
    FLHR 1690 ABS – Road King 16902015
    FXDB 1690 – Dyna Street Bob 16902016
    FXDB 1690 ABS – Dyna Street Bob 16902016
    FXDWG 1690 ABS – Dyna Wide Glide 16902016
    FLS 1690 – Softail Slim 16902016
    FLS 1690 ABS – Softail Slim 16902016
    FLSTFB 1690 ABS – Fat Boy Lo 16902016
    FLSTC 1690 ABS – Heritage Softail Classic 16902016
    FLSTN 1690 ABS – Softail Deluxe 16902016
    FLHR 1690 ABS – Road King 16902016
    FLSS 1800 ABS – Softail Slim S 18002016
    FLSTFBS 1800 ABS – Fat Boy S 18002016
    FLSTF 1690 ABS – Fat Boy 16902016
