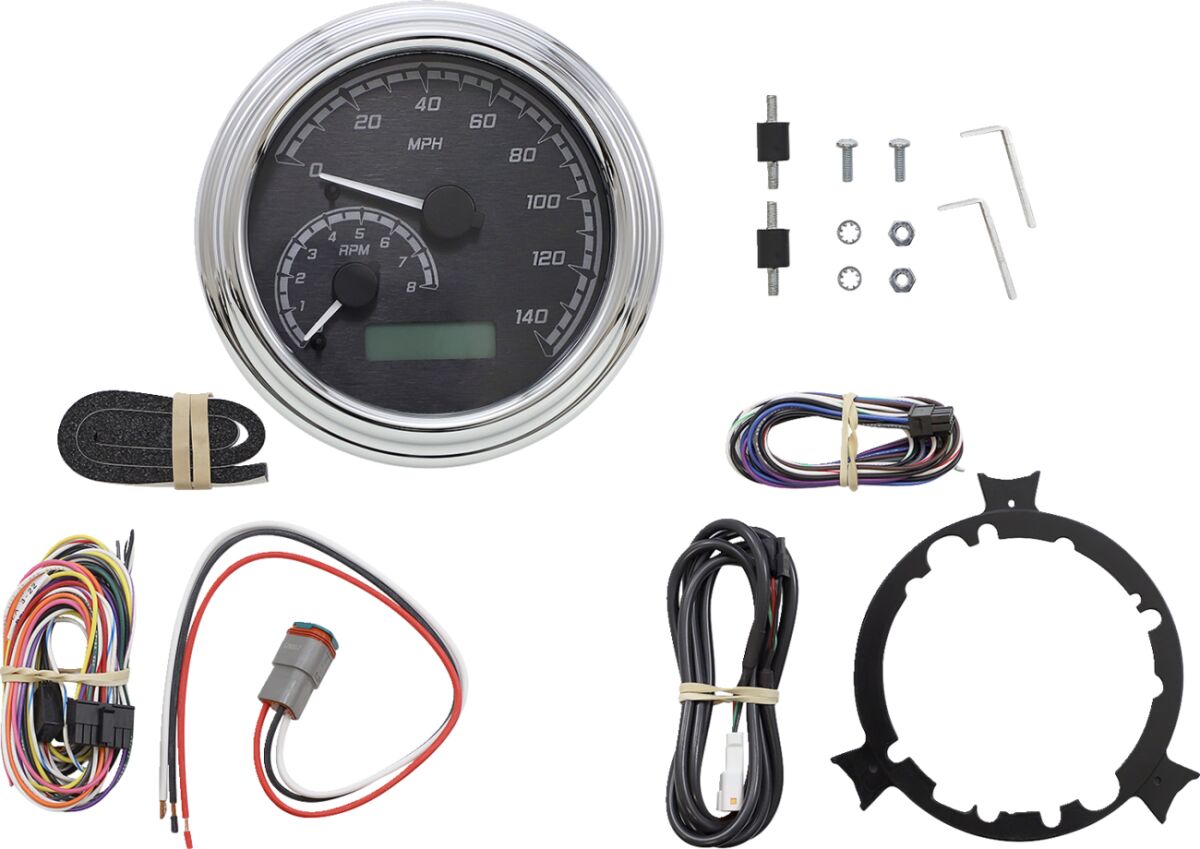

MVX Series Analog Gauge System

Value

Categories: Instrument Group, Parts, Speedometer Group

Vendor Number: MVX-2002-KG-C

3.640,72 lei

Description

Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge

8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout

Resettable miles to service with a warning (user settable countdown) and hour meter

Clock function (12-hour format)

Voltage readout with low-voltage alert

Cylinder head temperature sensor (if bike is equipped with factory sender unit)

Oil pressure warning light sold separately – see Related Products

Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions

Security system indicator

Automatic turn signal cancelling compatible

Wait to start/check engine light function

Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed

Wiring installation is cut/splice; not a direct plug-in gauge

Case diameter measures 4-1/4″ and bezel diameter of 4-5/8″

Features

Additional information

Housing Color	Black
Model	2002KGC Model
Features	7 User-Selectable Colors, Backlit
Units	Each
Calibration Metric	0 kph – 225 kph, 0 rpm – 8, 000 rpm
Face Color	Black, Gray
Calibration	0 kph – 225 kph (0 mph – 140 mph), 0 rpm – 8, 000 rpm
Calibration Imperial	0 mph – 140 mph, 0 rpm – 8, 000 rpm
Style	MVX Series
Type	Analog Speedometer, Analog Tachometer
Product Name	Gauge

Compatibility

Model – Sales name	Size	Year
FLHR 1450 – Road King	1450	2003
FLHRI 1450 EFI – Road King	1450	2003
FLHRCI 1450 EFI – Road King Classic	1450	2003
FLSTC 1450 – Heritage Softail Classic	1450	2003
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2003
FLSTF 1450 – Fat Boy	1450	2003
FLSTFI 1450 EFI – Fat Boy	1450	2003
FLSTS 1450 – Heritage Softail Springer	1450	2003
FLSTSI 1450 EFI – Heritage Softail Springer	1450	2003
FXDWG 1450 – Dyna Wide Glide	1450	2003
FXST 1450 – Softail	1450	2003
FXSTI 1450 EFI – Softail	1450	2003
FXSTB 1450 – Softail Night Train	1450	2003
FXSTBI 1450 EFI – Softail Night Train	1450	2003
FXSTD 1450 – Softail Deuce	1450	2003
FXSTDI 1450 EFI – Softail Deuce	1450	2003
FLHR 1450 – Road King	1450	2002
FLHRCI 1450 EFI – Road King Classic	1450	2002
FLSTC 1450 – Heritage Softail Classic	1450	2002
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2002
FLSTF 1450 – Fat Boy	1450	2002
FLSTFI 1450 EFI – Fat Boy	1450	2002
FLSTS 1450 – Heritage Softail Springer	1450	2002
FXDWG 1450 – Dyna Wide Glide	1450	2002
FXST 1450 – Softail	1450	2002
FXSTB 1450 – Softail Night Train	1450	2002
FXSTD 1450 – Softail Deuce	1450	2002
FXSTDI 1450 EFI – Softail Deuce	1450	2002
FLHR 1450 – Road King	1450	2001
FLHRCI 1450 EFI – Road King Classic	1450	2001
FLSTC 1450 – Heritage Softail Classic	1450	2001
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2001
FLSTF 1450 – Fat Boy	1450	2001
FLSTFI 1450 EFI – Fat Boy	1450	2001
FLSTS 1450 – Heritage Softail Springer	1450	2001
FXDWG 1450 – Dyna Wide Glide	1450	2001
FXST 1450 – Softail	1450	2001
FXSTB 1450 – Softail Night Train	1450	2001
FXSTD 1450 – Softail Deuce	1450	2001
FXSTDI 1450 EFI – Softail Deuce	1450	2001
FLHR 1450 – Road King	1450	2000
FLHRI 1450 EFI – Road King	1450	2000
FLHRCI 1450 EFI – Road King Classic	1450	2000
FLSTC 1450 – Heritage Softail Classic	1450	2000
FLSTF 1450 – Fat Boy	1450	2000
FLSTS 1450 – Heritage Softail Springer	1450	2000
FXDWG 1450 – Dyna Wide Glide	1450	2000
FXST 1450 – Softail	1450	2000
FXSTB 1450 – Softail Night Train	1450	2000
FXSTD 1450 – Softail Deuce	1450	2000
FLSTC 1340 – Heritage Softail Classic	1340	1999
FLSTF 1340 – Fat Boy	1340	1999
FLSTS 1340 – Heritage Softail Springer	1340	1999
FXSTB 1340 – Softail Night Train	1340	1999
FXST 1340 – Softail	1340	1999
FLHR 1450 – Road King	1450	1999
FLHRI 1450 EFI – Road King	1450	1999
FLHRCI 1450 EFI – Road King Classic	1450	1999
FXDWG 1450 – Dyna Wide Glide	1450	1999
FLHR 1340 – Road King	1340	1998
FLHRCI 1340 EFI – Road King Classic	1340	1998
FLSTC 1340 – Heritage Softail Classic	1340	1998
FLSTF 1340 – Fat Boy	1340	1998
FLSTS 1340 – Heritage Softail Springer	1340	1998
FXDWG 1340 – Dyna Wide Glide	1340	1998
FXSTB 1340 – Softail Night Train	1340	1998
FXSTC 1340 – Softail Custom	1340	1998
FLHR 1340 – Road King	1340	1997
FLHRI 1340 EFI – Road King	1340	1997
FLSTC 1340 – Heritage Softail Classic	1340	1997
FLSTF 1340 – Fat Boy	1340	1997
FLSTS 1340 – Heritage Softail Springer	1340	1997
FXDWG 1340 – Dyna Wide Glide	1340	1997
FXSTSB 1340 – Bad Boy	1340	1997
FXSTC 1340 – Softail Custom	1340	1997
FLHR 1340 – Road King	1340	1996
FLHRI 1340 EFI – Road King	1340	1996
FLSTC 1340 – Heritage Softail Classic	1340	1996
FLSTF 1340 – Fat Boy	1340	1996
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1996
FXDWG 1340 – Dyna Wide Glide	1340	1996
FXSTSB 1340 – Bad Boy	1340	1996
FXSTC 1340 – Softail Custom	1340	1996
