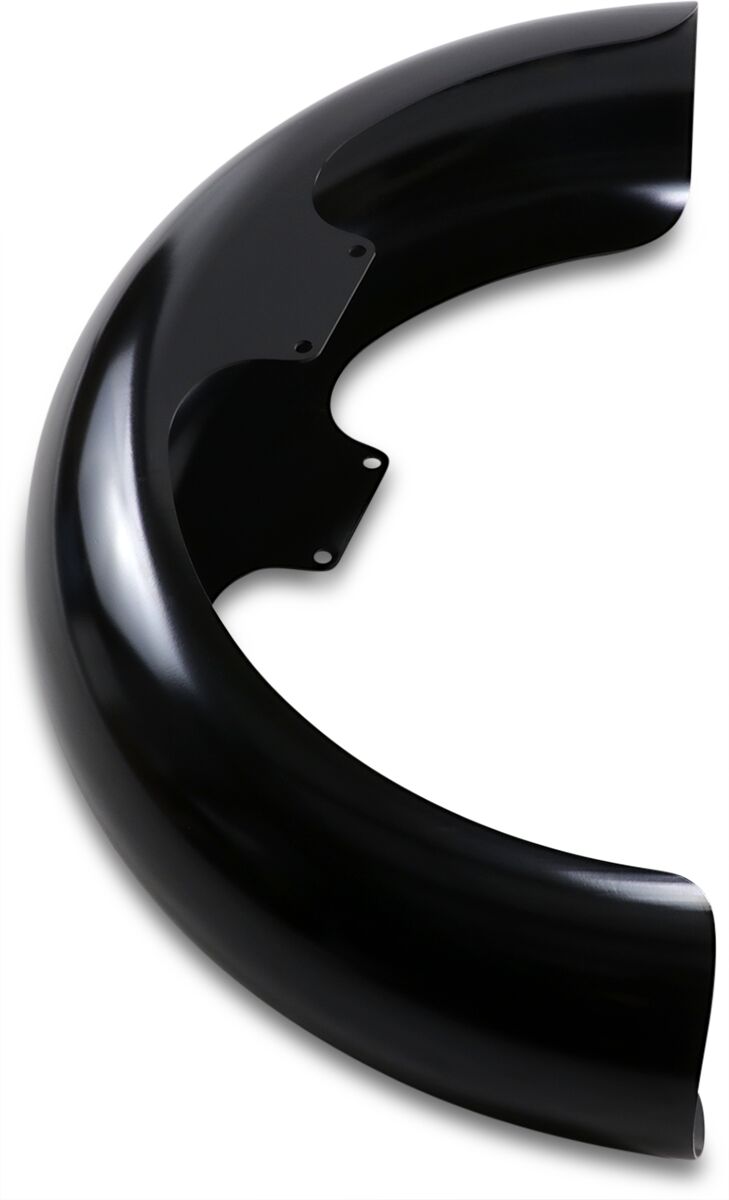

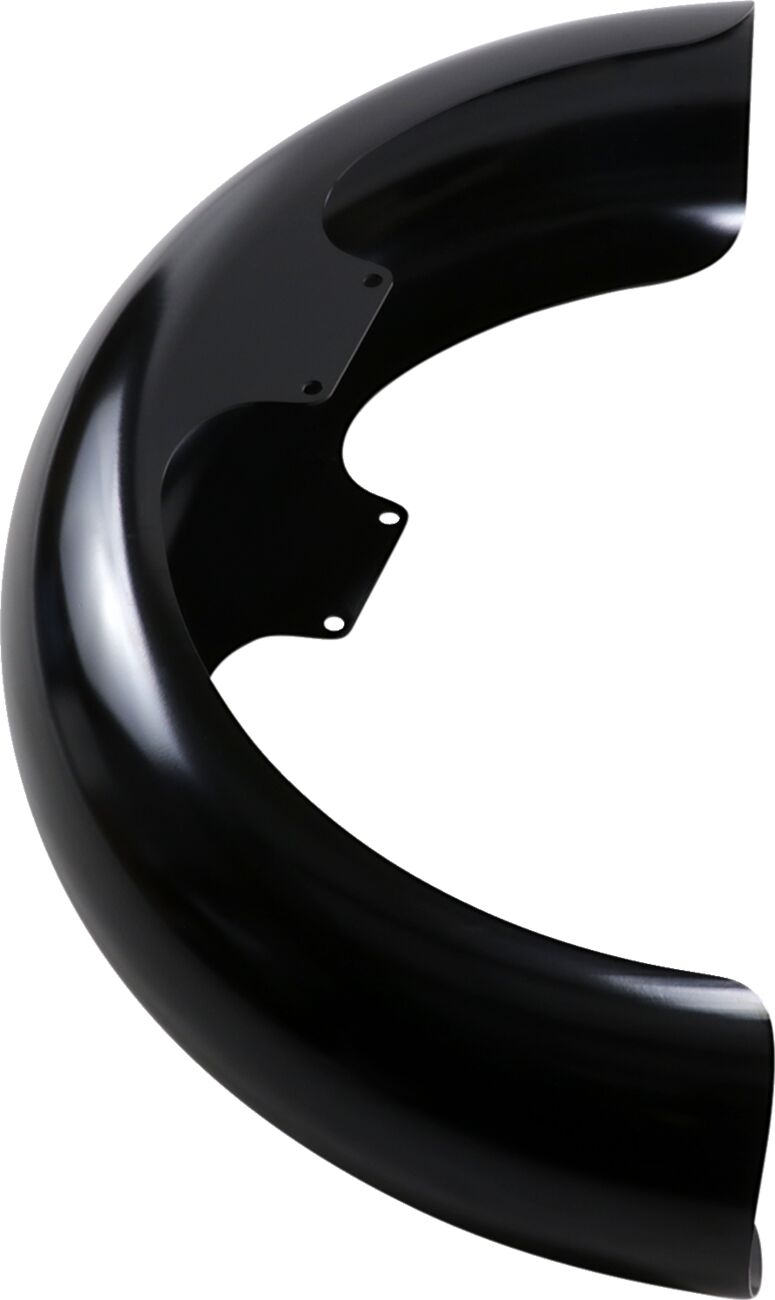

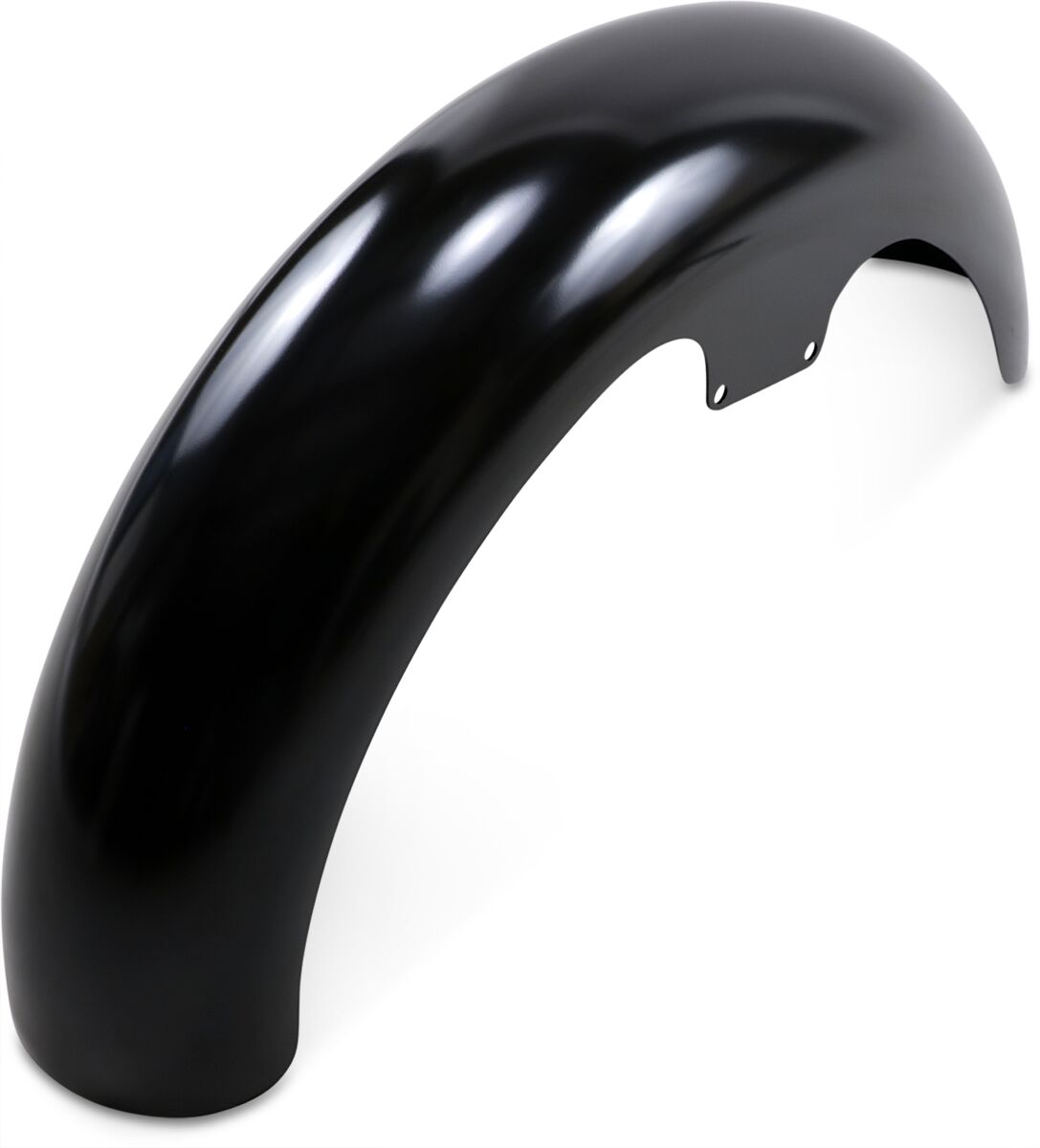

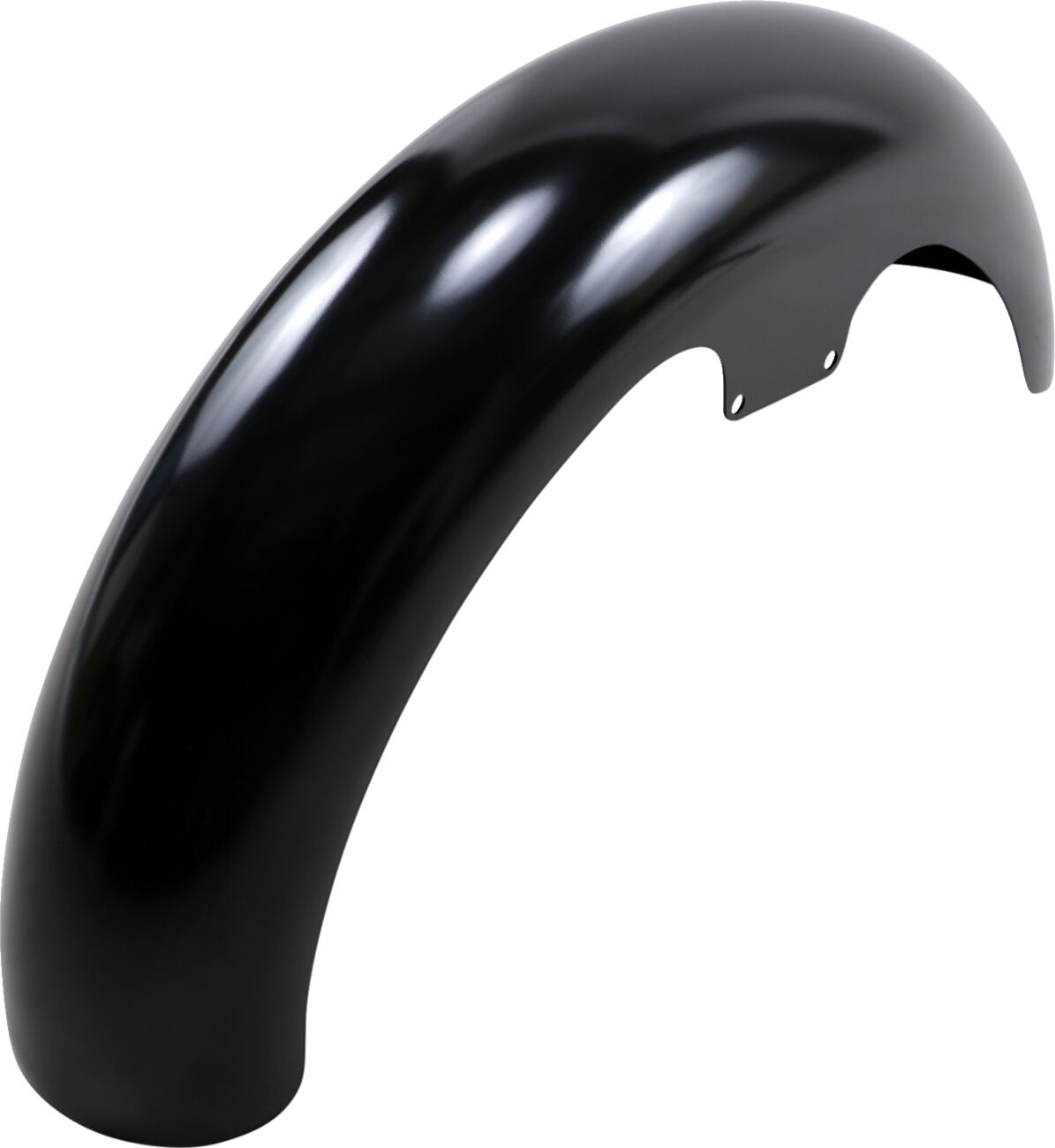

Hugger Series Front Fender

Value

Categories: Fender Group, Fenders - For Harleys, Parts

Brand: KlockWerks

Vendor Number: KW05-02-0019E

2.034,09 lei

Delivery time: 3 – 14 days

Description

Steel fender is thick enough to add rigidity to the front end by acting like a fork brace, but can still be cut or shaped enough for an even more Kustom appearance

Fenders come pre-drilled and are stamped, not spun, to ensure a consistent finish and minimize body work

E-coated to prevent rust and corrosion

Made in the USA

Installation requires the use of Klock Werks Tire Hugger mounting blocks (sold separately).

Requires mounting blocks part number 1410-0033 or 1410-0034.

Features

Additional information

Inside Mounting Width	153, 9875 mm (6, 0625")
Fender Width	158, 75 mm (6, 25")
Model	Tire Hugger
Color/Finish	Black
For Wheel Size Imperial	16.00", 17.00", 18.00", 19.00"
For Wheel Size	406, 40 mm (16, 00"), 431, 80 mm (17, 00"), 457, 20 mm (18, 00"), 482, 60 mm (19, 00")
Product Name	Fender
Mounting Position	Front
Base Finish	E-Coating
Inside Mounting Width Imperial	6.0625"
Outside Mounting Width Imperial	6.1875"
Units	Each
Contour Length	1066, 80 mm (42, 00")
For Wheel Size Metric	406.40 mm, 431.80 mm, 457.20 mm, 482.60 mm
Outside Mounting Width	157, 1625 mm (6, 1875")
Inside Mounting Width Metric	153.9875 mm
Straight Line Length	692, 00 mm (27, 25")
Height	330, 00 mm (13, 00")
Material	Steel
Outside Mounting Width Metric	157.1625 mm
Style	Wrapper

Compatibility

Model – Sales name	Size	Year
FLSTF 1690 ABS – Fat Boy	1690	2017
FLSTFBS 1800 ABS – Fat Boy S	1800	2017
FLSTC 1690 ABS – Heritage Softail Classic	1690	2017
FLSTN 1690 ABS – Softail Deluxe	1690	2017
FLSTFB 1690 ABS – Fat Boy Special	1690	2017
FLSTFB 1690 ABS – Fat Boy Lo	1690	2017
FLSTSB 1584 – Cross Bones	1584	2009
FLSTF 1584 – Fat Boy	1584	2009
FLSTC 1584 – Heritage Softail Classic	1584	2009
FLSTN 1584 – Softail Deluxe	1584	2009
FLSTC 1584 – Heritage Softail Classic	1584	2008
FLSTF 1584 – Fat Boy	1584	2008
FLSTN 1584 – Softail Deluxe	1584	2008
FLSTSB 1584 – Cross Bones	1584	2011
FLSTSB 1584 – Cross Bones	1584	2010
FLSTFB 1584 – Fat Boy Special	1584	2010
FLSTFB 1584 – Fat Boy Lo	1584	2011
FLSTFB 1584 – Fat Boy Lo	1584	2010
FLSTFB 1584 ABS – Fat Boy Special	1584	2011
FLSTF 1584 ABS – Fat Boy	1584	2011
FLSTF 1584 – Fat Boy	1584	2010
FLSTF 1584 – Fat Boy	1584	2011
FLSTC 1584 ABS – Heritage Softail Classic	1584	2011
FLSTC 1584 – Heritage Softail Classic	1584	2010
FLSTC 1584 – Heritage Softail Classic	1584	2011
FLSTN 1584 ABS – Softail Deluxe	1584	2011
FLSTN 1584 – Softail Deluxe	1584	2011
FLSTN 1584 – Softail Deluxe	1584	2010
FLSTSE2 1800 – Softail Convertible CVO	1800	2011
FLSTSE 1800 – Softail Convertible CVO	1800	2010
FLSTSB 1584 – Cross Bones	1584	2008
FLSTFB 1584 ABS – Fat Boy Lo	1584	2011
FLSTSE2 1800 ABS – Softail Convertible CVO	1800	2011
FLSTC 1584 – Heritage Softail Classic	1584	2007
FLSTF 1584 – Fat Boy	1584	2007
FLSTN 1584 – Softail Deluxe	1584	2007
FLSTC 1450 – Heritage Softail Classic	1450	2006
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2006
FLSTFI 1450 EFI – Fat Boy	1450	2006
FLSTFSE2 1690 – Fat Boy Screamin Eagle	1690	2006
FLSTF 1450 – Fat Boy	1450	2006
FLST 1450 – Heritage Softail	1450	2006
FLSTI 1450 EFI – Heritage Softail	1450	2006
FLSTN 1450 – Softail Deluxe	1450	2006
FLSTNI 1450 EFI – Softail Deluxe	1450	2006
FLSTC 1450 – Heritage Softail Classic	1450	2005
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2005
FLSTF 1450 – Fat Boy	1450	2005
FLSTFI 1450 EFI – Fat Boy	1450	2005
FLSTFI 1550 EFI – Fat Boy 15th Anniversary	1550	2005
FLSTFSE 1690 – Fat Boy Screamin Eagle	1690	2005
FLSTN 1450 – Softail Deluxe	1450	2005
FLSTNI 1450 EFI – Softail Deluxe	1450	2005
FLSTC 1450 – Heritage Softail Classic	1450	2004
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2004
FLSTF 1450 – Fat Boy	1450	2004
FLSTFI 1450 EFI – Fat Boy	1450	2004
FLSTC 1450 – Heritage Softail Classic	1450	2003
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2003
FLSTF 1450 – Fat Boy	1450	2003
FLSTFI 1450 EFI – Fat Boy	1450	2003
FLSTC 1450 – Heritage Softail Classic	1450	2002
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2002
FLSTF 1450 – Fat Boy	1450	2002
FLSTFI 1450 EFI – Fat Boy	1450	2002
FLSTC 1450 – Heritage Softail Classic	1450	2001
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2001
FLSTF 1450 – Fat Boy	1450	2001
FLSTFI 1450 EFI – Fat Boy	1450	2001
FLSTC 1450 – Heritage Softail Classic	1450	2000
FLSTF 1450 – Fat Boy	1450	2000
FLSTC 1340 – Heritage Softail Classic	1340	1999
FLSTF 1340 – Fat Boy	1340	1999
FLSTC 1340 – Heritage Softail Classic	1340	1998
FLSTF 1340 – Fat Boy	1340	1998
FLSTC 1340 – Heritage Softail Classic	1340	1997
FLSTF 1340 – Fat Boy	1340	1997
FLSTC 1340 – Heritage Softail Classic	1340	1996
FLSTF 1340 – Fat Boy	1340	1996
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1996
FLSTC 1340 – Heritage Softail Classic	1340	1995
FLSTF 1340 – Fat Boy	1340	1995
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1995
FLSTC 1340 – Heritage Softail Classic	1340	1994
FLSTF 1340 – Fat Boy	1340	1994
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1994
FLSTC 1340 – Heritage Softail Classic	1340	1993
FLSTF 1340 – Fat Boy	1340	1993
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1993
FLSTC 1340 – Heritage Softail Classic	1340	1992
FLSTF 1340 – Fat Boy	1340	1992
FLSTC 1340 – Heritage Softail Classic	1340	1991
FLSTF 1340 – Fat Boy	1340	1991
FLST 1340 – Heritage Softail	1340	1990
FLSTC 1340 – Heritage Softail Classic	1340	1990
FLSTF 1340 – Fat Boy	1340	1990
FLST 1340 – Heritage Softail	1340	1989
FLSTC 1340 – Heritage Softail Classic	1340	1989
FLST 1340 – Heritage Softail	1340	1988
FLSTC 1340 – Heritage Softail Classic	1340	1988
FLST 1340 – Heritage Softail	1340	1987
FLSTF 1690 – Fat Boy	1690	2012
FLSTF 1690 ABS – Fat Boy	1690	2012
FLSTFB 1690 – Fat Boy Lo	1690	2012
FLSTFB 1690 ABS – Fat Boy Lo	1690	2012
FLSTFB 1690 ABS – Fat Boy Special	1690	2012
FLSTN 1690 – Softail Deluxe	1690	2012
FLSTN 1690 ABS – Softail Deluxe	1690	2012
FLSTC 1690 – Heritage Softail Classic	1690	2012
FLSTC 1690 ABS – Heritage Softail Classic	1690	2012
FLSTSE3 1800 ABS – Softail Convertible CVO	1800	2012
FLSTF 1690 – Fat Boy	1690	2013
FLSTF 1690 ABS – Fat Boy	1690	2013
FLSTFB 1690 – Fat Boy Lo	1690	2013
FLSTFB 1690 ABS – Fat Boy Lo	1690	2013
FLSTFB 1690 ABS – Fat Boy Lo 110th Anniversary	1690	2013
FLSTC 1690 – Heritage Softail Classic	1690	2013
FLSTC 1690 ABS – Heritage Softail Classic	1690	2013
FLSTC 1690 ABS – Heritage Softail Classic 110th Anniversary	1690	2013
FLSTN 1690 – Softail Deluxe	1690	2013
FLSTN 1690 ABS – Softail Deluxe	1690	2013
FLSTFB 1690 ABS – Fat Boy Special	1690	2013
FLSTFB 1690 ABS – Fat Boy Special 110th Anniversary	1690	2013
FLSTC 1690 ABS – Heritage Softail Classic	1690	2014
FLSTN 1690 ABS – Softail Deluxe	1690	2014
FLSTNSE 1800 ABS – Softail Deluxe CVO	1800	2014
FLSTF 1690 ABS – Fat Boy	1690	2014
FLSTFB 1690 ABS – Fat Boy Special	1690	2014
FLSTFB 1690 ABS – Fat Boy Lo	1690	2014
FLSTF 1690 – Fat Boy	1690	2014
FLSTF 1690 ABS – Fat Boy	1690	2015
FLSTFB 1690 ABS – Fat Boy Lo	1690	2015
FLSTFB 1690 ABS – Fat Boy Special	1690	2015
FLSTN 1690 ABS – Softail Deluxe	1690	2015
FLSTNSE 1800 ABS – Softail Deluxe CVO	1800	2015
FLSTC 1690 ABS – Heritage Softail Classic	1690	2015
FLSTFB 1690 ABS – Fat Boy Lo	1690	2016
FLSTC 1690 ABS – Heritage Softail Classic	1690	2016
FLSTN 1690 ABS – Softail Deluxe	1690	2016
FLSTFBS 1800 ABS – Fat Boy S	1800	2016
FLSTF 1690 ABS – Fat Boy	1690	2016
FLSTFB 1690 ABS – Fat Boy Special	1690	2016
FLST 1340 – Heritage Softail	1340	1986
