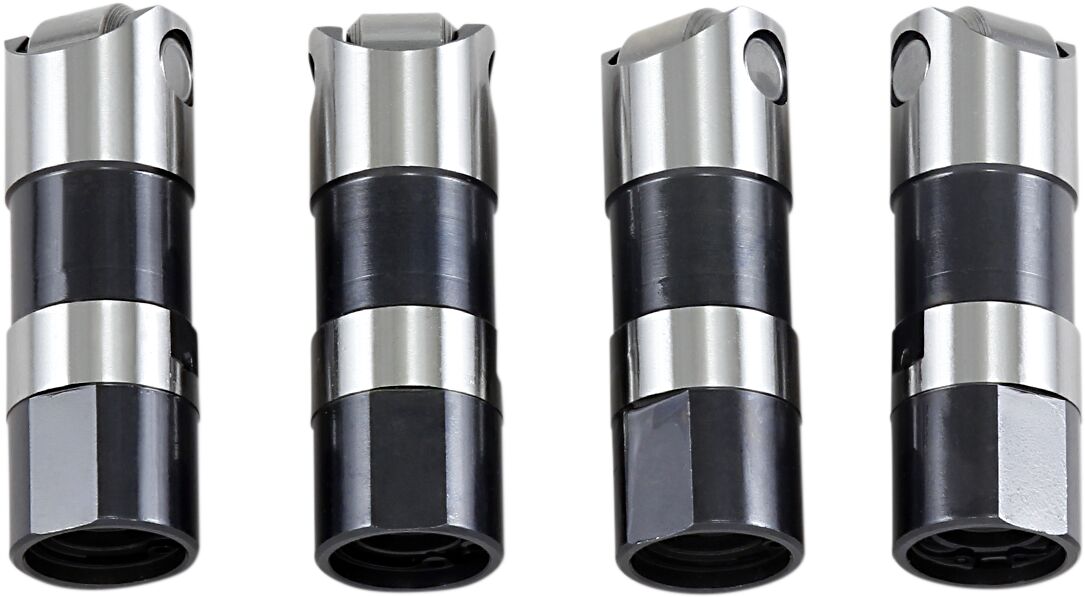

Race Series® Short-Travel Hydraulic Lifters

Value

Categories: Engine Group, Parts, Pushrods Parts

Brand: Feuling Oil Pump Corp

Vendor Number: 4052ST

1.980,34 lei

Description

New revolutionary design with 0.115″ of total travel vs. a full travel lifter with 0.200″

Increases RPM by decreasing valve float and valve-train harmonics while maintaining a quiet engine

Travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes

When oil aeration is present inside the lifter, the pushrod seat drops when the lifter rolls onto the front cam lobe ramp after squeezing the aeration down thus creating a noisy poor performing lifter

Short travel lifters should be set with 0.065″ – 0.070″ of pre-load and with the normal engine growth from heat will put the operating lifter pre load at or around half travel

Machined from a steel body and designed to exceed the needs of large lift camshafts and higher valve spring pressures with a slower bleed down rate

Compatible with either Feuling® HP+® or Race Series® oil pumps and are designed for use with both street and strip engines

Maintain proper oil flow to the top end, increase engine RPM, valve-train stability, decreasing valve float promoting maximum valve lift

Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction

High-flow disc-style quick-reacting check valve for better reaction at higher RPM

Spin-Tron dyno developed and track proven

Made in the U.S.A.

Feuling® recommends pumping up each lifter by hand prior to installation, to remove all air and provide a fully pumped up lifter. Use of a thin weight oil like ATF in a squirt can works well.

Feuling® recommends Race Series® lifters for engines running higher than 185 lbs (84 kg) valve spring seat pressure.

Feuling® recommends the use of a high volume oil pump which will result in quieter, better performing lifters.

100029, 100081, 101087, 101089, 101091, 101093, 101095, 101097, 101099, 101101, 101103, 101105, 101107, 101109, 101111, 101113, 101115, 101117, 101119, 101121, 101123, 101125, 101127, 101129, 101135, 101137, 101139, 101141, 101143, 101145, 101147, 101149, 101151, 101153, 104667, 104669, 117335, 117337, 117365, 117367, 117369, 117371, 117373, 117375, 117377, 117379, 117381, 117383, 117385, 117387, 117389, 117391, 162243, 162248, 171100, 4471, 4473, 4475, 4477, 4479, 4481, 4483, 4485, 4487, 4489, 4491, 4493, 4495, 4497, 4499, 4501, 4503, 4505, 4507, 4509, 4511, 4513, 4515, 4517, 4519, 4521, 4523, 4545, 4547, 4549, 4551, 4553, 4555, 4557, 4559, 4561, 4563, 4565, 4567, 4569, 4571, 4573, 4575, 4577, 4579, 4581, 4583, 4585, 4587, 4589, 4591, 45911, 45913, 45915, 45917, 45919, 45921, 45923, 45925, 45927, 45929, 4593, 45931, 45933, 45935, 45937, 45939, 45941, 45943, 45945, 45947, 45949, 4595, 45951, 45953, 45955, 45957, 45959, 45961, 45963, 45965, 45967, 45969, 4597, 45971, 45973, 45975, 45977, 45979, 45981, 45983, 45985, 45987, 45989, 4599, 45991, 45993, 45995, 45997, 45999, 46001, 46003, 46005, 46007, 46009, 4601, 46011, 46013, 46015, 46017, 4603, 46053, 46055, 46057, 46059, 46061, 46063, 46065, 46067, 46069, 46071, 46073, 46075, 46077, 46079, 46081, 46083, 46085, 46087, 46089, 46091, 46093, 46101, 46103, 46153, 46155, 46157, 46159, 46161, 46163, 46165, 46167, 46169, 4625, 4627, 4629, 4631, 4633, 4635, 4637, 4639, 4641, 4643, 4645, 4647, 4649, 4651, 4653, 4655, 4657, 4659, 4661, 4663, 4665, 4667, 4669, 4671, 4673, 4675, 4677, 4679, 4681, 4683, 4703, 4705, 4707, 4709, 4711, 4713, 4715, 4717, 4719, 4721, 4723, 4725, 4727, 4729, 4731, 4733, 4737, 4739, 4741, 4743, 4745, 4747, 4751, 4753, 4755, 4757, 4759, 47597, 4761, 4763, 4765, 4767, 4769, 4771, 4773, 4775, 4777, 4779, 4781, 4783, 4785, 4787, 4789, 4799, 4801, 4803, 4805, 4807, 4809, 4811, 4813, 4815, 4817, 4819, 4823, 4825, 4827, 4829, 4831, 4833, 4835, 4837, 4839, 4841, 4845, 4847, 4849, 4851, 4853, 4855, 4857, 4859, 4861, 4863, 4865, 4867, 4869, 4871, 4873, 4875, 4877, 4879, 4881, 4883, 4885, 4887, 4895, 4897, 4899, 4901, 4903, 4905, 4907, 4909, 4911, 4913, 4915, 4917, 4919, 4921, 4923, 4925, 4927, 4929, 4931, 4933, 4935, 4937, 4939, 4941, 4943, 4945, 4947, 4949, 4951, 4953, 4955, 4957, 4959, 4961, 4963, 4965, 4971, 4973, 4975, 4977, 4979, 4981, 4983, 4985, 4987, 4989, 4991, 4993, 4995, 4997, 4999, 5001, 5003, 5005, 5007, 5009, 5011, 5013, 5015, 5017, 5019, 5021, 5023, 5025, 5027, 5029, 5031, 5033, 5035, 5037, 5039, 5041, 5043, 5045, 5047, 5049, 5051, 5053, 5055, 5057, 5059, 5061, 5063, 5065, 5069, 5071, 5073, 5075, 5077, 5079, 5081, 5083, 5085, 5087, 5089, 5093, 5095, 5097, 5099, 5101, 5103, 5105, 5107, 5109, 5111, 5113, 5115, 5117, 5119, 5121, 5123, 5125, 5127, 5131, 5133, 5135, 5137, 5139, 5141, 5143, 5145, 5147, 5149, 5151, 5153, 5155, 5157, 5159, 5161, 5163, 5165, 5167, 5169, 5171, 5173, 5175, 5177, 5179, 5181, 5183, 5185, 5187, 5189, 5191, 5193, 5195, 5197, 5199, 5201, 5203, 5205, 5207, 5209, 5211, 5225, 5227, 5229, 5231, 5233, 5235, 5237, 5239, 5241, 5243, 5245, 5247, 5249, 5251, 5253, 5255, 5257, 5259, 66807, 66809, 66865, 66867, 66869, 66871, 66873, 66875, 66877, 66879, 66881, 66883, 66885, 66887, 66889, 66891, 66893, 66895, 66897, 66899, 66901, 66903, 66905, 66907, 66909, 66911, 66913, 66915, 66917, 66919, 66921, 66923, 66925, 66927, 66941, 66943, 66945, 66947, 66949, 66951, 66953, 66955, 66957, 66959, 66961, 66963, 66965, 66975, 72175, 72177, 72543, 72545, 78617, 78619, 78621, 78623, 78625, 78627, 78629, 78631, 78633, 78635, 78637, 78639, 78641, 78643, 78645, 78647, 78649, 78651, 78653, 78655, 78657, 78659, 78661, 78663, 78665, 78667, 78669, 78671, 78673, 78675, 78677, 78679, 78689, 78691, 78693, 78695, 78697, 78699, 78701, 78703, 78705, 78707, 78709, 78711, 78713, 78715, 78717, 78733, 78735, 78737, 78739, 78741, 83195, 83197, 83467, 83469, 83663, 83665, 85001, 85005, 85007, 85009, 85011, 85013, 85015, 85017, 85019, 85021, 85023, 85025, 85027, 85029, 85031, 85033, 85037, 85039, 85041, 85043, 85047, 85049, 85051, 85053, 85055, 85057, 85059, 85061, 85063, 85065, 85067, 85069, 85073, 85075, 85077, 85079, 85081, 85085, 88287, 88289, 88291, 88293, 89005, 89007, 89009, 89011, 89013, 89015, 89017, 89019, 89021, 89023, 89025, 89027, 89029, 89031, 89033, 89039, 89041, 89043, 89045, 89047, 89049, 89051, 89053, 89055, 89057, 89059, 89061, 89065, 89067, 89069, 89071, 89077, 89079, 89081, 89083, 89085, 89087, 89091, 89093, 89095, 89097, 89101, 89103, 89105, 89109, 89111, 95583, 95585, 95587, 95589, 95591, 95593, 95595, 95597, 95599, 95601, 95603, 95605, 95611, 95613, 95615, 95617, 95619, 95621, 95623, 95625, 95627, 95629, 95631, 95633, 95635, 95637, 95643, 95645, 95647, 95649, 95651, 95653, 95655, 95657, 95659, 95661, 95663, 95665, 95667, 95669, 95677, 95679, 95681, 95683, 95685, 95687, 95689, 96573, 96575, 96577, 96579, 96581, 96583, 96585, 96587, 96589, 96591, 96593, 96595, 96597, 96599, 96601, 96603, 96605, 96607, 96619, 96621, 98751

Features

Additional information

Model	Race Series®
Units	Set of 4
Application	Exhaust, Intake
Material	Steel
Product Name	Lifter
Style	Short-Travel
Size	+ 0, 8435" – 0, 844"
Type	Hydraulic

Compatibility

Model – Sales name	Size	Year
FXDLS 1800 ABS – Dyna Low Rider S	1800	2016
XL 1200 CX ABS – Roadster	1200	2016
XL 883 L – Super Low	883	2017
XL 883 L ABS – Super Low	883	2017
XL 883 N – Iron	883	2017
XL 883 N ABS – Iron	883	2017
XL 1200 C – Sportster Custom	1200	2017
XL 1200 C ABS – Sportster Custom	1200	2017
XL 1200 CX – Roadster	1200	2016
XL 1200 CX – Roadster	1200	2017
XL 1200 CX ABS – Roadster	1200	2017
XL 1200 CB ABS – Sportster Custom LE B	1200	2017
XL 1200 X ABS – Forty-Eight	1200	2017
XL 1200 X – Forty-Eight	1200	2017
XL 1200 T – Super Low	1200	2017
XL 1200 T ABS – Super Low	1200	2017
FXDF 1690 – Dyna Fat Bob	1690	2017
FXDF 1690 ABS – Dyna Fat Bob	1690	2017
FXDB 1690 – Dyna Street Bob	1690	2017
FXDB 1690 ABS – Dyna Street Bob	1690	2017
FXDLS 1800 ABS – Dyna Low Rider S	1800	2017
FXDL 1690 – Dyna Low Rider	1690	2017
FXDL 1690 ABS – Dyna Low Rider	1690	2017
FXDWG 1690 ABS – Dyna Wide Glide	1690	2017
FLS 1690 – Softail Slim	1690	2017
FLS 1690 ABS – Softail Slim	1690	2017
FLSS 1800 ABS – Softail Slim S	1800	2017
FLSTF 1690 ABS – Fat Boy	1690	2017
FLSTFBS 1800 ABS – Fat Boy S	1800	2017
FLSTC 1690 ABS – Heritage Softail Classic	1690	2017
FLSTN 1690 ABS – Softail Deluxe	1690	2017
FXSB 1690 ABS – Breakout	1690	2017
FLSTFB 1690 ABS – Fat Boy Special	1690	2017
FLSTFB 1690 ABS – Fat Boy Lo	1690	2017
FLHRI 1450 EFI – Road King	1450	2001
FLHRI 1450 EFI – Road King	1450	2002
XL 1200 L – Low	1200	2006
XR 1200 X –	1200	2013
XL 883 – Sportster	883	1999
XL 883 – Sportster	883	2000
XL 883 – Sportster	883	2001
XL 883 – Sportster	883	2002
XL 883 – Sportster	883	2003
XL 883 – Sportster	883	2004
FXST 1584 – Softail Standard	1584	2008
FXST 1584 – Softail Standard	1584	2009
FXST 1584 – Softail Standard	1584	2010
FXST 1584 – Softail Standard	1584	2011
FXST 1690 – Softail Standard	1690	2012
FXST 1690 – Softail Standard	1690	2013
FXST 1690 – Softail Standard	1690	2014
FXST 1690 – Softail Standard	1690	2015
XL 1200 CA ABS – Sportster Custom LE A	1200	2014
XL 1200 CB ABS – Sportster Custom LE B	1200	2014
FLHT 1450 – Electra Glide	1450	2006
FLHR 1584 – Road King	1584	2009
FLHR 1584 ABS – Road King	1584	2009
FLHTC 1584 – Electra Glide Classic	1584	2009
FLHTC 1584 ABS – Electra Glide Classic	1584	2009
FLHRC 1584 – Road King Classic	1584	2009
FLHRC 1584 ABS – Road King Classic	1584	2009
FLHT 1584 – Electra Glide	1584	2009
FLHT 1584 ABS – Electra Glide	1584	2009
FLHTCU 1584 – Electra Glide Ultra Classic	1584	2009
FLHTCU 1584 ABS – Electra Glide Ultra Classic	1584	2009
FLHX 1584 – Street Glide	1584	2009
FLHX 1584 ABS – Street Glide	1584	2009
FLTR 1584 – Road Glide	1584	2009
FLTR 1584 ABS – Road Glide	1584	2009
FXDB 1584 – Dyna Street Bob	1584	2009
FXDC 1584 – Dyna Super Glide Custom	1584	2009
FXDF 1584 – Dyna Fat Bob	1584	2009
FXDL 1584 – Dyna Low Rider	1584	2009
FXD 1584 – Dyna Super Glide	1584	2009
FLSTSB 1584 – Cross Bones	1584	2009
FXSTB 1584 – Softail Night Train	1584	2009
FXSTC 1584 – Softail Custom	1584	2009
FXCW 1584 – Rocker	1584	2009
FXCWC 1584 – Rocker C	1584	2009
FLSTF 1584 – Fat Boy	1584	2009
FLSTC 1584 – Heritage Softail Classic	1584	2009
FLSTN 1584 – Softail Deluxe	1584	2009
XL 883 – Sportster	883	2009
XL 883 L – Low	883	2009
XL 883 R – Roadster	883	2009
XL 883 N – Iron	883	2009
XL 883 C – Sportster Custom	883	2009
XL 1200 C – Sportster Custom	1200	2009
XL 1200 L – Low	1200	2009
XL 1200 N – Nightster	1200	2009
XR 1200 –	1200	2009
FLHR 1584 – Road King	1584	2008
FLHR 1584 ABS – Road King	1584	2008
FLHRC 1584 – Road King Classic	1584	2008
FLHRC 1584 ABS – Road King Classic	1584	2008
FLHT 1584 – Electra Glide	1584	2008
FLHT 1584 ABS – Electra Glide	1584	2008
FLHTCU 1584 ABS – Electra Glide Ultra Classic	1584	2008
FLHX 1584 – Street Glide	1584	2008
FLHX 1584 ABS – Street Glide	1584	2008
FLSTC 1584 – Heritage Softail Classic	1584	2008
FLSTF 1584 – Fat Boy	1584	2008
FLSTN 1584 – Softail Deluxe	1584	2008
FXCW 1584 – Rocker	1584	2008
FXCWC 1584 – Rocker C	1584	2008
FXD 1584 – Dyna Super Glide	1584	2008
FLHR 1584 – Road King	1584	2011
FLHR 1584 ABS – Road King	1584	2011
FLHR 1584 – Road King	1584	2010
FLHR 1584 ABS – Road King	1584	2010
FLHTC 1584 – Electra Glide Classic	1584	2011
FLHTC 1584 ABS – Electra Glide Classic	1584	2011
FLHTC 1584 – Electra Glide Classic	1584	2010
FLHTC 1584 ABS – Electra Glide Classic	1584	2010
FLHRC 1584 – Road King Classic	1584	2010
FLHRC 1584 ABS – Road King Classic	1584	2011
FXDB 1584 – Dyna Street Bob	1584	2008
FLHRC 1584 ABS – Road King Classic	1584	2010
FLHTCU 1584 – Electra Glide Ultra Classic	1584	2011
FLHTCU 1584 ABS – Electra Glide Ultra Classic	1584	2011
FLHTK 1584 ABS – Electra Glide Ultra Limited	1584	2011
FLHTK 1584 ABS – Electra Glide Ultra Limited	1584	2010
FLHTCU 1584 – Electra Glide Ultra Classic	1584	2010
FLHTCU 1584 ABS – Electra Glide Ultra Classic	1584	2010
FLHX 1584 – Street Glide	1584	2011
FLHX 1584 – Street Glide	1584	2010
FLHX 1584 ABS – Street Glide	1584	2011
FXDC 1584 – Dyna Super Glide Custom	1584	2008
FLHX 1584 ABS – Street Glide	1584	2010
FLTRU 1584 ABS – Road Glide Ultra	1584	2011
FLTRX 1584 – Road Glide Custom	1584	2011
FLTRX 1584 ABS – Road Glide Custom	1584	2011
FLTR 1584 – Road Glide	1584	2010
FLTR 1584 ABS – Road Glide	1584	2010
FXDWG 1584 – Dyna Wide Glide	1584	2011
FXDWG 1584 – Dyna Wide Glide	1584	2010
FXDB 1584 – Dyna Street Bob	1584	2011
FXDB 1584 – Dyna Street Bob	1584	2010
FXDF 1584 – Dyna Fat Bob	1584	2008
FXDC 1584 – Dyna Super Glide Custom	1584	2011
FXDC 1584 – Dyna Super Glide Custom	1584	2010
FXD 1584 – Dyna Super Glide	1584	2010
FXDF 1584 – Dyna Fat Bob	1584	2011
FXDF 1584 – Dyna Fat Bob	1584	2010
FLSTSB 1584 – Cross Bones	1584	2011
FLSTSB 1584 – Cross Bones	1584	2010
FXSTC 1584 – Softail Custom	1584	2010
FXCWC 1584 ABS – Rocker C	1584	2011
FXCWC 1584 – Rocker C	1584	2010
FXDL 1584 – Dyna Low Rider	1584	2008
FXCWC 1584 – Rocker C	1584	2011
FLSTFB 1584 – Fat Boy Special	1584	2010
FLSTFB 1584 – Fat Boy Lo	1584	2011
FLSTFB 1584 – Fat Boy Lo	1584	2010
FLSTFB 1584 ABS – Fat Boy Special	1584	2011
FLSTF 1584 ABS – Fat Boy	1584	2011
FLSTF 1584 – Fat Boy	1584	2010
FLSTF 1584 – Fat Boy	1584	2011
FLSTC 1584 ABS – Heritage Softail Classic	1584	2011
FLSTC 1584 – Heritage Softail Classic	1584	2010
FXSTB 1584 – Softail Night Train	1584	2008
FLSTC 1584 – Heritage Softail Classic	1584	2011
FLSTN 1584 ABS – Softail Deluxe	1584	2011
FLSTN 1584 – Softail Deluxe	1584	2011
FLSTN 1584 – Softail Deluxe	1584	2010
FXSTC 1584 – Softail Custom	1584	2008
XL 883 L – Super Low	883	2011
XL 883 L – Low	883	2010
XL 883 R – Roadster	883	2011
XL 883 R – Roadster	883	2010
XL 883 N – Iron	883	2011
XL 883 N – Iron	883	2010
XL 883 C – Sportster Custom	883	2010
XL 1200 X – Forty-Eight	1200	2011
XL 1200 X – Forty-Eight	1200	2010
XL 1200 C – Sportster Custom	1200	2010
XL 1200 L – Low	1200	2010
XL 1200 L – Low	1200	2011
XL 1200 N – Nightster	1200	2011
XL 1200 N – Nightster	1200	2010
XR 1200 X –	1200	2011
XR 1200 –	1200	2010
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic	1690	2011
FLHXXX 1690 – Trike Street Glide	1690	2011
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic	1690	2010
FLHXXX 1690 – Trike Street Glide	1690	2010
FLHRS 1450 – Road King Custom	1450	2004
FLHTC 1584 – Electra Glide Classic	1584	2008
FLSTSB 1584 – Cross Bones	1584	2008
FLSTFB 1584 ABS – Fat Boy Lo	1584	2011
FLHRC 1690 ABS – Road King Classic	1690	2011
FLTRX 1690 – Road Glide Custom	1690	2011
FLTRX 1690 ABS – Road Glide Custom	1690	2011
FLTRU 1690 ABS – Road Glide Ultra	1690	2011
FLHX 1690 – Street Glide	1690	2011
FLHX 1690 ABS – Street Glide	1690	2011
FLHTC 1690 ABS – Electra Glide Classic	1690	2011
FLHTK 1690 ABS – Electra Glide Ultra Limited	1690	2011
XL 883 – Sportster	883	2008
XL 883 L – Low	883	2008
XL 883 C – Sportster Custom	883	2008
XL 883 R – Roadster	883	2008
XL 1200 N – Nightster	1200	2008
XL 1200 C – Sportster Custom	1200	2008
XL 1200 L – Low	1200	2008
XL 1200 R – Roadster	1200	2008
XR 1200 –	1200	2008
FLHR 1584 – Road King	1584	2007
FLHRC 1584 – Road King Classic	1584	2007
FLHRS 1584 – Road King Custom	1584	2007
FLHT 1584 – Electra Glide	1584	2007
FLHTC 1584 – Electra Glide Classic	1584	2007
FLHTCU 1584 – Electra Glide Ultra Classic	1584	2007
FLHX 1584 – Street Glide	1584	2007
FLSTC 1584 – Heritage Softail Classic	1584	2007
FLSTF 1584 – Fat Boy	1584	2007
FLSTN 1584 – Softail Deluxe	1584	2007
FLSTSC 1584 – Softail Springer Classic	1584	2007
FLTR 1584 – Road Glide	1584	2007
FXD 1584 – Dyna Super Glide	1584	2007
FXDB 1584 – Dyna Street Bob	1584	2007
FXDC 1584 – Dyna Super Glide Custom	1584	2007
FXDL 1584 – Dyna Low Rider	1584	2007
FXDWG 1584 – Dyna Wide Glide	1584	2007
FXST 1584 – Softail	1584	2007
FXSTB 1584 – Softail Night Train	1584	2007
FXSTC 1584 – Softail Custom	1584	2007
FXSTD 1584 – Softail Deuce	1584	2007
XL 883 R – Roadster	883	2007
XL 883 – Sportster	883	2007
XL 883 C – Sportster Custom	883	2007
XL 883 L – Low	883	2007
XL 1200 C – Sportster Custom	1200	2007
XL 1200 R – Roadster	1200	2007
XL 1200 L – Low	1200	2007
XL 1200 N – Nightster	1200	2007
XL50 1200 – 50th Anniversary	1200	2007
FLHR 1450 – Road King	1450	2006
FLHRI 1450 EFI – Road King	1450	2006
FLHRS 1450 – Road King Custom	1450	2006
FLHRSI 1450 EFI – Road King Custom	1450	2006
FLHRCI 1450 EFI – Road King Classic	1450	2006
FLHTCI 1450 EFI – Electra Glide Classic	1450	2006
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2006
FLHTI 1450 EFI – Electra Glide	1450	2006
FLHX 1450 – Street Glide	1450	2006
FLHXI 1450 EFI – Street Glide	1450	2006
FLSTC 1450 – Heritage Softail Classic	1450	2006
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2006
FLSTFI 1450 EFI – Fat Boy	1450	2006
FLSTF 1450 – Fat Boy	1450	2006
FLST 1450 – Heritage Softail	1450	2006
FLSTI 1450 EFI – Heritage Softail	1450	2006
FLSTN 1450 – Softail Deluxe	1450	2006
FLSTNI 1450 EFI – Softail Deluxe	1450	2006
FLTR 1584 – Road Glide	1584	2008
FLSTSC 1450 – Softail Springer Classic	1450	2006
FLSTSCI 1450 EFI – Softail Springer Classic	1450	2006
FLTRI 1450 EFI – Road Glide	1450	2006
FXDBI 1450 EFI – Dyna Street Bob	1450	2006
FXDCI 1450 EFI – Dyna Super Glide Custom	1450	2006
FXDI 1450 EFI – Dyna Super Glide	1450	2006
FXDI35 1450 EFI – Dyna Super Glide 35th Anniversary	1450	2006
FXDLI 1450 EFI – Dyna Low Rider	1450	2006
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2006
FXSTD 1450 – Softail Deuce	1450	2006
FXSTDI 1450 EFI – Softail Deuce	1450	2006
FXST 1450 – Softail	1450	2006
FXSTI 1450 EFI – Softail	1450	2006
FXSTB 1450 – Softail Night Train	1450	2006
FXSTBI 1450 EFI – Softail Night Train	1450	2006
XL 883 – Sportster	883	2006
XL 883 L – Low	883	2006
XL 883 C – Sportster Custom	883	2006
XL 883 R – Roadster	883	2006
XL 1200 C – Sportster Custom	1200	2006
XL 1200 R – Roadster	1200	2006
FLHRCI 1450 EFI – Road King Classic	1450	2005
FLHR 1450 – Road King	1450	2005
FLHRI 1450 EFI – Road King	1450	2005
FLHRS 1450 – Road King Custom	1450	2005
FLHRSI 1450 EFI – Road King Custom	1450	2005
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2005
FLHTC 1450 – Electra Glide Classic	1450	2005
FLHTCI 1450 EFI – Electra Glide Classic	1450	2005
FLHT 1450 – Electra Glide	1450	2005
FLHTI 1450 EFI – Electra Glide	1450	2005
FLSTC 1450 – Heritage Softail Classic	1450	2005
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2005
FLSTF 1450 – Fat Boy	1450	2005
FLSTFI 1450 EFI – Fat Boy	1450	2005
FLSTFI 1550 EFI – Fat Boy 15th Anniversary	1550	2005
FLSTN 1450 – Softail Deluxe	1450	2005
FLSTNI 1450 EFI – Softail Deluxe	1450	2005
FLSTSC 1450 – Softail Springer Classic	1450	2005
FLSTSCI 1450 EFI – Softail Springer Classic	1450	2005
FLTRI 1450 EFI – Road Glide	1450	2005
FXD 1450 – Dyna Super Glide	1450	2005
FXDI 1450 EFI – Dyna Super Glide	1450	2005
FXDC 1450 – Dyna Super Glide Custom	1450	2005
FXDCI 1450 EFI – Dyna Super Glide Custom	1450	2005
FXDL 1450 – Dyna Low Rider	1450	2005
FXDLI 1450 EFI – Dyna Low Rider	1450	2005
FXDWG 1450 – Dyna Wide Glide	1450	2005
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2005
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2005
FXSTB 1450 – Softail Night Train	1450	2005
FXSTBI 1450 EFI – Softail Night Train	1450	2005
FXST 1450 – Softail	1450	2005
FXSTI 1450 EFI – Softail	1450	2005
FXSTD 1450 – Softail Deuce	1450	2005
FXSTDI 1450 EFI – Softail Deuce	1450	2005
FXSTS 1450 – Softail Springer	1450	2005
FXSTSI 1450 EFI – Softail Springer	1450	2005
XL 883 – Sportster	883	2005
XL 883 L – Low	883	2005
XL 883 C – Sportster Custom	883	2005
XL 1200 R – Roadster	1200	2005
XL 1200 C – Sportster Custom	1200	2005
FLHR 1450 – Road King	1450	2004
FLHRI 1450 EFI – Road King	1450	2004
FLHRC 1450 – Road King Classic	1450	2004
FLHRCI 1450 EFI – Road King Classic	1450	2004
FLHRSI 1450 EFI – Road King Custom	1450	2004
FLHT 1450 – Electra Glide	1450	2004
FLHTI 1450 EFI – Electra Glide	1450	2004
FLHTC 1450 – Electra Glide Classic	1450	2004
FLHTCI 1450 EFI – Electra Glide Classic	1450	2004
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2004
FLSTC 1450 – Heritage Softail Classic	1450	2004
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2004
FLSTF 1450 – Fat Boy	1450	2004
FLSTFI 1450 EFI – Fat Boy	1450	2004
FLTRI 1450 EFI – Road Glide	1450	2004
FXD 1450 – Dyna Super Glide	1450	2004
FXDI 1450 EFI – Dyna Super Glide	1450	2004
FXDL 1450 – Dyna Low Rider	1450	2004
FXDLI 1450 EFI – Dyna Low Rider	1450	2004
FXDWG 1450 – Dyna Wide Glide	1450	2004
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2004
FXDX 1450 – Dyna Super Glide Sport	1450	2004
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2004
FXST 1450 – Softail	1450	2004
FXSTI 1450 EFI – Softail	1450	2004
FXSTB 1450 – Softail Night Train	1450	2004
FXSTBI 1450 EFI – Softail Night Train	1450	2004
FXSTD 1450 – Softail Deuce	1450	2004
FXSTDI 1450 EFI – Softail Deuce	1450	2004
FXSTS 1450 – Softail Springer	1450	2004
FXSTSI 1450 EFI – Softail Springer	1450	2004
XL 883 R – Roadster	883	2004
XL 883 C – Sportster Custom	883	2004
XL 1200 R – Roadster	1200	2004
XL 1200 C – Sportster Custom	1200	2004
FLHR 1450 – Road King	1450	2003
FLHRI 1450 EFI – Road King	1450	2003
FLHRCI 1450 EFI – Road King Classic	1450	2003
FLHT 1450 – Electra Glide	1450	2003
FLHTC 1450 – Electra Glide Classic	1450	2003
FLHTCI 1450 EFI – Electra Glide Classic	1450	2003
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2003
FLSTC 1450 – Heritage Softail Classic	1450	2003
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2003
FLSTF 1450 – Fat Boy	1450	2003
FLSTFI 1450 EFI – Fat Boy	1450	2003
FLSTS 1450 – Heritage Softail Springer	1450	2003
FLSTSI 1450 EFI – Heritage Softail Springer	1450	2003
FLTRI 1450 EFI – Road Glide	1450	2003
FXD 1450 – Dyna Super Glide	1450	2003
FXDL 1450 – Dyna Low Rider	1450	2003
FXDWG 1450 – Dyna Wide Glide	1450	2003
FXDX 1450 – Dyna Super Glide Sport	1450	2003
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2003
FXST 1450 – Softail	1450	2003
FXSTI 1450 EFI – Softail	1450	2003
FXSTB 1450 – Softail Night Train	1450	2003
FXSTBI 1450 EFI – Softail Night Train	1450	2003
FXSTD 1450 – Softail Deuce	1450	2003
FXSTDI 1450 EFI – Softail Deuce	1450	2003
FXSTS 1450 – Softail Springer	1450	2003
FXSTSI 1450 EFI – Softail Springer	1450	2003
XLH 883 – Sportster	883	2003
XLH 883 – Sportster Hugger	883	2003
XL 883 R – Roadster	883	2003
XL 883 C – Sportster 53 Custom	883	2003
XL 1200 S – Sport	1200	2003
XL 1200 C – Sportster Custom	1200	2003
XLH 1200 – Sportster	1200	2003
FLHR 1450 – Road King	1450	2002
FLHRCI 1450 EFI – Road King Classic	1450	2002
FLHT 1450 – Electra Glide	1450	2002
FLHTC 1450 – Electra Glide Classic	1450	2002
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2002
FLSTC 1450 – Heritage Softail Classic	1450	2002
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2002
FLSTF 1450 – Fat Boy	1450	2002
FLSTFI 1450 EFI – Fat Boy	1450	2002
FLSTS 1450 – Heritage Softail Springer	1450	2002
FLTRI 1450 EFI – Road Glide	1450	2002
FXD 1450 – Dyna Super Glide	1450	2002
FXDL 1450 – Dyna Low Rider	1450	2002
FXDWG 1450 – Dyna Wide Glide	1450	2002
FXDX 1450 – Dyna Super Glide Sport	1450	2002
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2002
FXST 1450 – Softail	1450	2002
FXSTB 1450 – Softail Night Train	1450	2002
FXSTD 1450 – Softail Deuce	1450	2002
FXSTDI 1450 EFI – Softail Deuce	1450	2002
FXSTS 1450 – Softail Springer	1450	2002
XLH 883 – Sportster	883	2002
XLH 883 – Sportster Hugger	883	2002
XL 883 C – Sportster 53 Custom	883	2002
XL 883 R – Roadster	883	2002
XL 1200 S – Sport	1200	2002
XL 1200 C – Sportster Custom	1200	2002
XLH 1200 – Sportster	1200	2002
FLHR 1450 – Road King	1450	2001
FLHRCI 1450 EFI – Road King Classic	1450	2001
FLHT 1450 – Electra Glide	1450	2001
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2001
FLSTC 1450 – Heritage Softail Classic	1450	2001
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2001
FLSTF 1450 – Fat Boy	1450	2001
FLSTFI 1450 EFI – Fat Boy	1450	2001
FLSTS 1450 – Heritage Softail Springer	1450	2001
FLTR 1450 – Road Glide	1450	2001
FLTRI 1450 EFI – Road Glide	1450	2001
FXD 1450 – Dyna Super Glide	1450	2001
FXDL 1450 – Dyna Low Rider	1450	2001
FXDWG 1450 – Dyna Wide Glide	1450	2001
FXDX 1450 – Dyna Super Glide Sport	1450	2001
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2001
FXST 1450 – Softail	1450	2001
FXSTB 1450 – Softail Night Train	1450	2001
FXSTD 1450 – Softail Deuce	1450	2001
FXSTDI 1450 EFI – Softail Deuce	1450	2001
FXSTS 1450 – Softail Springer	1450	2001
XL 883 C – Sportster 53 Custom	883	2001
XLH 883 – Sportster	883	2001
XLH 883 – Sportster Hugger	883	2001
XL 1200 S – Sport	1200	2001
XL 1200 C – Sportster Custom	1200	2001
XLH 1200 – Sportster	1200	2001
FLHR 1450 – Road King	1450	2000
FLHRI 1450 EFI – Road King	1450	2000
FLHRCI 1450 EFI – Road King Classic	1450	2000
FLHT 1450 – Electra Glide	1450	2000
FLHTCI 1450 EFI – Electra Glide Classic	1450	2000
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2000
FLSTC 1450 – Heritage Softail Classic	1450	2000
FLSTF 1450 – Fat Boy	1450	2000
FLSTS 1450 – Heritage Softail Springer	1450	2000
FLTR 1450 – Road Glide	1450	2000
FLTRI 1450 EFI – Road Glide	1450	2000
FXD 1450 – Dyna Super Glide	1450	2000
FXDL 1450 – Dyna Low Rider	1450	2000
FXDWG 1450 – Dyna Wide Glide	1450	2000
FXDX 1450 – Dyna Super Glide Sport	1450	2000
FXST 1450 – Softail	1450	2000
FXSTB 1450 – Softail Night Train	1450	2000
FXSTD 1450 – Softail Deuce	1450	2000
FXSTS 1450 – Softail Springer	1450	2000
XL 883 C – Sportster 53 Custom	883	2000
XLH 883 – Sportster	883	2000
XLH 883 – Sportster Hugger	883	2000
XL 1200 S – Sport	1200	2000
XL 1200 C – Sportster Custom	1200	2000
XLH 1200 – Sportster	1200	2000
FLHR 1450 – Road King	1450	1999
FLHRI 1450 EFI – Road King	1450	1999
FLHRCI 1450 EFI – Road King Classic	1450	1999
FLHT 1450 – Electra Glide	1450	1999
FLHTCI 1450 EFI – Electra Glide Classic	1450	1999
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	1999
FLTR 1450 – Road Glide	1450	1999
FLTRI 1450 EFI – Road Glide	1450	1999
FXD 1450 – Dyna Super Glide	1450	1999
FXDL 1450 – Dyna Low Rider	1450	1999
FXDWG 1450 – Dyna Wide Glide	1450	1999
FXDX 1450 – Dyna Super Glide Sport	1450	1999
XL 883 C – Sportster 53 Custom	883	1999
XLH 883 – Sportster	883	1999
XLH 883 – Sportster Hugger	883	1999
XL 1200 C – Sportster Custom	1200	1999
XL 1200 S – Sport	1200	1999
XLH 1200 – Sportster	1200	1999
FXS 1584 ABS – Blackline	1584	2011
FXS 1584 – Blackline	1584	2011
XL 883 L – Super Low	883	2012
XL 883 N – Iron	883	2012
XL 883 R – Roadster	883	2012
XL 1200 C – Sportster Custom	1200	2011
XL 1200 C – Sportster Custom	1200	2012
XL 1200 N – Nightster	1200	2012
XL 1200 X – Forty-Eight	1200	2012
XR 1200 X –	1200	2012
FXDB 1584 – Dyna Street Bob	1584	2012
FXDB 1584 ABS – Dyna Street Bob	1584	2012
FXDC 1584 – Dyna Super Glide Custom	1584	2012
FXDC 1584 ABS – Dyna Super Glide Custom	1584	2012
FXDF 1690 – Dyna Fat Bob	1690	2012
FXDF 1690 ABS – Dyna Fat Bob	1690	2012
FXDF 1584 ABS – Dyna Fat Bob	1584	2012
FXDWG 1690 – Dyna Wide Glide	1690	2012
FXDWG 1690 ABS – Dyna Wide Glide	1690	2012
FXDWG 1584 ABS – Dyna Wide Glide	1584	2012
FLD 1690 – Dyna Switchback	1690	2012
FLD 1690 ABS – Dyna Switchback	1690	2012
FXS 1690 – Blackline	1690	2012
FXS 1690 ABS – Blackline	1690	2012
FXS 1584 ABS – Blackline	1584	2012
FLSTF 1690 – Fat Boy	1690	2012
FLSTF 1690 ABS – Fat Boy	1690	2012
FLSTFB 1690 – Fat Boy Lo	1690	2012
FLSTFB 1690 ABS – Fat Boy Lo	1690	2012
FLSTFB 1690 ABS – Fat Boy Special	1690	2012
FLSTN 1690 – Softail Deluxe	1690	2012
FLSTN 1690 ABS – Softail Deluxe	1690	2012
FLSTC 1690 – Heritage Softail Classic	1690	2012
FLSTC 1690 ABS – Heritage Softail Classic	1690	2012
FLHR 1690 – Road King	1690	2012
FLHR 1690 ABS – Road King	1690	2012
FLHRC 1690 ABS – Road King Classic	1690	2012
FLHX 1690 – Street Glide	1690	2012
FLHX 1690 ABS – Street Glide	1690	2012
FLTRX 1690 – Road Glide Custom	1690	2012
FLTRX 1690 ABS – Road Glide Custom	1690	2012
FLTRU 1690 ABS – Road Glide Ultra	1690	2012
FLHTC 1690 – Electra Glide Classic	1690	2012
FLHTC 1690 ABS – Electra Glide Classic	1690	2012
FLHTCU 1690 – Electra Glide Ultra Classic	1690	2012
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2012
FLHTK 1690 ABS – Electra Glide Ultra Limited	1690	2012
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic	1690	2012
FXDWG2 1450 – Dyna Wide Glide Limited Edition	1450	2001
FXDWG3 1450 – Dyna Wide Glide Limited Edition	1450	2002
XL 1200 V – Seventy-Two	1200	2012
FLS 1690 – Softail Slim	1690	2012
XL 883 L – Super Low	883	2013
XL 883 N – Iron	883	2013
XL 1200 C – Sportster Custom	1200	2013
XL 1200 C – Sportster Custom 110th Anniversary	1200	2013
XL 1200 V – Seventy-Two	1200	2013
XL 1200 X – Forty-Eight	1200	2013
FXDB 1584 – Dyna Street Bob	1584	2013
FXDB 1584 ABS – Dyna Street Bob	1584	2013
FXDC 1584 – Dyna Super Glide Custom	1584	2013
FXDC 1584 ABS – Dyna Super Glide Custom	1584	2013
FXDC 1584 ABS – Dyna Super Glide Custom 110th Anniversary	1584	2013
FXDWG 1690 – Dyna Wide Glide	1690	2013
FXDWG 1690 ABS – Dyna Wide Glide	1690	2013
FXDF 1690 – Dyna Fat Bob	1690	2013
FXDF 1690 ABS – Dyna Fat Bob	1690	2013
FLD 1690 – Dyna Switchback	1690	2013
FLD 1690 ABS – Dyna Switchback	1690	2013
FXS 1690 – Blackline	1690	2013
FXS 1690 ABS – Blackline	1690	2013
FLSTF 1690 – Fat Boy	1690	2013
FLSTF 1690 ABS – Fat Boy	1690	2013
FLSTFB 1690 – Fat Boy Lo	1690	2013
FLSTFB 1690 ABS – Fat Boy Lo	1690	2013
FLSTFB 1690 ABS – Fat Boy Lo 110th Anniversary	1690	2013
FLS 1690 – Softail Slim	1690	2013
FLS 1690 ABS – Softail Slim	1690	2013
FLS 1690 ABS – Softail Slim	1690	2012
FLSTC 1690 – Heritage Softail Classic	1690	2013
FLSTC 1690 ABS – Heritage Softail Classic	1690	2013
FLSTC 1690 ABS – Heritage Softail Classic 110th Anniversary	1690	2013
FLSTN 1690 – Softail Deluxe	1690	2013
FLSTN 1690 ABS – Softail Deluxe	1690	2013
FLHR 1690 – Road King	1690	2013
FLHR 1690 ABS – Road King	1690	2013
FLHR 1690 ABS – Road King 110th Anniversary	1690	2013
FLHRC 1690 ABS – Road King Classic	1690	2013
FLHX 1690 – Street Glide	1690	2013
FLHX 1690 ABS – Street Glide	1690	2013
FLTRX 1690 – Road Glide Custom	1690	2013
FLTRX 1690 ABS – Road Glide Custom	1690	2013
FLTRU 1690 ABS – Road Glide Ultra	1690	2013
FLHTC 1690 – Electra Glide Classic	1690	2013
FLHTC 1690 ABS – Electra Glide Classic	1690	2013
FLHTCU 1690 – Electra Glide Ultra Classic	1690	2013
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2013
FLHTK 1690 ABS – Electra Glide Ultra Limited	1690	2013
FLHTK 1690 ABS – Electra Glide Ultra Limited 110th Anniversary	1690	2013
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic	1690	2013
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic 110th Anniversary	1690	2013
XL 883 R – Roadster	883	2013
FLSTFB 1690 ABS – Fat Boy Special	1690	2013
FLSTFB 1690 ABS – Fat Boy Special 110th Anniversary	1690	2013
FXSB 1690 – Breakout	1690	2013
FXSB 1690 ABS – Breakout	1690	2013
FLTRX 1584 – Road Glide Custom	1584	2010
FLTRX 1584 ABS – Road Glide Custom	1584	2010
FXSTS 1450 – Softail Springer	1450	2006
FXSTSI 1450 EFI – Softail Springer	1450	2006
FXDWG 1584 – Dyna Wide Glide 105th Anniversary	1584	2008
XL 883 L ABS – Super Low	883	2014
XL 883 L – Super Low	883	2014
XL 883 N – Iron	883	2014
XL 883 N ABS – Iron	883	2014
XL 1200 C ABS – Sportster Custom	1200	2014
XL 1200 C – Sportster Custom	1200	2014
XL 1200 V ABS – Seventy-Two	1200	2014
XL 1200 V – Seventy-Two	1200	2014
XL 1200 X ABS – Forty-Eight	1200	2014
XL 1200 X – Forty-Eight	1200	2014
XL 883 R ABS – Roadster	883	2014
FLS 1690 – Softail Slim	1690	2014
FLS 1690 ABS – Softail Slim	1690	2014
FLSTC 1690 ABS – Heritage Softail Classic	1690	2014
FLSTN 1690 ABS – Softail Deluxe	1690	2014
FLSTF 1690 ABS – Fat Boy	1690	2014
FLSTFB 1690 ABS – Fat Boy Special	1690	2014
FLSTFB 1690 ABS – Fat Boy Lo	1690	2014
FLSTF 1690 – Fat Boy	1690	2014
FXSB 1690 ABS – Breakout	1690	2014
FXDB 1690 – Dyna Street Bob	1690	2014
FXDB 1690 ABS – Dyna Street Bob	1690	2014
FXDC 1690 – Dyna Super Glide Custom	1690	2014
FXDC 1690 ABS – Dyna Super Glide Custom	1690	2014
FXDWG 1690 ABS – Dyna Wide Glide	1690	2014
FXDF 1690 – Dyna Fat Bob	1690	2014
FXDF 1690 ABS – Dyna Fat Bob	1690	2014
FLD 1690 ABS – Dyna Switchback	1690	2014
FLHR 1690 – Road King	1690	2014
FLHR 1690 ABS – Road King	1690	2014
FLHRC 1690 ABS – Road King Classic	1690	2014
FLHX 1690 – Street Glide	1690	2014
FLHX 1690 ABS – Street Glide	1690	2014
FLHXS 1690 ABS – Street Glide Special	1690	2014
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2014
FLHTK 1690 ABS – Electra Glide Ultra Limited	1690	2014
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic	1690	2014
XL 1200 T ABS – Super Low	1200	2014
XL 1200 T – Super Low	1200	2014
FXDL 1690 – Dyna Low Rider	1690	2014
FXDL 1690 ABS – Dyna Low Rider	1690	2014
XL 883 L – Super Low	883	2015
XL 883 L ABS – Super Low	883	2015
XL 883 N – Iron	883	2015
XL 883 N ABS – Iron	883	2015
XL 883 R ABS – Roadster	883	2015
XL 1200 C – Sportster Custom	1200	2015
XL 1200 C ABS – Sportster Custom	1200	2015
XL 1200 CA ABS – Sportster Custom LE A	1200	2015
XL 1200 CB ABS – Sportster Custom LE B	1200	2015
XL 1200 T – Super Low	1200	2015
XL 1200 T ABS – Super Low	1200	2015
XL 1200 X ABS – Forty-Eight	1200	2015
XL 1200 X – Forty-Eight	1200	2015
XL 1200 V – Seventy-Two	1200	2015
XL 1200 V ABS – Seventy-Two	1200	2015
FXDB 1690 – Dyna Street Bob	1690	2015
FXDB 1690 ABS – Dyna Street Bob	1690	2015
FXDL 1690 – Dyna Low Rider	1690	2015
FXDL 1690 ABS – Dyna Low Rider	1690	2015
FXDWG 1690 ABS – Dyna Wide Glide	1690	2015
FXDF 1690 – Dyna Fat Bob	1690	2015
FXDF 1690 ABS – Dyna Fat Bob	1690	2015
FLD 1690 ABS – Dyna Switchback	1690	2015
FLSTF 1690 ABS – Fat Boy	1690	2015
FLSTFB 1690 ABS – Fat Boy Lo	1690	2015
FLSTFB 1690 ABS – Fat Boy Special	1690	2015
FLSTN 1690 ABS – Softail Deluxe	1690	2015
FLSTC 1690 ABS – Heritage Softail Classic	1690	2015
FLS 1690 – Softail Slim	1690	2015
FLS 1690 ABS – Softail Slim	1690	2015
FXSB 1690 ABS – Breakout	1690	2015
FLHRC 1690 ABS – Road King Classic	1690	2015
FLHR 1690 – Road King	1690	2015
FLHR 1690 ABS – Road King	1690	2015
FLHX 1690 – Street Glide	1690	2015
FLHX 1690 ABS – Street Glide	1690	2015
FLHXS 1690 ABS – Street Glide Special	1690	2015
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2015
FLHTCUL 1690 ABS – Electra Glide Ultra Classic Low	1690	2015
FLHTK 1690 ABS – Electra Glide Ultra Limited	1690	2015
FLHTKL 1690 ABS – Electra Glide Ultra Limited Low	1690	2015
FLTRX 1690 – Road Glide	1690	2015
FLTRX 1690 ABS – Road Glide	1690	2015
FLTRXS 1690 ABS – Road Glide Special	1690	2015
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic	1690	2015
FLRT 1690 – Freewheeler	1690	2015
XL 883 L – Super Low	883	2016
XL 883 L ABS – Super Low	883	2016
XL 883 N – Iron	883	2016
XL 883 N ABS – Iron	883	2016
XL 1200 C – Sportster Custom	1200	2016
XL 1200 C ABS – Sportster Custom	1200	2016
XL 1200 V – Seventy-Two	1200	2016
XL 1200 V ABS – Seventy-Two	1200	2016
XL 1200 X ABS – Forty-Eight	1200	2016
XL 1200 X – Forty-Eight	1200	2016
XL 1200 T – Super Low	1200	2016
XL 1200 T ABS – Super Low	1200	2016
FXDB 1690 – Dyna Street Bob	1690	2016
FXDB 1690 ABS – Dyna Street Bob	1690	2016
FXDL 1690 – Dyna Low Rider	1690	2016
FXDL 1690 ABS – Dyna Low Rider	1690	2016
FXDF 1690 – Dyna Fat Bob	1690	2016
FXDF 1690 ABS – Dyna Fat Bob	1690	2016
FXDWG 1690 ABS – Dyna Wide Glide	1690	2016
FLD 1690 ABS – Dyna Switchback	1690	2016
FLS 1690 – Softail Slim	1690	2016
FLS 1690 ABS – Softail Slim	1690	2016
FLSTFB 1690 ABS – Fat Boy Lo	1690	2016
FLSTC 1690 ABS – Heritage Softail Classic	1690	2016
FLSTN 1690 ABS – Softail Deluxe	1690	2016
FXSB 1690 ABS – Breakout	1690	2016
FLHR 1690 ABS – Road King	1690	2016
FLHX 1690 – Street Glide	1690	2016
FLHX 1690 ABS – Street Glide	1690	2016
FLHXS 1690 ABS – Street Glide Special	1690	2016
FLTRX 1690 – Road Glide	1690	2016
FLTRX 1690 ABS – Road Glide	1690	2016
FLTRXS 1690 ABS – Road Glide Special	1690	2016
FLHTCU 1690 ABS – Electra Glide Ultra Classic	1690	2016
FLHTCUL 1690 ABS – Electra Glide Ultra Classic Low	1690	2016
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic	1690	2016
FLTRU 1690 ABS – Road Glide Ultra	1690	2016
FLHTK 1690 ABS – Electra Glide Ultra Limited	1690	2016
FLHTKL 1690 ABS – Electra Glide Ultra Limited Low	1690	2016
FLRT 1690 – Freewheeler	1690	2016
FLSS 1800 ABS – Softail Slim S	1800	2016
FLSTFBS 1800 ABS – Fat Boy S	1800	2016
FLSTF 1690 ABS – Fat Boy	1690	2016
XL 1200 CA ABS – Sportster Custom LE A	1200	2016
XL 1200 CB ABS – Sportster Custom LE B	1200	2016
FLSTFB 1690 ABS – Fat Boy Special	1690	2016
FLHRC 1690 ABS – Road King Classic	1690	2016
FXDBP 1690 – Dyna Street Bob Factory Custom	1690	2013
FXDBP 1690 ABS – Dyna Street Bob Factory Custom	1690	2013
FXDBA 1690 – Dyna Street Bob Limited	1690	2013
FXDBA 1690 ABS – Dyna Street Bob Limited	1690	2013
FXDBA 1584 – Dyna Street Bob Limited	1584	2013
FXDBA 1584 ABS – Dyna Street Bob Limited	1584	2013
FXDBP 1690 – Dyna Street Bob Factory Custom	1690	2014
FXDBP 1690 ABS – Dyna Street Bob Factory Custom	1690	2014
FXDBP 1690 – Dyna Street Bob Factory Custom	1690	2015
FXDBP 1690 ABS – Dyna Street Bob Factory Custom	1690	2015
FXDBP 1690 – Dyna Street Bob Factory Custom	1690	2016
FXDBP 1690 ABS – Dyna Street Bob Factory Custom	1690	2016
FXDBB 1690 – Dyna Street Bob Special	1690	2014
FXDBB 1690 ABS – Dyna Street Bob Special	1690	2014
FXDBB 1690 – Dyna Street Bob Special	1690	2015
FXDBB 1690 ABS – Dyna Street Bob Special	1690	2015
FXDBC 1690 – Dyna Street Bob Limited	1690	2016
FXDBC 1690 ABS – Dyna Street Bob Limited	1690	2016
FLHT 1584 – Electra Glide	1584	2010
FLHT 1584 ABS – Electra Glide	1584	2010
FLHTCUTG 1690 – Trike Tri Glide Ultra Classic	1690	2009

Race Series® Short-Travel Hydraulic Lifters

Description

Features

Additional information

Compatibility

Shop

USEFUL LINKS

CONTACT

FOLLOW US

Terms and Conditions, Warranty
