Race Series® Oil System Pack

Value

Categories: Engine Group, Oil/Water Pumps & Parts, Parts

Vendor Number: 7077ST

7.782,00 lei

Delivery time: 3 – 14 days

For parts that are in stock in the United States delivery time may be subject to changes due to current legislation. We recommend that you contact us before placing your order for more information about estimated delivery time.

Description

Combine all the needed components to finish your engine’s oiling system

Quieter and smoother engine operation

Increase oil pressure, scavenge volume and engine oil flow

25°-35° cooler engine temperatures

15°-30° degree cooler oil temperatures

15-30 lbs more psi of oil pressure

Eliminate wet sumping, blowby and oily air cleaners

Test results show 3 horsepower gain and 4 ft./lb. of torque gain to the rear wheel

Billet 7075 aluminum oil pump is 50% harder and stronger than the factory pump; holds tighter tolerances under temperature

Race Series® full-travel hydraulic lifters have a full .200” of total travel designed with a slower bleed-down rate to handle very heavy valve spring pressures, increase engine rpm before valve float and have increased roller clearance for steep ramped camshafts

Race Series® short-travel hydraulic lifters have .115” of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine

Travel reduction reduces the amount of oil that is required to fill the inside of the lifter which reduces oil aeration inside the lifter on steep, fast action high lift camshaft lobes

Includes bearing retainer plate and hardware.

Use with short-travel pushrods PART #0928-0116 on stock base circle
camshafts (Feuling 525, 543 and 574 grinds) and PART #0928-0117 on small base circle camshafts (Feuling 594 and 630 grinds).

Conversion camplates use ’99-’06 style camshafts; oil system pack requires
separate purchase of hydraulic chain drive tensioners, chains, sprockets
and spacers.

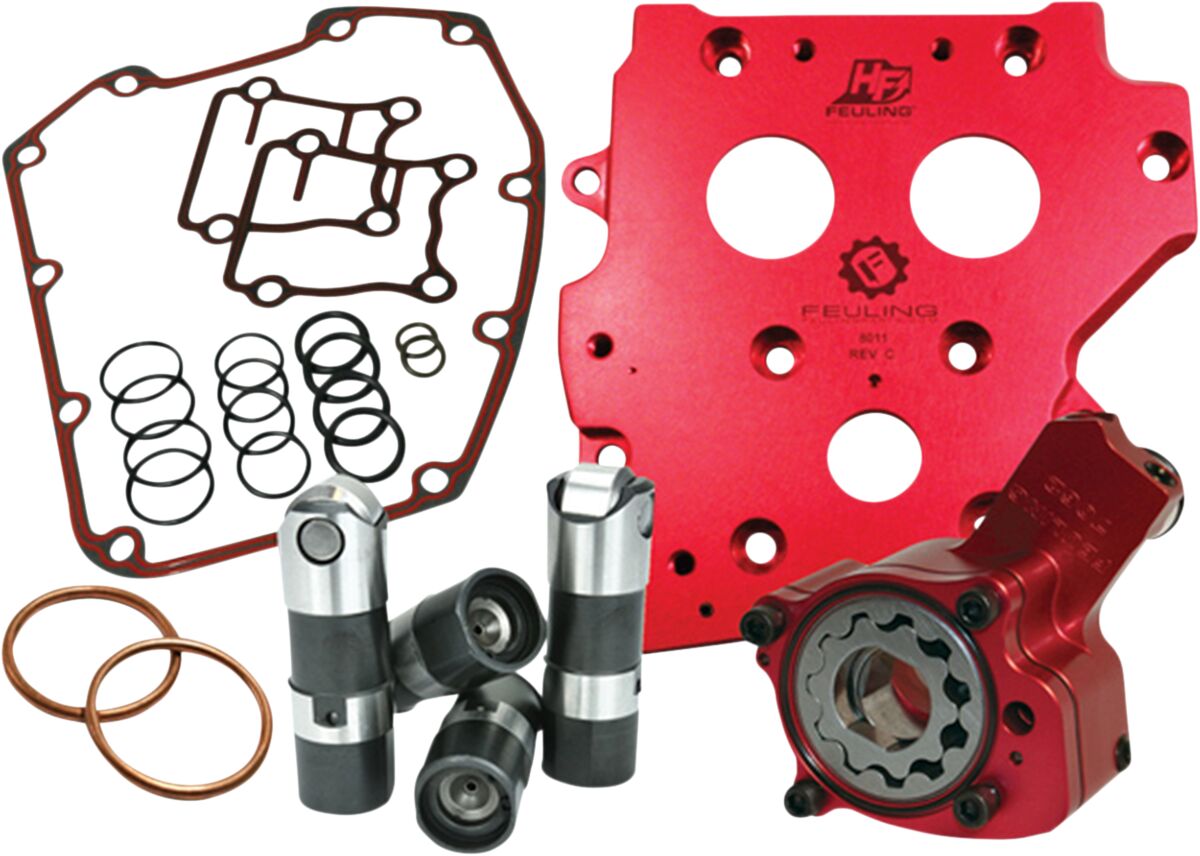

Includes Race Series® lifters, Race Series® oil pump and red anodized camplate.

Conversion camplate system uses the original style ’99 -’06 Twin Cam® cam bearing bores for use with the press in bearings.

Camplate is designed to use the new style ’07-’17 hydraulic chain tensioner system with the original ’99 -’06 Twin Cam® style camshafts.

Features

Additional information

Style	Chain Drive
Features	Includes Short-Travel Hydraulic Lifters
Material	7075 Billet Aluminum
Color/Finish	Aluminum, Red
Units	Kit
Product Name	Conversion Kit
Model	Race Series®
Type	Cam Plate, Oil Pump

Compatibility

Model – Sales name	Size	Year
FLHRI 1450 EFI – Road King	1450	2001
FLHRI 1450 EFI – Road King	1450	2002
FLHT 1450 – Electra Glide	1450	2006
FLTR 1450 – Road Glide	1450	2003
FLHRS 1450 – Road King Custom	1450	2004
FLHRCI 1450 EFI – Road King Classic	1450	2005
FLHR 1450 – Road King	1450	2005
FLHRI 1450 EFI – Road King	1450	2005
FLHRS 1450 – Road King Custom	1450	2005
FLHRSI 1450 EFI – Road King Custom	1450	2005
FLHTCSE2 1690 EFI – Electra Glide Screamin Eagle	1690	2005
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2005
FLHTC 1450 – Electra Glide Classic	1450	2005
FLHTCI 1450 EFI – Electra Glide Classic	1450	2005
FLHT 1450 – Electra Glide	1450	2005
FLHTI 1450 EFI – Electra Glide	1450	2005
FLSTC 1450 – Heritage Softail Classic	1450	2005
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2005
FLSTF 1450 – Fat Boy	1450	2005
FLSTFI 1450 EFI – Fat Boy	1450	2005
FLSTFI 1550 EFI – Fat Boy 15th Anniversary	1550	2005
FLSTFSE 1690 – Fat Boy Screamin Eagle	1690	2005
FLSTN 1450 – Softail Deluxe	1450	2005
FLSTNI 1450 EFI – Softail Deluxe	1450	2005
FLSTSC 1450 – Softail Springer Classic	1450	2005
FLSTSCI 1450 EFI – Softail Springer Classic	1450	2005
FXD 1450 – Dyna Super Glide	1450	2005
FXDI 1450 EFI – Dyna Super Glide	1450	2005
FXDC 1450 – Dyna Super Glide Custom	1450	2005
FXDCI 1450 EFI – Dyna Super Glide Custom	1450	2005
FXDL 1450 – Dyna Low Rider	1450	2005
FXDLI 1450 EFI – Dyna Low Rider	1450	2005
FXDWG 1450 – Dyna Wide Glide	1450	2005
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2005
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2005
FXSTB 1450 – Softail Night Train	1450	2005
FXSTBI 1450 EFI – Softail Night Train	1450	2005
FXST 1450 – Softail	1450	2005
FLHR 1450 – Road King	1450	2004
FLHRI 1450 EFI – Road King	1450	2004
FLHRC 1450 – Road King Classic	1450	2004
FLHRCI 1450 EFI – Road King Classic	1450	2004
FLHRSI 1450 EFI – Road King Custom	1450	2004
FLHT 1450 – Electra Glide	1450	2004
FLHTI 1450 EFI – Electra Glide	1450	2004
FLHTC 1450 – Electra Glide Classic	1450	2004
FLHTCI 1450 EFI – Electra Glide Classic	1450	2004
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2004
FLSTC 1450 – Heritage Softail Classic	1450	2004
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2004
FLSTF 1450 – Fat Boy	1450	2004
FLSTFI 1450 EFI – Fat Boy	1450	2004
FXD 1450 – Dyna Super Glide	1450	2004
FXDI 1450 EFI – Dyna Super Glide	1450	2004
FXDL 1450 – Dyna Low Rider	1450	2004
FXDLI 1450 EFI – Dyna Low Rider	1450	2004
FXDWG 1450 – Dyna Wide Glide	1450	2004
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2004
FXDX 1450 – Dyna Super Glide Sport	1450	2004
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2004
FXST 1450 – Softail	1450	2004
FXSTB 1450 – Softail Night Train	1450	2004
FXSTBI 1450 EFI – Softail Night Train	1450	2004
FLHR 1450 – Road King	1450	2003
FLHRI 1450 EFI – Road King	1450	2003
FLHRCI 1450 EFI – Road King Classic	1450	2003
FLHT 1450 – Electra Glide	1450	2003
FLHTC 1450 – Electra Glide Classic	1450	2003
FLHTCI 1450 EFI – Electra Glide Classic	1450	2003
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2003
FLSTC 1450 – Heritage Softail Classic	1450	2003
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2003
FLSTF 1450 – Fat Boy	1450	2003
FLSTFI 1450 EFI – Fat Boy	1450	2003
FLSTS 1450 – Heritage Softail Springer	1450	2003
FLSTSI 1450 EFI – Heritage Softail Springer	1450	2003
FXD 1450 – Dyna Super Glide	1450	2003
FXDL 1450 – Dyna Low Rider	1450	2003
FXDWG 1450 – Dyna Wide Glide	1450	2003
FXDX 1450 – Dyna Super Glide Sport	1450	2003
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2003
FXST 1450 – Softail	1450	2003
FXSTB 1450 – Softail Night Train	1450	2003
FXSTBI 1450 EFI – Softail Night Train	1450	2003
FLHR 1450 – Road King	1450	2002
FLHRCI 1450 EFI – Road King Classic	1450	2002
FLHT 1450 – Electra Glide	1450	2002
FLHTC 1450 – Electra Glide Classic	1450	2002
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2002
FLSTC 1450 – Heritage Softail Classic	1450	2002
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2002
FLSTF 1450 – Fat Boy	1450	2002
FLSTFI 1450 EFI – Fat Boy	1450	2002
FLSTS 1450 – Heritage Softail Springer	1450	2002
FLTR 1450 – Road Glide	1450	2002
FXD 1450 – Dyna Super Glide	1450	2002
FXDL 1450 – Dyna Low Rider	1450	2002
FXDWG 1450 – Dyna Wide Glide	1450	2002
FXDX 1450 – Dyna Super Glide Sport	1450	2002
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2002
FXST 1450 – Softail	1450	2002
FXSTB 1450 – Softail Night Train	1450	2002
FXSTD 1450 – Softail Deuce	1450	2002
FLHR 1450 – Road King	1450	2001
FLHRCI 1450 EFI – Road King Classic	1450	2001
FLHT 1450 – Electra Glide	1450	2001
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2001
FLSTC 1450 – Heritage Softail Classic	1450	2001
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2001
FLSTF 1450 – Fat Boy	1450	2001
FLSTFI 1450 EFI – Fat Boy	1450	2001
FLSTS 1450 – Heritage Softail Springer	1450	2001
FLTR 1450 – Road Glide	1450	2001
FXD 1450 – Dyna Super Glide	1450	2001
FXDL 1450 – Dyna Low Rider	1450	2001
FXDWG 1450 – Dyna Wide Glide	1450	2001
FXDX 1450 – Dyna Super Glide Sport	1450	2001
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2001
FXST 1450 – Softail	1450	2001
FXSTB 1450 – Softail Night Train	1450	2001
FXSTD 1450 – Softail Deuce	1450	2001
FLHR 1450 – Road King	1450	2000
FLHRI 1450 EFI – Road King	1450	2000
FLHRCI 1450 EFI – Road King Classic	1450	2000
FLHT 1450 – Electra Glide	1450	2000
FLHTCI 1450 EFI – Electra Glide Classic	1450	2000
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2000
FLSTC 1450 – Heritage Softail Classic	1450	2000
FLSTF 1450 – Fat Boy	1450	2000
FLSTS 1450 – Heritage Softail Springer	1450	2000
FLTR 1450 – Road Glide	1450	2000
FXD 1450 – Dyna Super Glide	1450	2000
FXDL 1450 – Dyna Low Rider	1450	2000
FXDWG 1450 – Dyna Wide Glide	1450	2000
FXDX 1450 – Dyna Super Glide Sport	1450	2000
FXST 1450 – Softail	1450	2000
FXSTB 1450 – Softail Night Train	1450	2000
FXSTD 1450 – Softail Deuce	1450	2000
FLHR 1450 – Road King	1450	1999
FLHRI 1450 EFI – Road King	1450	1999
FLHRCI 1450 EFI – Road King Classic	1450	1999
FLHT 1450 – Electra Glide	1450	1999
FLHTCI 1450 EFI – Electra Glide Classic	1450	1999
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	1999
FLTR 1450 – Road Glide	1450	1999
FLTRI 1450 EFI – Road Glide	1450	1999
FXD 1450 – Dyna Super Glide	1450	1999
FXDL 1450 – Dyna Low Rider	1450	1999
FXDWG 1450 – Dyna Wide Glide	1450	1999
FXDX 1450 – Dyna Super Glide Sport	1450	1999
FXDWG2 1450 – Dyna Wide Glide Limited Edition	1450	2001
FXDWG3 1450 – Dyna Wide Glide Limited Edition	1450	2002
FLHRSEI 1550 – Road King Screamin Eagle	1550	2002
FLHRSEI2 1690 – Road King Screamin Eagle	1690	2003
FLHTCSE 1690 EFI – Electra Glide Screamin Eagle	1690	2004
