HP+® Oil System Packs for M8

HP+® Oil System Packs for M8

Categories: , ,

Brand:

Vendor Number: 7098

7.390,39 lei

Add to wishlist

Description

  • Includes FUELING® High Flow billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory or FUELING® OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • FUELING® oil pumps are bench tested, the relief valve is seated and sealed to a minimum of 30 psi with full pop off at 55-60 psi
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • FUELING® oil pump and camplate combination eliminate common pressure and scavenge issues associated with the factory oiling systems
  • FUELING® M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • 68% more oil volume to the crankshaft and connecting rod bearing
  • Engine temperatures run 15°-25° cooler
  • Oil temperatures run 15°-30° cooler
  • 10-30 lbs more psi of oil pressure
  • Reduces wet sumping, blowby and oily air cleaners
  • Test results show 2 HP gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight

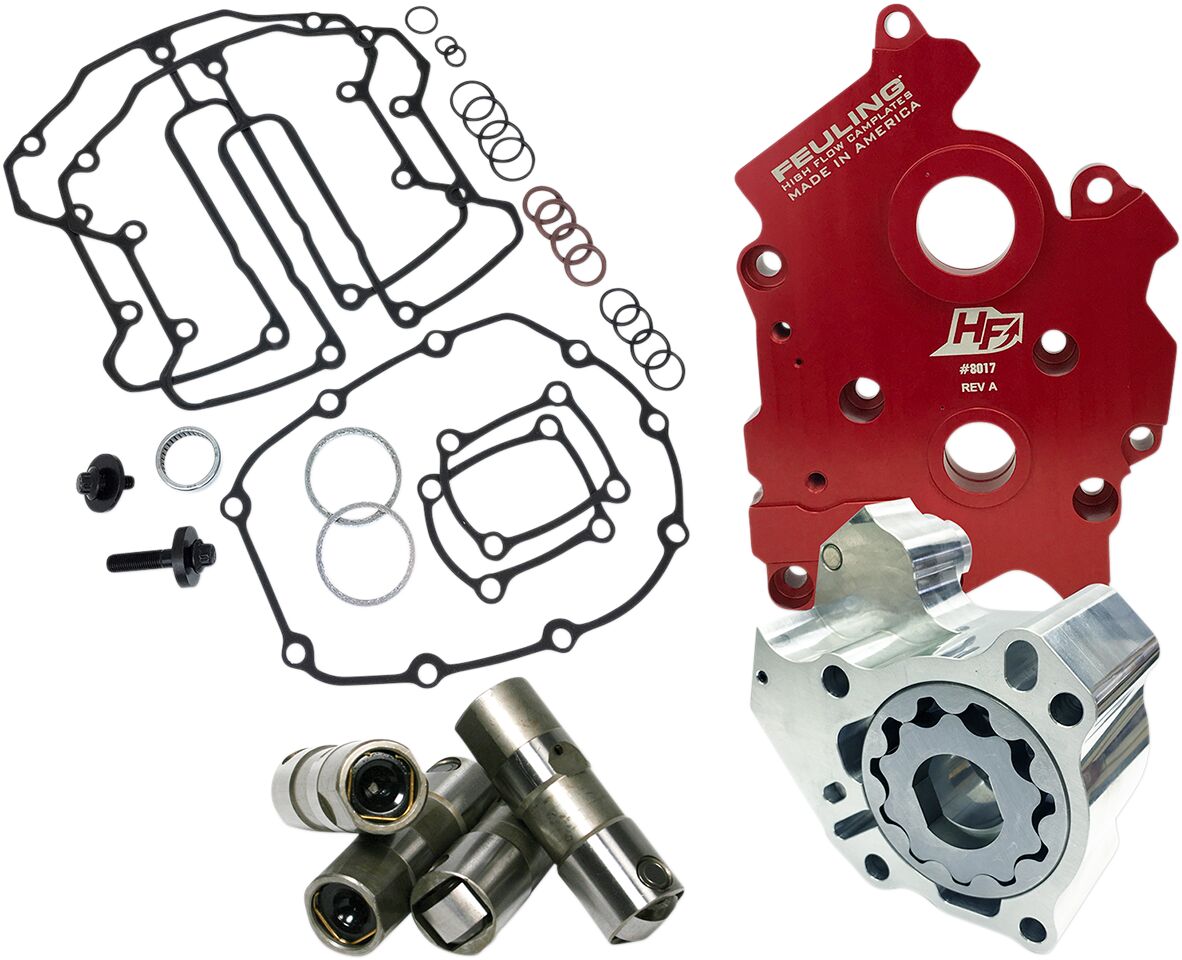

  • Includes billet 6061 aluminum high volume oil pump, High Flow camplate, HP+® Hydraulic roller lifters, cam installation kit, cam bearing, cam/crank bolts and washers, engine and fastener assembly lube
  • Made in the USA
  • Optional FUELING® X ARP bolt kit available for the High Flow camplate PART #0932-0192 and HP+ or RS oil pump combo. See PART #2401-0993, optional ARP oil pump bolts do not use washers.
  • Optional FUELING® X ARP oil pump/camplate bolt kit available PART #2401-0993.
  • FUELING® test results show as much as 50% reduction of engine sump oil level.
  • M-Eight engines must check clearance on front exhaust lifter to camshaft flange fit.

    • 30% more pressure gear volume over stock and 53% more scavenge gear volume over stock.

    Features

    Additional information

    Model

    HP+®
    Color/Finish

    Red
    Type

    Oil System
    Material

    Aluminum
    Product Name

    Pump Kit
    Units

    Kit
    Style

    Chain Drive, Gear Drive

    Compatibility

    Model – Sales nameSizeYear
    FLHXSE 1868 ABS – Street Glide CVO 114 18682017
    FLHTKSE 1868 ABS – Electra Glide Ultra Limited CVO 114 18682017
    FLHTCUTG 1750 – Trike Tri Glide Ultra Classic 107 17502017
    FLHTCU 1750 ABS – Electra Glide Ultra Classic 107 17502017
    FLTRU 1750 ABS – Road Glide Ultra 107 17502017
    FLHTK 1750 ABS – Electra Glide Ultra Limited 107 17502017
    FLHTKL 1750 ABS – Electra Glide Ultra Limited Low 107 17502017
    FLHTCU 1750 ABS – Electra Glide Ultra Classic 107 17502018
    FLHTK 1750 ABS – Ultra Limited 107 17502018
    FLHTK 1750 ABS – Ultra Limited Shrine Edition 107 17502018
    FLHTK 1750 ABS – Ultra Limited Anniversary 107 17502018
    FLHTKL 1750 ABS – Ultra Limited Low 107 17502018
    FLTRU 1750 ABS – Road Glide Ultra 107 17502018
    FLHTCUTG 1750 – Tri Glide Ultra 107 17502018
    FLHTCUTG 1750 – Tri Glide Ultra Anniversary 107 17502018
    FLHXSE 1923 ABS – Street Glide CVO 117 19232018
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232018
    FLHTKSE 1923 ABS – Ultra Limited CVO Anniversary 117 19232018
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232018
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682019
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682019
    FLHTKL 1868 ABS – Ultra Limited Low 114 18682019
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232019
    FLHXSE 1923 ABS – Street Glide CVO 117 19232019
    FLTRU 1868 ABS – Road Glide Ultra 114 18682019
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232019
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682020
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682020
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232020
    FLHXSE 1923 ABS – Street Glide CVO 117 19232020
    FLTRK 1868 ABS – Road Glide Limited 114 18682020
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232020
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682021
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682021
    FLHTCUTGSE 1923 ABS – Tri Glide Ultra CVO 117 19232021
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682021
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232021
    FLHXSE 1923 ABS – Street Glide CVO 117 19232021
    FLTRK 1868 ABS – Road Glide Limited 114 18682021
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232021
    FLTRK 1868 ABS – Road Glide Limited 114 18682022
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682022
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682022
    FLHXSE 1923 ABS – Street Glide CVO 117 19232022
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232022
    FLTRKSE 1923 ABS – Road Glide Limited CVO 117 19232022
    FLHTCUTGSE 1923 ABS – Tri Glide CVO 117 19232022
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682022
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682023
    FLTRKSE 1923 ABS – Road Glide Limited Anniversary CVO 117 19232023
    FLHTK 1868 ABS – Ultra Limited Anniversary 114 18682023
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682023
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682023
    FLTRK 1868 ABS – Road Glide Limited 114 18682023
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682024
