HP+® High Volume Oil Pump

HP+® High Volume Oil Pump
HP+® High Volume Oil Pump - Image 2
HP+® High Volume Oil Pump - Image 3

Categories: , ,

Brand:

Vendor Number: 7198

5.390,83 lei

Add to wishlist

Description

  • Increase oil pressure, oil volume, engine oil flow and return oil scavenging
  • Quieter and smoother engine operation
  • Engine temperatures run 15°-25° cooler
  • Oil temperatures run 15°-30° cooler
  • 10-30 lbs more psi of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Test results show 2 horsepower gain and 2 ft/lbs of torque gain to the rear wheel on M-Eight

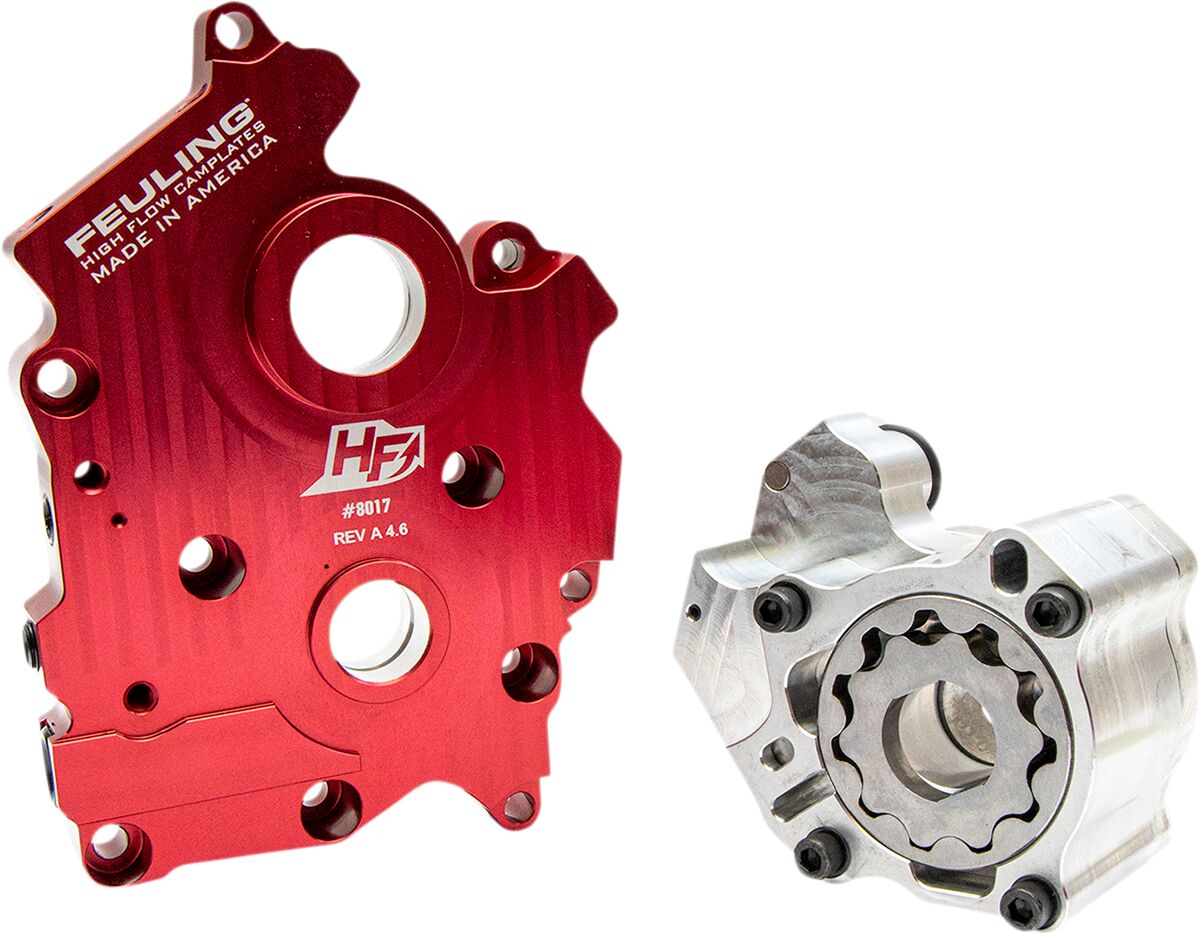

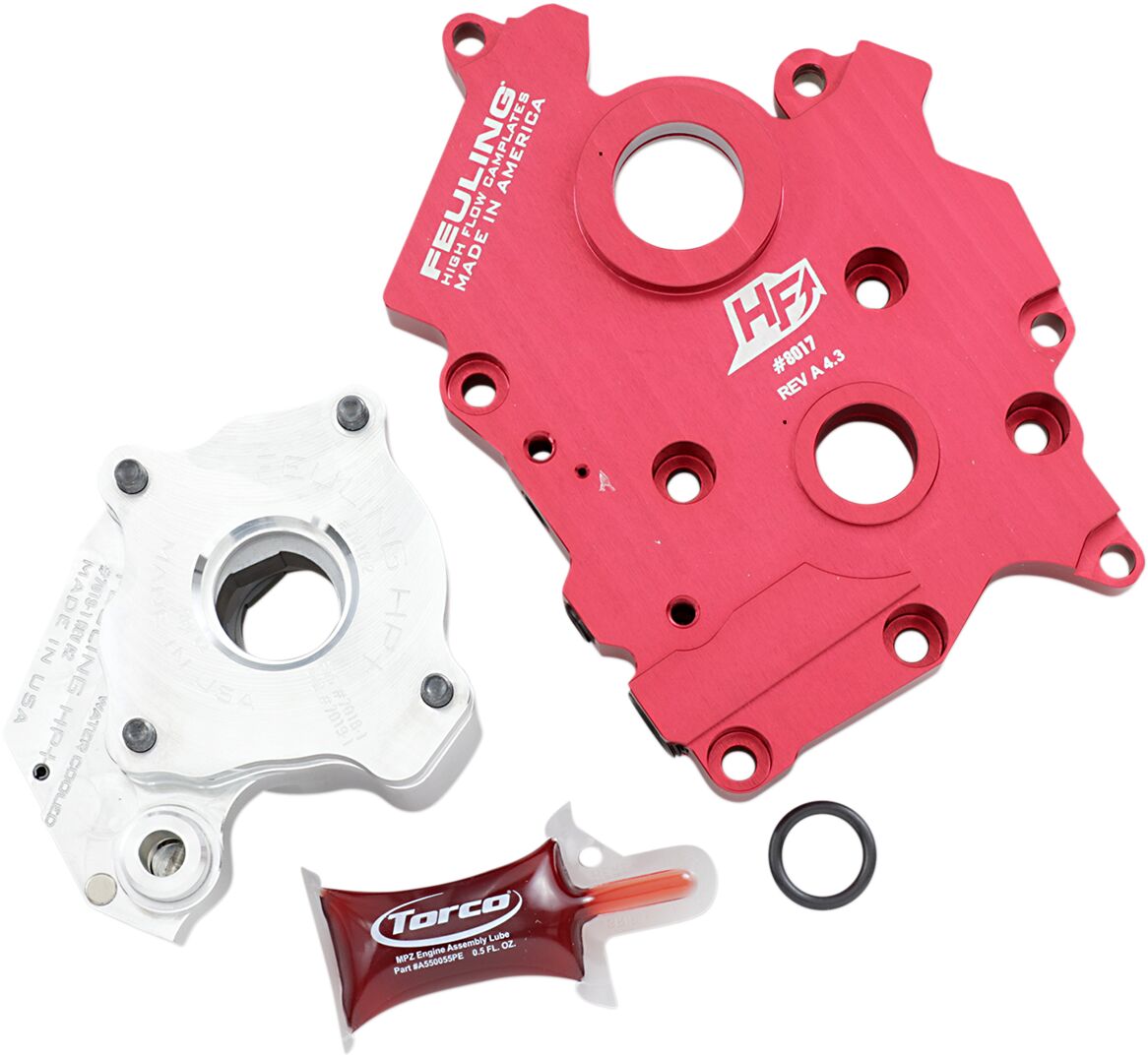

  • Includes a billet 6061 aluminum high-volume oil pump and FEULING® High Flow billet camplate made from 7075 aluminum; which is 50% harder and stronger than the factory or FEULING® OE+ camplates
  • Increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil portholes throughout the camplate to the portholes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings
  • Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 30 psi with full pop-off at 55-60 psi
  • Increased oil volume from the larger gears and properly sized passages along with the pressure relief valve seat and seal from these oil pumps is essential for proper oiling system function
  • FEULING® oil pump and camplate combination eliminates common pressure and scavenge issues associated with the factory oiling systems
  • FEULING® M-Eight oil pumps have the groove machined on the back cover to accept the factory crank bearing seal
  • Made in the USA
  • FEULING® test results show as much as 50% reduction of engine sump oil level.
  • EU: 0,69 – 2,06 more Bar of oil pressure
  • Optional Camplate/oil pump fastener kit PART #2401-0993 available separately.
  • M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
  • EU: Test results show 2 horsepower gain and 2,71 Nm of torque gain to the rear wheel on M-Eight
  • EU: Oil pumps are bench-tested; the relief valve is seated and sealed to a minimum of 2,06 bar with full pop-off at 3,79 bar – 4,13 bar

    • Has 30% more pressure gear volume over stock, 53% more scavenge gear volume over stock and 42% more scavenge volume with port sizing, matched passages and holes to the engine case.

    Features

    Additional information

    Units

    Kit
    Color/Finish

    Red
    Model

    HP+®
    Style

    Chain Drive, Gear Drive
    Material

    6061 Billet Aluminum
    Type

    Oil
    Product Name

    Pump Kit

    Compatibility

    Model – Sales nameSizeYear
    FLHXSE 1868 ABS – Street Glide CVO 114 18682017
    FLHTKSE 1868 ABS – Electra Glide Ultra Limited CVO 114 18682017
    FLRT 1750 – Freewheeler 107 17502017
    FLHTCUTG 1750 – Trike Tri Glide Ultra Classic 107 17502017
    FLHR 1750 – Road King 107 17502017
    FLHR 1750 ABS – Road King 107 17502017
    FLHRC 1750 ABS – Road King Classic 107 17502017
    FLHX 1750 – Street Glide 107 17502017
    FLHX 1750 ABS – Street Glide 107 17502017
    FLHXS 1750 ABS – Street Glide Special 107 17502017
    FLTRX 1750 – Road Glide 107 17502017
    FLTRX 1750 ABS – Road Glide 107 17502017
    FLTRXS 1750 ABS – Road Glide Special 107 17502017
    FLHTCU 1750 ABS – Electra Glide Ultra Classic 107 17502017
    FLTRU 1750 ABS – Road Glide Ultra 107 17502017
    FLHTK 1750 ABS – Electra Glide Ultra Limited 107 17502017
    FLHTKL 1750 ABS – Electra Glide Ultra Limited Low 107 17502017
    FLHRXS 1750 ABS – Road King Special 107 17502017
    FXBB 1750 ABS – Softail Street Bob 107 17502018
    FXFB 1750 ABS – Softail Fat Bob 107 17502018
    FXFBS 1868 ABS – Softail Fat Bob 114 18682018
    FXBR 1750 ABS – Softail Breakout 107 17502018
    FXBRS 1868 ABS – Softail Breakout 114 18682018
    FXBRS 1868 ABS – Softail Breakout Anniversary (ANX) 114 18682018
    FLSL 1750 ABS – Softail Slim 107 17502018
    FXLR 1750 ABS – Softail Low Rider 107 17502018
    FLFB 1750 ABS – Softail Fat Boy 107 17502018
    FLFBS 1868 ABS – Softail Fat Boy 114 18682018
    FLFBS 1868 ABS – Softail Fat Boy Anniversary (ANX) 114 18682018
    FLFBS 1868 ABS – Softail Fat Boy Anniversary (ANV) 114 18682018
    FLDE 1750 ABS – Softail Deluxe 107 17502018
    FLHC 1750 ABS – Softail Heritage Classic 107 17502018
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682018
    FLHCS 1868 ABS – Softail Heritage Classic Anniversary 114 18682018
    FLHR 1750 – Road King 107 17502018
    FLHR 1750 ABS – Road King 107 17502018
    FLHRXS 1750 ABS – Road King Special 107 17502018
    FLHX 1750 – Street Glide 107 17502018
    FLHX 1750 ABS – Street Glide 107 17502018
    FLHXS 1750 ABS – Street Glide Special 107 17502018
    FLHX 1750 ABS – Street Glide Anniversary 107 17502018
    FLHXS 1750 ABS – Street Glide Special Anniversary 107 17502018
    FLHTCU 1750 ABS – Electra Glide Ultra Classic 107 17502018
    FLHTK 1750 ABS – Ultra Limited 107 17502018
    FLHTK 1750 ABS – Ultra Limited Shrine Edition 107 17502018
    FLHTK 1750 ABS – Ultra Limited Anniversary 107 17502018
    FLHTKL 1750 ABS – Ultra Limited Low 107 17502018
    FLTRX 1750 – Road Glide 107 17502018
    FLTRX 1750 ABS – Road Glide 107 17502018
    FLTRXS 1750 ABS – Road Glide Special 107 17502018
    FLTRU 1750 ABS – Road Glide Ultra 107 17502018
    FLHTCUTG 1750 – Tri Glide Ultra 107 17502018
    FLHTCUTG 1750 – Tri Glide Ultra Anniversary 107 17502018
    FLRT 1750 – Freewheeler 107 17502018
    FLHXSE 1923 ABS – Street Glide CVO 117 19232018
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232018
    FLHTKSE 1923 ABS – Ultra Limited CVO Anniversary 117 19232018
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232018
    FLSB 1750 ABS – Softail Sport Glide 107 17502018
    FLHRC 1750 ABS – Road King Classic 107 17502018
    FLDE 1750 ABS – Softail Deluxe 107 17502019
    FLFB 1750 ABS – Softail Fat Boy 107 17502019
    FLFBS 1868 ABS – Softail Fat Boy 114 18682019
    FLHC 1750 ABS – Softail Heritage Classic 107 17502019
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682019
    FLHR 1750 – Road King 107 17502019
    FLHR 1750 ABS – Road King 107 17502019
    FLHRC 1750 ABS – Road King Classic 107 17502019
    FLHRXS 1868 ABS – Road King Special 114 18682019
    FLHTCU 1750 ABS – Electra Glide Ultra Classic 107 17502019
    FLHTCUTG 1750 ABS – Tri Glide Ultra 107 17502019
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682019
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682019
    FLHTKL 1868 ABS – Ultra Limited Low 114 18682019
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232019
    FLHX 1750 – Street Glide 107 17502019
    FLHX 1750 ABS – Street Glide 107 17502019
    FLHXS 1868 ABS – Street Glide Special 114 18682019
    FLHXSE 1923 ABS – Street Glide CVO 117 19232019
    FLRT 1750 ABS – Freewheeler 107 17502019
    FLSB 1750 ABS – Softail Sport Glide 107 17502019
    FLSL 1750 ABS – Softail Slim 107 17502019
    FLTRU 1868 ABS – Road Glide Ultra 114 18682019
    FLTRX 1750 – Road Glide 107 17502019
    FLTRX 1750 ABS – Road Glide 107 17502019
    FLTRXS 1868 ABS – Road Glide Special 114 18682019
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232019
    FXBB 1750 ABS – Softail Street Bob 107 17502019
    FXBR 1750 ABS – Softail Breakout 107 17502019
    FXBRS 1868 ABS – Softail Breakout 114 18682019
    FXDR 1868 ABS – Softail King 114 18682019
    FXFB 1750 ABS – Softail Fat Bob 107 17502019
    FXFBS 1868 ABS – Softail Fat Bob 114 18682019
    FXLR 1750 ABS – Softail Low Rider 107 17502019
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682020
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682020
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232020
    FLHXSE 1923 ABS – Street Glide CVO 117 19232020
    FLTRK 1868 ABS – Road Glide Limited 114 18682020
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232020
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682021
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682021
    FLHTCUTGSE 1923 ABS – Tri Glide Ultra CVO 117 19232021
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682021
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232021
    FLHXSE 1923 ABS – Street Glide CVO 117 19232021
    FLTRK 1868 ABS – Road Glide Limited 114 18682021
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232021
    FLTRK 1868 ABS – Road Glide Limited 114 18682022
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682022
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682022
    FLHXSE 1923 ABS – Street Glide CVO 117 19232022
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232022
    FLTRKSE 1923 ABS – Road Glide Limited CVO 117 19232022
    FLHTCUTGSE 1923 ABS – Tri Glide CVO 117 19232022
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682022
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682023
    FLTRKSE 1923 ABS – Road Glide Limited Anniversary CVO 117 19232023
    FLHTK 1868 ABS – Ultra Limited Anniversary 114 18682023
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682023
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682023
    FLTRK 1868 ABS – Road Glide Limited 114 18682023
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682024
