HP+® Camchest Kit

Value

Categories: Cams Parts, Engine Group, Parts

Brand: Feuling Oil Pump Corp

Vendor Number: 7230

12.165,95 lei

Description

For ’99-’06 Twin Cam except for ’06 Dyna

All necessary components from top-to-bottom of the camchest

Provide maximum reliability, longevity, peak performance, and the coolest engine and oil temperatures obtainable

Quieter and smoother engine operation

Increase oil pressure, scavenge volume and engine oil flow

25°-35° cooler engine temperatures

15°-30° cooler oil temperatures

15-30 more PSI of oil pressure

Eliminate wet sumping, blow by and oily air cleaners

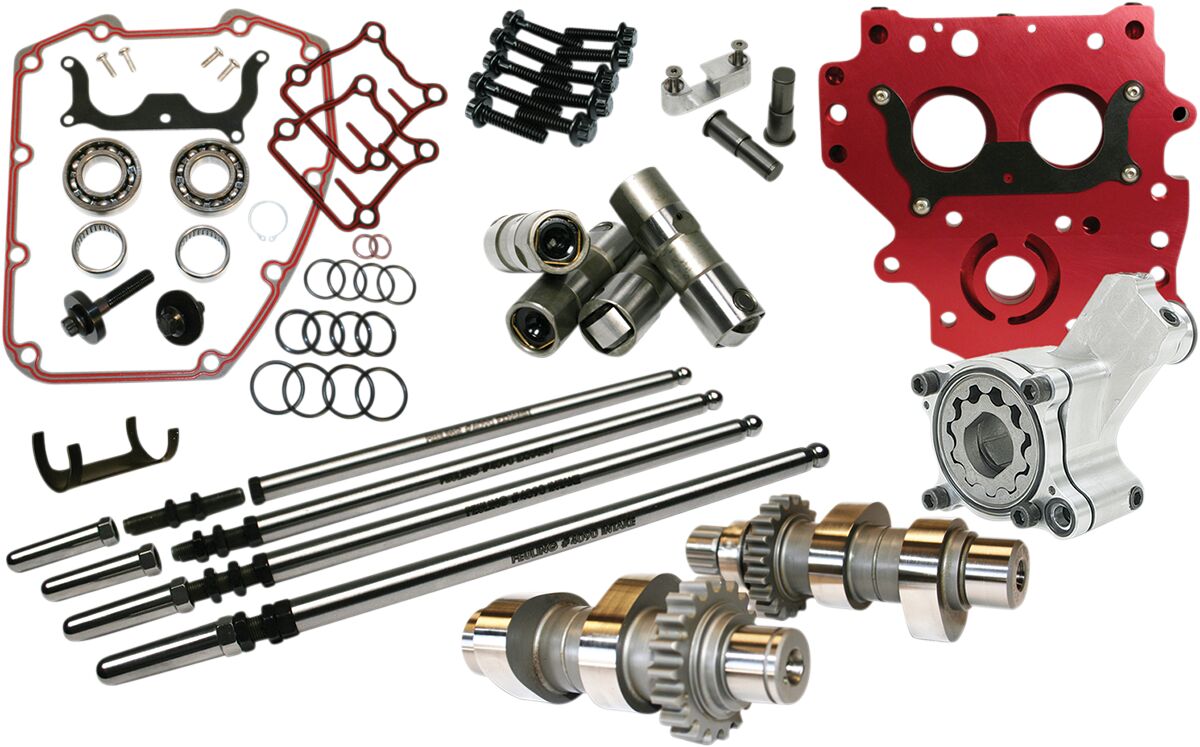

Kit includes Feuling® high volume oil pump, High Flow camplate, Reaper® series camshafts, hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware

Kit uses the OE style spring tensioners. See chain drive conversion kit for hydraulic tensioners.
Offers more power than the 525 cams without sacrificing low end torque.
Extremely smooth cam lobe layout mantains quiet valve train and produces the smoothest cruise power band available.
Excellent bolt-in camshaft for stock to mid 96″ and 103″ engines and works well in 88″ and 96″ engines.
Cam is easy starting, increases throttle response and fuel mileage.
Responds well to increased compression ratio, performance exhaust and high-flow air cleaner.
1900 – 6000 rpm power range.
Performance valve springs are required on ’99-’04 enagines and performance pushrods and lifters are recommended but not required.

Features

Additional information

Exhaust Lift	0, 553"
Type	Chain Drive
Units	Kit
Exhaust Duration	248°
Intake Lift	0, 543"
Intake Open	15°
Exhaust Close	12°
Features	Quick Install Adjustable Pushrods
Model	HP+®
Grind	543 Series
Intake Close	43°
Exhaust Lobe Centerline	112°
Exhaust Open	56°
Exhaust Lift at TDC	0, 140"
Application	Exhaust, Intake
Intake Lobe Centerline	104°
Intake Lift at TDC	0, 160"
Product Name	Camchest Kit
Intake Duration	238°

Compatibility

Model – Sales name	Size	Year
FLHRI 1450 EFI – Road King	1450	2001
FLHRI 1450 EFI – Road King	1450	2002
FXSTC 1340 – Softail Custom	1340	1999
FLHT 1450 – Electra Glide	1450	2006
FLHRS 1450 – Road King Custom	1450	2004
FLHR 1450 – Road King	1450	2006
FLHRI 1450 EFI – Road King	1450	2006
FLHRS 1450 – Road King Custom	1450	2006
FLHRSI 1450 EFI – Road King Custom	1450	2006
FLHRCI 1450 EFI – Road King Classic	1450	2006
FLHTCI 1450 EFI – Electra Glide Classic	1450	2006
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2006
FLHTCUSE 1690 – Electra Glide Ultra Classic Screamin Eagle	1690	2006
FLHTI 1450 EFI – Electra Glide	1450	2006
FLHX 1450 – Street Glide	1450	2006
FLHXI 1450 EFI – Street Glide	1450	2006
FLSTC 1450 – Heritage Softail Classic	1450	2006
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2006
FLSTFI 1450 EFI – Fat Boy	1450	2006
FLSTFSE2 1690 – Fat Boy Screamin Eagle	1690	2006
FLSTF 1450 – Fat Boy	1450	2006
FLST 1450 – Heritage Softail	1450	2006
FLSTI 1450 EFI – Heritage Softail	1450	2006
FLSTN 1450 – Softail Deluxe	1450	2006
FLSTNI 1450 EFI – Softail Deluxe	1450	2006
FLSTSC 1450 – Softail Springer Classic	1450	2006
FLSTSCI 1450 EFI – Softail Springer Classic	1450	2006
FLTRI 1450 EFI – Road Glide	1450	2006
FXSTD 1450 – Softail Deuce	1450	2006
FXSTDI 1450 EFI – Softail Deuce	1450	2006
FXST 1450 – Softail	1450	2006
FXSTI 1450 EFI – Softail	1450	2006
FXSTB 1450 – Softail Night Train	1450	2006
FXSTBI 1450 EFI – Softail Night Train	1450	2006
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	1999
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	2000
FLHRCI 1450 EFI – Road King Classic	1450	2005
FLHR 1450 – Road King	1450	2005
FLHRI 1450 EFI – Road King	1450	2005
FLHRS 1450 – Road King Custom	1450	2005
FLHRSI 1450 EFI – Road King Custom	1450	2005
FLHTCSE2 1690 EFI – Electra Glide Screamin Eagle	1690	2005
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2005
FLHTC 1450 – Electra Glide Classic	1450	2005
FLHTCI 1450 EFI – Electra Glide Classic	1450	2005
FLHT 1450 – Electra Glide	1450	2005
FLHTI 1450 EFI – Electra Glide	1450	2005
FLSTC 1450 – Heritage Softail Classic	1450	2005
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2005
FLSTF 1450 – Fat Boy	1450	2005
FLSTFI 1450 EFI – Fat Boy	1450	2005
FLSTFI 1550 EFI – Fat Boy 15th Anniversary	1550	2005
FLSTFSE 1690 – Fat Boy Screamin Eagle	1690	2005
FLSTN 1450 – Softail Deluxe	1450	2005
FLSTNI 1450 EFI – Softail Deluxe	1450	2005
FLSTSC 1450 – Softail Springer Classic	1450	2005
FLSTSCI 1450 EFI – Softail Springer Classic	1450	2005
FLTRI 1450 EFI – Road Glide	1450	2005
FXD 1450 – Dyna Super Glide	1450	2005
FXDI 1450 EFI – Dyna Super Glide	1450	2005
FXDC 1450 – Dyna Super Glide Custom	1450	2005
FXDCI 1450 EFI – Dyna Super Glide Custom	1450	2005
FXDL 1450 – Dyna Low Rider	1450	2005
FXDLI 1450 EFI – Dyna Low Rider	1450	2005
FXDWG 1450 – Dyna Wide Glide	1450	2005
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2005
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2005
FXSTB 1450 – Softail Night Train	1450	2005
FXSTBI 1450 EFI – Softail Night Train	1450	2005
FXST 1450 – Softail	1450	2005
FXSTI 1450 EFI – Softail	1450	2005
FXSTD 1450 – Softail Deuce	1450	2005
FXSTDI 1450 EFI – Softail Deuce	1450	2005
FXSTS 1450 – Softail Springer	1450	2005
FXSTSI 1450 EFI – Softail Springer	1450	2005
FLHR 1450 – Road King	1450	2004
FLHRI 1450 EFI – Road King	1450	2004
FLHRC 1450 – Road King Classic	1450	2004
FLHRCI 1450 EFI – Road King Classic	1450	2004
FLHRSI 1450 EFI – Road King Custom	1450	2004
FLHT 1450 – Electra Glide	1450	2004
FLHTI 1450 EFI – Electra Glide	1450	2004
FLHTC 1450 – Electra Glide Classic	1450	2004
FLHTCI 1450 EFI – Electra Glide Classic	1450	2004
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2004
FLSTC 1450 – Heritage Softail Classic	1450	2004
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2004
FLSTF 1450 – Fat Boy	1450	2004
FLSTFI 1450 EFI – Fat Boy	1450	2004
FLTRI 1450 EFI – Road Glide	1450	2004
FXD 1450 – Dyna Super Glide	1450	2004
FXDI 1450 EFI – Dyna Super Glide	1450	2004
FXDL 1450 – Dyna Low Rider	1450	2004
FXDLI 1450 EFI – Dyna Low Rider	1450	2004
FXDWG 1450 – Dyna Wide Glide	1450	2004
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2004
FXDX 1450 – Dyna Super Glide Sport	1450	2004
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2004
FXST 1450 – Softail	1450	2004
FXSTI 1450 EFI – Softail	1450	2004
FXSTB 1450 – Softail Night Train	1450	2004
FXSTBI 1450 EFI – Softail Night Train	1450	2004
FXSTD 1450 – Softail Deuce	1450	2004
FXSTDI 1450 EFI – Softail Deuce	1450	2004
FXSTS 1450 – Softail Springer	1450	2004
FXSTSI 1450 EFI – Softail Springer	1450	2004
FLHR 1450 – Road King	1450	2003
FLHRI 1450 EFI – Road King	1450	2003
FLHRCI 1450 EFI – Road King Classic	1450	2003
FLHT 1450 – Electra Glide	1450	2003
FLHTC 1450 – Electra Glide Classic	1450	2003
FLHTCI 1450 EFI – Electra Glide Classic	1450	2003
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2003
FLSTC 1450 – Heritage Softail Classic	1450	2003
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2003
FLSTF 1450 – Fat Boy	1450	2003
FLSTFI 1450 EFI – Fat Boy	1450	2003
FLSTS 1450 – Heritage Softail Springer	1450	2003
FLSTSI 1450 EFI – Heritage Softail Springer	1450	2003
FLTRI 1450 EFI – Road Glide	1450	2003
FXD 1450 – Dyna Super Glide	1450	2003
FXDL 1450 – Dyna Low Rider	1450	2003
FXDWG 1450 – Dyna Wide Glide	1450	2003
FXDX 1450 – Dyna Super Glide Sport	1450	2003
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2003
FXST 1450 – Softail	1450	2003
FXSTI 1450 EFI – Softail	1450	2003
FXSTB 1450 – Softail Night Train	1450	2003
FXSTBI 1450 EFI – Softail Night Train	1450	2003
FXSTD 1450 – Softail Deuce	1450	2003
FXSTDI 1450 EFI – Softail Deuce	1450	2003
FXSTS 1450 – Softail Springer	1450	2003
FXSTSI 1450 EFI – Softail Springer	1450	2003
FLHR 1450 – Road King	1450	2002
FLHRCI 1450 EFI – Road King Classic	1450	2002
FLHT 1450 – Electra Glide	1450	2002
FLHTC 1450 – Electra Glide Classic	1450	2002
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2002
FLSTC 1450 – Heritage Softail Classic	1450	2002
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2002
FLSTF 1450 – Fat Boy	1450	2002
FLSTFI 1450 EFI – Fat Boy	1450	2002
FLSTS 1450 – Heritage Softail Springer	1450	2002
FLTR 1450 – Road Glide	1450	2002
FLTRI 1450 EFI – Road Glide	1450	2002
FXD 1450 – Dyna Super Glide	1450	2002
FXDL 1450 – Dyna Low Rider	1450	2002
FXDWG 1450 – Dyna Wide Glide	1450	2002
FXDX 1450 – Dyna Super Glide Sport	1450	2002
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2002
FXST 1450 – Softail	1450	2002
FXSTB 1450 – Softail Night Train	1450	2002
FXSTD 1450 – Softail Deuce	1450	2002
FXSTDI 1450 EFI – Softail Deuce	1450	2002
FXSTS 1450 – Softail Springer	1450	2002
FLHR 1450 – Road King	1450	2001
FLHRCI 1450 EFI – Road King Classic	1450	2001
FLHT 1450 – Electra Glide	1450	2001
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2001
FLSTC 1450 – Heritage Softail Classic	1450	2001
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2001
FLSTF 1450 – Fat Boy	1450	2001
FLSTFI 1450 EFI – Fat Boy	1450	2001
FLSTS 1450 – Heritage Softail Springer	1450	2001
FLTR 1450 – Road Glide	1450	2001
FLTRI 1450 EFI – Road Glide	1450	2001
FLTRSEI2 1550 – Road Glide Screamin Eagle	1550	2001
FXD 1450 – Dyna Super Glide	1450	2001
FXDL 1450 – Dyna Low Rider	1450	2001
FXDWG 1450 – Dyna Wide Glide	1450	2001
FXDX 1450 – Dyna Super Glide Sport	1450	2001
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2001
FXST 1450 – Softail	1450	2001
FXSTB 1450 – Softail Night Train	1450	2001
FXSTD 1450 – Softail Deuce	1450	2001
FXSTDI 1450 EFI – Softail Deuce	1450	2001
FXSTS 1450 – Softail Springer	1450	2001
FLHR 1450 – Road King	1450	2000
FLHRI 1450 EFI – Road King	1450	2000
FLHRCI 1450 EFI – Road King Classic	1450	2000
FLHT 1450 – Electra Glide	1450	2000
FLHTCI 1450 EFI – Electra Glide Classic	1450	2000
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2000
FLSTC 1450 – Heritage Softail Classic	1450	2000
FLSTF 1450 – Fat Boy	1450	2000
FLSTS 1450 – Heritage Softail Springer	1450	2000
FLTR 1450 – Road Glide	1450	2000
FLTRI 1450 EFI – Road Glide	1450	2000
FXD 1450 – Dyna Super Glide	1450	2000
FXDL 1450 – Dyna Low Rider	1450	2000
FXDWG 1450 – Dyna Wide Glide	1450	2000
FXDX 1450 – Dyna Super Glide Sport	1450	2000
FXST 1450 – Softail	1450	2000
FXSTB 1450 – Softail Night Train	1450	2000
FXSTD 1450 – Softail Deuce	1450	2000
FXSTS 1450 – Softail Springer	1450	2000
FLSTC 1340 – Heritage Softail Classic	1340	1999
FLSTF 1340 – Fat Boy	1340	1999
FLSTS 1340 – Heritage Softail Springer	1340	1999
FXSTB 1340 – Softail Night Train	1340	1999
FXST 1340 – Softail	1340	1999
FXSTS 1340 – Softail Springer	1340	1999
FLHR 1450 – Road King	1450	1999
FLHRI 1450 EFI – Road King	1450	1999
FLHRCI 1450 EFI – Road King Classic	1450	1999
FLHT 1450 – Electra Glide	1450	1999
FLHTCI 1450 EFI – Electra Glide Classic	1450	1999
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	1999
FLTR 1450 – Road Glide	1450	1999
FLTRI 1450 EFI – Road Glide	1450	1999
FXD 1450 – Dyna Super Glide	1450	1999
FXDL 1450 – Dyna Low Rider	1450	1999
FXDWG 1450 – Dyna Wide Glide	1450	1999
FXDX 1450 – Dyna Super Glide Sport	1450	1999
FXSTDSE 1550 – Softail Deuce Screamin Eagle	1550	2003
FXSTDSE2 1550 – Softail Deuce Screamin Eagle	1550	2004
FXR2 1340 – Super Glide Screamin Eagle	1340	1999
FXR3 1340 – Super Glide Screamin Eagle	1340	1999
FXR4 1340 – Super Glide Screamin Eagle	1340	2000
FXDWG2 1450 – Dyna Wide Glide Limited Edition	1450	2001
FXDWG3 1450 – Dyna Wide Glide Limited Edition	1450	2002
FLTRSEI 1550 – Road Glide Screamin Eagle	1550	2000
FLHRSEI 1550 – Road King Screamin Eagle	1550	2002
FLHRSEI2 1690 – Road King Screamin Eagle	1690	2003
FXSTS 1450 – Softail Springer	1450	2006
FXSTSI 1450 EFI – Softail Springer	1450	2006

HP+® Camchest Kit

Description

Features

Additional information

Compatibility

Shop

USEFUL LINKS

CONTACT

FOLLOW US

Terms and Conditions, Warranty
