High Load Beehive® Valve Springs

High Load Beehive® Valve Springs

Categories: , ,

Brand:

Vendor Number: 1201

2.385,32 lei

Delivery time: 3 – 14 days

For parts that are in stock in the United States delivery time may be subject to changes due to current legislation. We recommend that you contact us before placing your order for more information about estimated delivery time.

Description

  • Made from premium stress-relieved conical ovate wire with nitrided surface heat treatment, shot-peened surface enhancements and Nano Peen™ polish
  • Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
  • Designed to handle the highest demands of performance engines with high-lift, steep-ramped camshafts
  • Allows up to 0.750″ lift cams; no rocker box clearing required
  • Features extremely high level of fatigue life
  • Dyno proven and track tested
  • Kit includes High-Load BeeHive® valve springs, lightweight 10° Titanium retainers manufactured from Ti-17 alloy and micropolished for enhanced fatigue life, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
  • Made in the USA
  • Seat lb/installed height:
  • 170 lb at 1.935″ (0.720″ lift)
  • 185 lb at 1.900″ (0.685″ lift)
  • 200 lb at 1.845″ (0.630″ lift)
  • 208 lb at 1.819″ (0.604″ lift)
  • 215 lb at 1.800″ (0.585″ lift)
  • 217 lb at 1.789″ (0.574″ lift)
  • 415 lb at 1.215″ open height
  • Coil bind at 1.125″
  • Valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs.
  • Feuling® BeeHive® valve spring kit is direct replacement with no machining or rocker box clearance required. Up to .574″ lift for ’84-’04 Big Twin and ’86-’03 XL and up to .700″ lift for ’05-’17 Twin Cam. Larger camshafts require valve guide machining for seal-to-retainer clearance.

    • Fits Twin Cam Screamin’ Eagle heads with 5/16″ valve stems with standard keeper grooves and 0.530″ diameter valve guides.

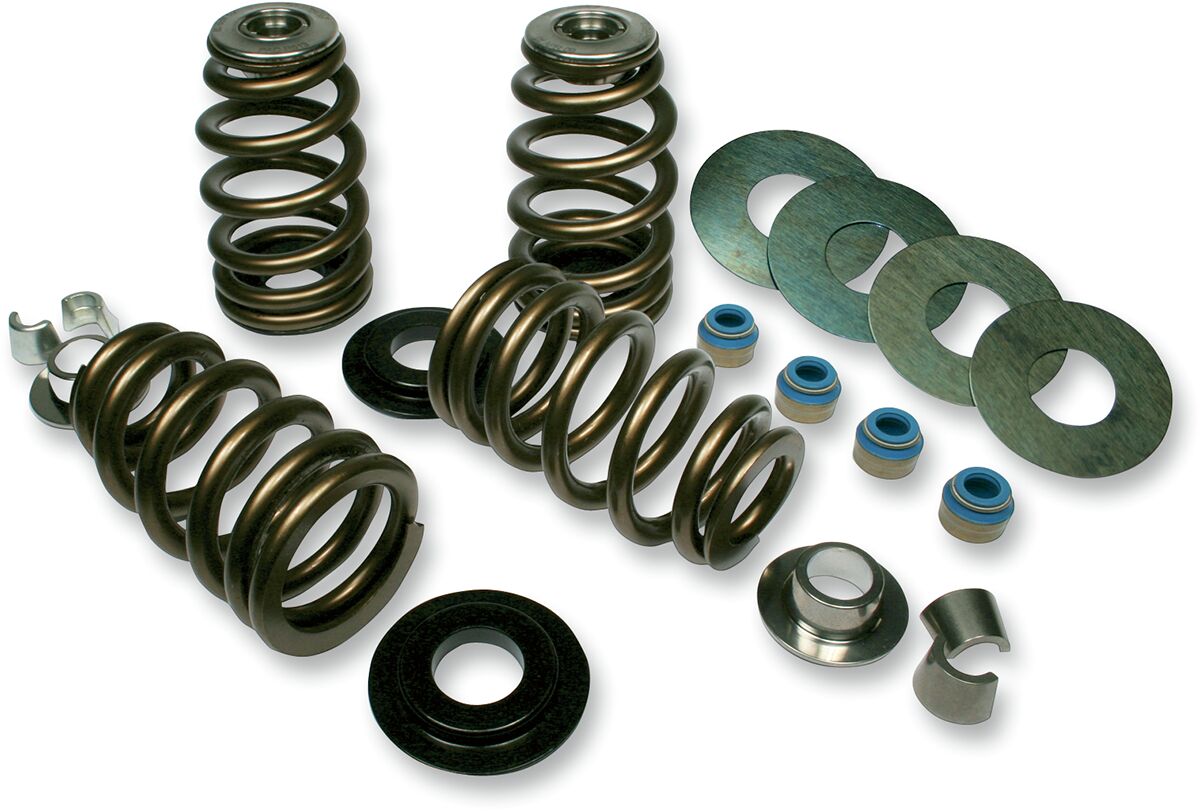

    Kit Includes:
    • 4x Springs
    • 4x Valve Seals
    • 4x Top Spring Retainers
    • 4x Bottom Spring Retainers
    • 4x Flat Washers
    • 4x Valve Keepers (8 Halves)

    Features

    Additional information

    Material

    Steel
    Model

    High-Load Beehive
    Spring Lift Imperial

    0.750"
    Collar Material

    Titanium
    Stem Diameter Imperial

    0.3125"
    Type

    Valve
    Application

    Exhaust, Intake
    Stem Diameter

    0, 3125"
    Spring Lift

    0, 750"
    Product Name

    Spring Kit
    Units

    Kit

    Compatibility

    Model – Sales nameSizeYear
    FXSE 1800 ABS – Pro Street Breakout CVO 18002016
    FXSE 1800 ABS – Pro Street Breakout CVO 18002017
    FXDFSE 1800 – Dyna Fat Bob CVO 18002009
    FXSTSSE3 1800 – Softail Springer CVO 18002009
    FLTRSE3 1800 ABS – Road Glide CVO 18002009
    FLHTCUSE4 1800 ABS – Electra Glide Ultra Classic CVO 18002009
    FXDFSE2 1800 – Dyna Fat Bob CVO 18002010
    FLSTSE2 1800 – Softail Convertible CVO 18002011
    FLSTSE 1800 – Softail Convertible CVO 18002010
    FLHXSE 1800 ABS – Street Glide CVO 18002010
    FLHTCUSE6 1800 ABS – Electra Glide Ultra Classic CVO 18002011
    FLHTCUSE5 1800 ABS – Electra Glide Ultra Classic CVO 18002010
    FLTRUSE 1800 ABS – Road Glide Ultra CVO 18002011
    FLHRSE4 1800 ABS – Road King Screamin Eagle 18002008
    FLHTCUSE3 1800 ABS – Electra Glide Ultra Classic Screamin Eagle 18002008
    FXDSE2 1800 – Dyna Screamin Eagle 18002008
    FXSTSSE2 1800 – Softail Springer Screamin Eagle 18002008
    FLSTSE2 1800 ABS – Softail Convertible CVO 18002011
    FLHXSE2 1800 ABS – Street Glide CVO 18002011
    FLHRSE3 1800 – Road King Screamin Eagle 18002007
    FLHTCUSE2 1800 – Electra Glide Ultra Classic Screamin Eagle 18002007
    FXDSE 1800 – Dyna Screamin Eagle 18002007
    FXSTSSE 1800 – Softail Springer Screamin Eagle 18002007
    FLHTCUSE 1690 – Electra Glide Ultra Classic Screamin Eagle 16902006
    FLSTFSE2 1690 – Fat Boy Screamin Eagle 16902006
    FLHTCSE2 1690 EFI – Electra Glide Screamin Eagle 16902005
    FLSTFSE 1690 – Fat Boy Screamin Eagle 16902005
    FLTRSEI2 1550 – Road Glide Screamin Eagle 15502001
    FXSTDSE 1550 – Softail Deuce Screamin Eagle 15502003
    FXSTDSE2 1550 – Softail Deuce Screamin Eagle 15502004
    FLSTSE3 1800 ABS – Softail Convertible CVO 18002012
    FLHXSE3 1800 ABS – Street Glide CVO 18002012
    FLTRXSE 1800 ABS – Road Glide Custom CVO 18002012
    FLHTCUSE7 1800 ABS – Electra Glide Ultra Classic CVO 18002012
    FLTRSEI 1550 – Road Glide Screamin Eagle 15502000
    FLHRSEI 1550 – Road King Screamin Eagle 15502002
    FLHRSEI2 1690 – Road King Screamin Eagle 16902003
    FLHTCUSE8 1800 ABS – Electra Glide Ultra Classic CVO 18002013
    FLHTCUSE8 1800 ABS – Electra Glide Ultra Classic CVO 110th Anniversary 18002013
    FLTRXSE2 1800 ABS – Road Glide Custom CVO 18002013
    FLTRXSE2 1800 ABS – Road Glide Custom CVO 110th Anniversary 18002013
    FLHRSE5 1800 ABS – Road King CVO 18002013
    FXSBSE 1800 ABS – Breakout CVO 18002013
    FLSTNSE 1800 ABS – Softail Deluxe CVO 18002014
    FXSBSE2 1800 ABS – Breakout CVO 18002014
    FLHRSE6 1800 ABS – Road King CVO 18002014
    FLHTKSE 1800 ABS – Electra Glide Ultra Limited CVO 18002014
    FLSTNSE 1800 ABS – Softail Deluxe CVO 18002015
    FLHXSE 1800 ABS – Street Glide CVO 18002015
    FLHTKSE 1800 ABS – Electra Glide Ultra Limited CVO 18002015
    FLTRUSE2 1800 ABS – Road Glide Ultra CVO 18002015
    FLHXSE 1800 ABS – Street Glide CVO 18002016
    FLHTKSE 1800 ABS – Electra Glide Ultra Limited CVO 18002016
    FLTRUSE2 1800 ABS – Road Glide Ultra CVO 18002016
    FLHTCSE 1690 EFI – Electra Glide Screamin Eagle 16902004
