High Load Beehive® Spring Kit

High Load Beehive® Spring Kit

Categories: , ,

Brand:

Vendor Number: 1207

3.789,88 lei

Add to wishlist

Description

  • Machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance
  • FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
  • Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 0.565” lift
  • Springs will accommodate over 0.600″ cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
  • Smaller lighter weight retainers which drastically reduce the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs
  • Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics

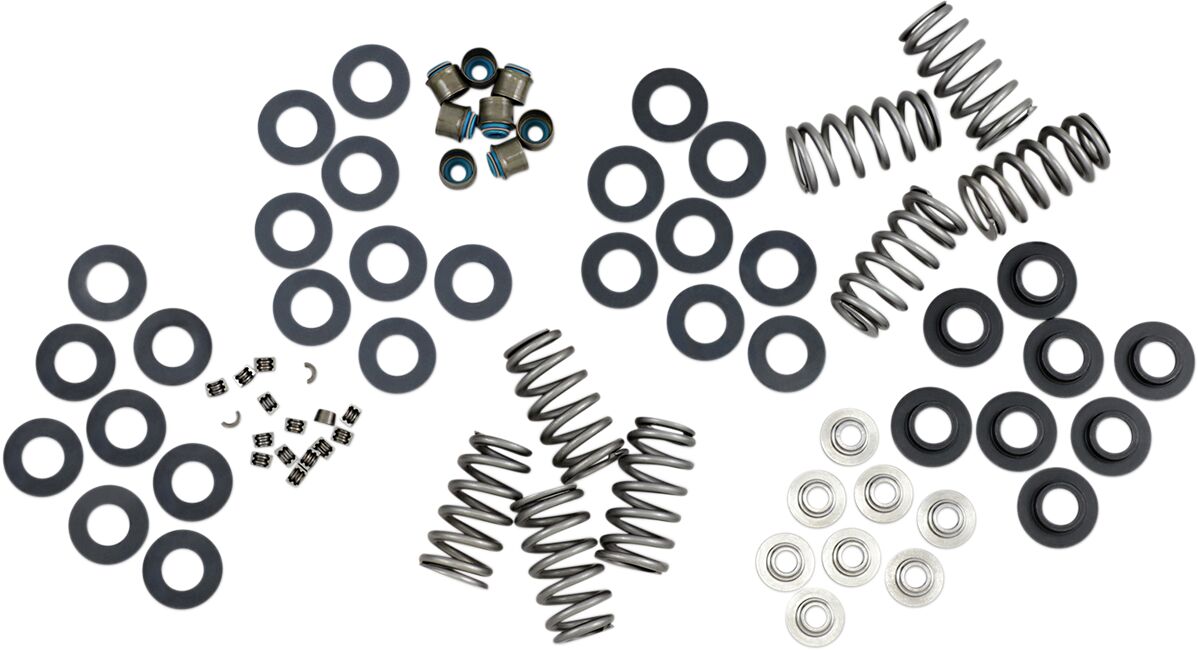

  • Kit includes: matched set of Feuling® High Load Beehive® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system
  • Seat lb/Installed Height
  • 151 lb @ 1.475″ (0.485″ Lift)
  • 144 lb @ 1.498″ (0.508″ Lift)
  • 143 lb @ 1.501″ (0.511″ Lift)
  • 140 lb @ 1.511″ (0.521″ Lift)
  • 124 lb @ 1.562″ (0.578″ Lift)
  • 120 lb @ 1.582″ (0.592″ Lift)
  • 304 lb @ 0.990″ open height
  • Coil Bind @ 0.945″
  • Recommended for +0.540” lift camshafts
  • Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
  • Made in the USA
  • Only recommended for large lift camshafts and race style engines as these valvesprings if not set properly will create extreme rocker arm deflection.
  • EU: Valve springs are a direct bolt-in replacement, no spring seat or rocker cover machining required up to 1,435 cm lift
  • EU: Springs will accommodate over 1,524 cm cam lift, but will require spring seat pocket machining on the cylinder heads to set correct spring open height
  • EU: 68,49 kg @ 3,747 cm(1,232 cm Lift
  • EU: 65,32 kg @ 3,805 cm(1,290 cm Lift)
  • EU: 64,86 kg @ 3,813 cm(1,298 cm Lift)
  • EU: 63,50 kg @ 3,838 cm(1,323 cm Lift)
  • EU: 56,25 kg @ 3,968 cm(1,468 cm Lift)
  • EU: 54,43 kg @ 4,018 cm(1,504 cm Lift)
  • EU: 137,89 kg @ 2,515 cm Open Height
  • EU: Coil Bind @ 2,400 cm
  • EU: Recommended for 1,372 cm + lift camshafts

    • Features

    Additional information

    Model

    High-Load Beehive
    Style

    Ovate Wire Beehive
    Product Name

    Spring Kit
    Type

    Valve
    Units

    Kit

    Compatibility

    Model – Sales nameSizeYear
    FLHXSE 1868 ABS – Street Glide CVO 114 18682017
    FLHTKSE 1868 ABS – Electra Glide Ultra Limited CVO 114 18682017
    FLRT 1750 – Freewheeler 107 17502017
    FLHTCUTG 1750 – Trike Tri Glide Ultra Classic 107 17502017
    FLHR 1750 – Road King 107 17502017
    FLHR 1750 ABS – Road King 107 17502017
    FLHRC 1750 ABS – Road King Classic 107 17502017
    FLHX 1750 – Street Glide 107 17502017
    FLHX 1750 ABS – Street Glide 107 17502017
    FLHXS 1750 ABS – Street Glide Special 107 17502017
    FLTRX 1750 – Road Glide 107 17502017
    FLTRX 1750 ABS – Road Glide 107 17502017
    FLTRXS 1750 ABS – Road Glide Special 107 17502017
    FLHTCU 1750 ABS – Electra Glide Ultra Classic 107 17502017
    FLTRU 1750 ABS – Road Glide Ultra 107 17502017
    FLHTK 1750 ABS – Electra Glide Ultra Limited 107 17502017
    FLHTKL 1750 ABS – Electra Glide Ultra Limited Low 107 17502017
    FLHRXS 1750 ABS – Road King Special 107 17502017
    FXBB 1750 ABS – Softail Street Bob 107 17502018
    FXFB 1750 ABS – Softail Fat Bob 107 17502018
    FXFBS 1868 ABS – Softail Fat Bob 114 18682018
    FXBR 1750 ABS – Softail Breakout 107 17502018
    FXBRS 1868 ABS – Softail Breakout 114 18682018
    FXBRS 1868 ABS – Softail Breakout Anniversary (ANX) 114 18682018
    FLSL 1750 ABS – Softail Slim 107 17502018
    FXLR 1750 ABS – Softail Low Rider 107 17502018
    FLFB 1750 ABS – Softail Fat Boy 107 17502018
    FLFBS 1868 ABS – Softail Fat Boy 114 18682018
    FLFBS 1868 ABS – Softail Fat Boy Anniversary (ANX) 114 18682018
    FLFBS 1868 ABS – Softail Fat Boy Anniversary (ANV) 114 18682018
    FLDE 1750 ABS – Softail Deluxe 107 17502018
    FLHC 1750 ABS – Softail Heritage Classic 107 17502018
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682018
    FLHCS 1868 ABS – Softail Heritage Classic Anniversary 114 18682018
    FLHR 1750 – Road King 107 17502018
    FLHR 1750 ABS – Road King 107 17502018
    FLHRXS 1750 ABS – Road King Special 107 17502018
    FLHX 1750 – Street Glide 107 17502018
    FLHX 1750 ABS – Street Glide 107 17502018
    FLHXS 1750 ABS – Street Glide Special 107 17502018
    FLHX 1750 ABS – Street Glide Anniversary 107 17502018
    FLHXS 1750 ABS – Street Glide Special Anniversary 107 17502018
    FLHTCU 1750 ABS – Electra Glide Ultra Classic 107 17502018
    FLHTK 1750 ABS – Ultra Limited 107 17502018
    FLHTK 1750 ABS – Ultra Limited Shrine Edition 107 17502018
    FLHTK 1750 ABS – Ultra Limited Anniversary 107 17502018
    FLHTKL 1750 ABS – Ultra Limited Low 107 17502018
    FLTRX 1750 – Road Glide 107 17502018
    FLTRX 1750 ABS – Road Glide 107 17502018
    FLTRXS 1750 ABS – Road Glide Special 107 17502018
    FLTRU 1750 ABS – Road Glide Ultra 107 17502018
    FLHTCUTG 1750 – Tri Glide Ultra 107 17502018
    FLHTCUTG 1750 – Tri Glide Ultra Anniversary 107 17502018
    FLRT 1750 – Freewheeler 107 17502018
    FLHXSE 1923 ABS – Street Glide CVO 117 19232018
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232018
    FLHTKSE 1923 ABS – Ultra Limited CVO Anniversary 117 19232018
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232018
    FLSB 1750 ABS – Softail Sport Glide 107 17502018
    FLHRC 1750 ABS – Road King Classic 107 17502018
    FLDE 1750 ABS – Softail Deluxe 107 17502019
    FLFB 1750 ABS – Softail Fat Boy 107 17502019
    FLFBS 1868 ABS – Softail Fat Boy 114 18682019
    FLHC 1750 ABS – Softail Heritage Classic 107 17502019
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682019
    FLHR 1750 – Road King 107 17502019
    FLHR 1750 ABS – Road King 107 17502019
    FLHRC 1750 ABS – Road King Classic 107 17502019
    FLHRXS 1868 ABS – Road King Special 114 18682019
    FLHTCU 1750 ABS – Electra Glide Ultra Classic 107 17502019
    FLHTCUTG 1750 ABS – Tri Glide Ultra 107 17502019
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682019
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682019
    FLHTKL 1868 ABS – Ultra Limited Low 114 18682019
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232019
    FLHX 1750 – Street Glide 107 17502019
    FLHX 1750 ABS – Street Glide 107 17502019
    FLHXS 1868 ABS – Street Glide Special 114 18682019
    FLHXSE 1923 ABS – Street Glide CVO 117 19232019
    FLRT 1750 ABS – Freewheeler 107 17502019
    FLSB 1750 ABS – Softail Sport Glide 107 17502019
    FLSL 1750 ABS – Softail Slim 107 17502019
    FLTRU 1868 ABS – Road Glide Ultra 114 18682019
    FLTRX 1750 – Road Glide 107 17502019
    FLTRX 1750 ABS – Road Glide 107 17502019
    FLTRXS 1868 ABS – Road Glide Special 114 18682019
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232019
    FXBB 1750 ABS – Softail Street Bob 107 17502019
    FXBR 1750 ABS – Softail Breakout 107 17502019
    FXBRS 1868 ABS – Softail Breakout 114 18682019
    FXDR 1868 ABS – Softail King 114 18682019
    FXFB 1750 ABS – Softail Fat Bob 107 17502019
    FXFBS 1868 ABS – Softail Fat Bob 114 18682019
    FXLR 1750 ABS – Softail Low Rider 107 17502019
    FLDE 1750 ABS – Softail Deluxe 107 17502020
    FLFB 1750 ABS – Softail Fat Boy 107 17502020
    FLFBS 1868 ABS – Softail Fat Boy 114 18682020
    FLHC 1750 ABS – Softail Heritage Classic 107 17502020
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682020
    FLHR 1750 ABS – Road King 107 17502020
    FLHRXS 1868 ABS – Road King Special 114 18682020
    FLHT 1750 ABS – Electra Glide Standard 107 17502020
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682020
    FLHTCUTGSE 1923 ABS – Tri Glide Ultra CVO 117 19232020
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682020
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682020
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232020
    FLHX 1750 ABS – Street Glide 107 17502020
    FLHXS 1868 ABS – Street Glide Special 114 18682020
    FLHXSE 1923 ABS – Street Glide CVO 117 19232020
    FLRT 1868 ABS – Freewheeler 114 18682020
    FLSB 1750 ABS – Softail Sport Glide 107 17502020
    FLSL 1750 ABS – Softail Slim 107 17502020
    FLTRK 1868 ABS – Road Glide Limited 114 18682020
    FLTRX 1750 ABS – Road Glide 107 17502020
    FLTRXS 1868 ABS – Road Glide Special 114 18682020
    FXBB 1750 ABS – Softail Street Bob 107 17502020
    FXBR 1750 ABS – Softail Breakout 107 17502020
    FXBRS 1868 ABS – Softail Breakout 114 18682020
    FXDRS 1868 ABS – Softail King 114 18682020
    FXFBS 1868 ABS – Softail Fat Bob 114 18682020
    FXLR 1750 ABS – Softail Low Rider 107 17502020
    FXLRS 1868 ABS – Softail Low Rider S 114 18682020
    FLHT 1750 ABS – Electra Glide Standard 107 17502019
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232020
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682021
    FLSL 1750 ABS – Softail Slim 107 17502021
    FXST 1750 – Softail Standard 17502021
    FXBRS 1868 ABS – Softail Breakout 114 18682021
    FLFBS 1868 ABS – Softail Fat Boy 114 18682021
    FLHC 1750 ABS – Softail Heritage Classic 107 17502021
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682021
    FLHR 1750 ABS – Road King 107 17502021
    FLHRXS 1868 ABS – Road King Special 114 18682021
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682021
    FLHTCUTGSE 1923 ABS – Tri Glide Ultra CVO 117 19232021
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682021
    FLHTKSE 1923 ABS – Ultra Limited CVO 117 19232021
    FLHXS 1868 ABS – Street Glide Special 114 18682021
    FLHXSE 1923 ABS – Street Glide CVO 117 19232021
    FLRT 1868 ABS – Freewheeler 114 18682021
    FLSB 1750 ABS – Softail Sport Glide 107 17502021
    FLTRK 1868 ABS – Road Glide Limited 114 18682021
    FLTRXS 1868 ABS – Road Glide Special 114 18682021
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232021
    FXBBS 1868 ABS – Softail Street Bob 114 18682021
    FXFB 1750 ABS – Softail Fat Bob 107 17502021
    FXFBS 1868 ABS – Softail Fat Bob 114 18682021
    FXLRS 1868 ABS – Softail Low Rider S 114 18682021
    FXST 1750 ABS – Softail Standard 17502021
    FLHT 1750 ABS – Electra Glide Standard 107 17502021
    FLHX 1750 ABS – Street Glide 107 17502021
    FLTRX 1750 ABS – Road Glide 107 17502021
    FXBBS 1868 – Softail Street Bob 114 18682021
    FLHXS 1868 ABS – Street Glide Special 114 Arctic Blast Limited 18682021
    FXST 1750 ABS – Softail Standard 17502022
    FXBBS 1868 ABS – Softail Street Bob 114 18682022
    FLFBS 1868 ABS – Softail Fat Boy 114 18682022
    FXFBS 1868 ABS – Softail Fat Bob 114 18682022
    FLHC 1750 ABS – Softail Heritage Classic 107 17502022
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682022
    FLSB 1750 ABS – Softail Sport Glide 107 17502022
    FXBRS 1868 ABS – Softail Breakout 114 18682022
    FLHR 1750 ABS – Road King 107 17502022
    FLHRXS 1868 ABS – Road King Special 114 18682022
    FLTRXS 1868 ABS – Road Glide Special 114 18682022
    FLHXS 1868 ABS – Street Glide Special 114 18682022
    FLTRK 1868 ABS – Road Glide Limited 114 18682022
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682022
    FLHT 1750 ABS – Electra Glide Standard 107 17502022
    FLTRX 1750 ABS – Road Glide 107 17502022
    FLHX 1750 ABS – Street Glide 107 17502022
    FLRT 1868 ABS – Freewheeler 114 18682022
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682022
    FLHXSE 1923 ABS – Street Glide CVO 117 19232022
    FXLRS 1923 ABS – Softail Low Rider S 117 19232022
    FXLRST 1923 ABS – Softail Low Rider ST 117 19232022
    FLHXST 1923 ABS – Street Glide ST 117 19232022
    FLTRXST 1923 ABS – Road Glide ST 117 19232022
    FLTRXSE 1923 ABS – Road Glide CVO 117 19232022
    FLTRKSE 1923 ABS – Road Glide Limited CVO 117 19232022
    FLHTCUTGSE 1923 ABS – Tri Glide CVO 117 19232022
    FXLRST 1923 ABS – Softail Low Rider ST EL Diablo 117 19232022
    FLTRT 1868 ABS – Road Glide 3 114 18682023
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682022
    FLHTK 1868 ABS – Ultra Limited Shrine Edition 114 18682023
    FLTRXS 1868 ABS – Road Glide Special Anniversary 114 18682023
    FLTRKSE 1923 ABS – Road Glide Limited Anniversary CVO 117 19232023
    FLHXS 1868 ABS – Street Glide Special Anniversary 114 18682023
    FLHTK 1868 ABS – Ultra Limited Anniversary 114 18682023
    FLSB 1750 ABS – Softail Sport Glide 107 17502023
    FXLRST 1923 ABS – Softail Low Rider ST 117 19232023
    FXLRS 1923 ABS – Softail Low Rider S 117 19232023
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682023
    FXFBS 1868 ABS – Softail Fat Bob 114 18682023
    FLFBS 1868 ABS – Softail Fat Boy 114 18682023
    FXBBS 1868 ABS – Softail Street Bob 114 18682023
    FXST 1750 ABS – Softail Standard 17502023
    FLHRXS 1868 ABS – Road King Special 114 18682023
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682023
    FLHTK 1868 ABS – Glide Ultra Limited 114 18682023
    FLHX 1750 ABS – Street Glide 107 17502023
    FLHXS 1868 ABS – Street Glide Special 114 18682023
    FLHXST 1923 ABS – Street Glide ST 117 19232023
    FLRT 1868 ABS – Freewheeler 114 18682023
    FLTRK 1868 ABS – Road Glide Limited 114 18682023
    FLTRXST 1923 ABS – Road Glide ST 117 19232023
    FLTRX 1750 ABS – Road Glide 107 17502023
    FLTRXS 1868 ABS – Road Glide Special 114 18682023
    FXBR 1923 ABS – Softail Breakout 117 19232023
    FXBR 1923 ABS – Softail Breakout 117 19232024
    FXST 1750 ABS – Softail Standard 17502024
    FXBBS 1868 ABS – Softail Street Bob 114 18682024
    FLHCS 1868 ABS – Softail Heritage Classic 114 18682024
    FXLRS 1923 ABS – Softail Low Rider S 117 19232024
    FXLRST 1923 ABS – Softail Low Rider ST 117 19232024
    FLFBS 1868 ABS – Softail Fat Boy 114 18682024
    FLRT 1868 ABS – Freewheeler 114 18682024
    FLHTCUTG 1868 ABS – Tri Glide Ultra 114 18682024
    FLTRT 1868 ABS – Road Glide 3 114 18682024
    FLSB 1750 ABS – Softail Sport Glide 107 17502024
    FLI 1868 ABS – Hydra-Glide Revival 114 18682024

    Shop

    USEFUL LINKS

    CONTACT

    FOLLOW US

    Instagram Facebook Tiktok

    © Copyright 2025 YzyFlow Choppers. All Rights Reserved.

    Terms and Conditions, Warranty

    Privacy Policy
