Beehive® Valve Spring Kit

Value

Categories: Engine Group, Parts, Valves Parts

Brand: Feuling Oil Pump Corp

Vendor Number: 1120

1.466,98 lei

Description

Made from premium stress-relieved conical ovate wire

Features extremely high-level of fatigue life

Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion

Designed to handle the demands of performance engines with 0.585″ and smaller lift camshafts

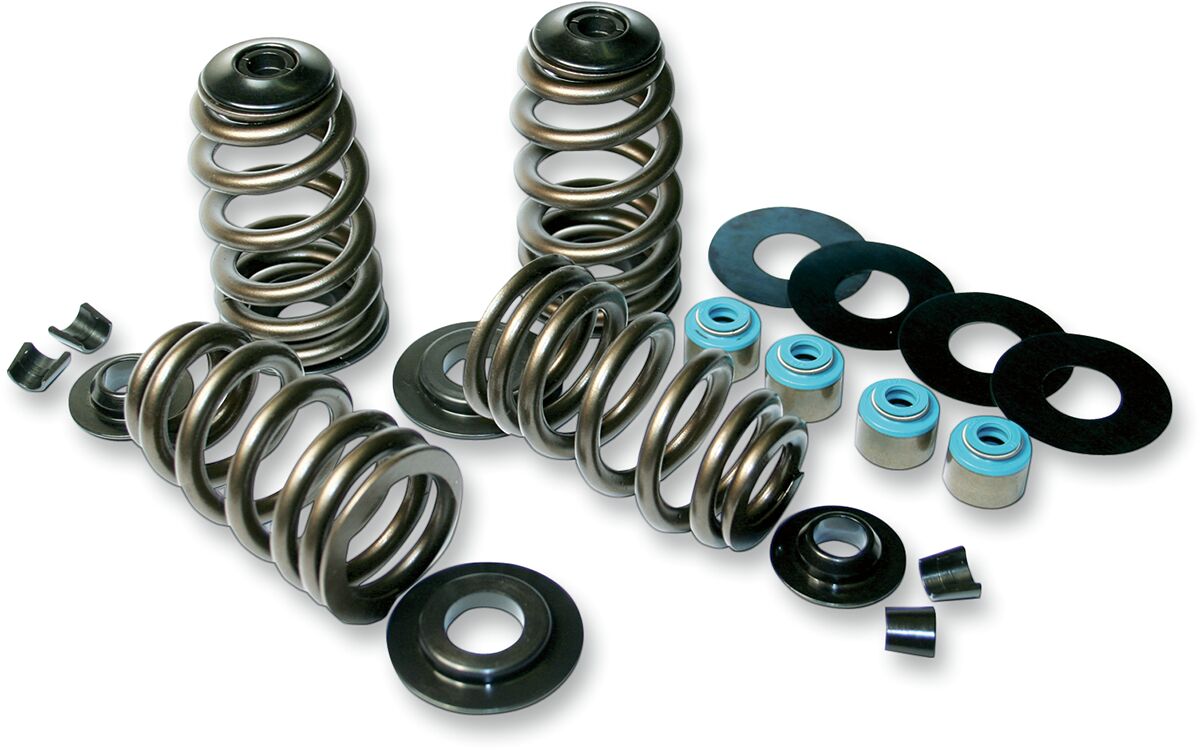

Kit includes: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system

Seat lb/installed height; 183 lb at 1.770″ (0.510″ lift)

175 lb at 1.795″ (0.535″ lift)

172 lb at 1.813″ (0.553″ lift)

165 lb at 1.835″ (0.574″ lift)

160 lb at 1.845″ (0.585″ lift)

380 lb at 1.260″ open height coil bind at 1.190″

Dyno proven and track tested

Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs

Made in the USA

Econo BeeHive® kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574″ lift for ’84-’04 Big Twin and ’86-’03 XL and up to .585″ lift for ’05-’17 Twin Cam.

EU: Designed to handle the demands of performance engines with 1,486 cm and smaller lift camshafts.

EU: Seat installed height; 83,00 kg at 4,50 cm (1,30 cm) lift)

EU: 79,38 kg at 4,56 cm (1,36 cm) lift)

EU: 78,02 kg at 4,61 cm (1,41 cm) lift)

EU: 74,84 kg at 4,66 cm (1,46 cm) lift)

EU: 72,57 kg at 4,69 cm (1,49 cm) lift)

EU: 172,37 kg at 3,20 cm open height coil bind at 3,02 cm

EU: Econo BeeHive® kits are direct replacement with no machining or rocker box clearance required for cams up to 1,458 cm lift for 84-04 Big Twin and 86-03 XL and up to .585″ lift for 05-17 Twin Cam.

104667, 104669, 117339, 117341, 117343, 117345, 117347, 117349, 117351, 117353, 117355, 117357, 117359, 117361, 117363, 117365, 117367, 117369, 117371, 117373, 117393, 117395, 117397, 117399, 117401, 4609, 46093, 46097, 46099, 48039, 48041, 48043, 4905, 4907, 4909, 4911, 4913, 4915, 4917, 4919, 4921, 4923, 4925, 4927, 4929, 4931, 4933, 4935, 4937, 4939, 4941, 4943, 4945, 4947, 4949, 4951, 4953, 4955, 4957, 4959, 4961, 4963, 4965, 4979, 4981, 4983, 4985, 4987, 4989, 4991, 4993, 4995, 4997, 4999, 5001, 5003, 5005, 5007, 5009, 5011, 5013, 5015, 5017, 5019, 5021, 5023, 5025, 5027, 5029, 5031, 5033, 5035, 5037, 5039, 5041, 5043, 5045, 5047, 5049, 5051, 5053, 5055, 5057, 5059, 5061, 5063, 5065, 5067, 5069, 5071, 5073, 5075, 5077, 5079, 5081, 5083, 5085, 5087, 5089, 5093, 5095, 5097, 5099, 5101, 5103, 5105, 5107, 5109, 5111, 5113, 5115, 5117, 5119, 5121, 5123, 5125, 5127, 5129, 5131, 5133, 5135, 5137, 5139, 5141, 5143, 5145, 5147, 5149, 5151, 5153, 5155, 5157, 5159, 5161, 5163, 5165, 5167, 5169, 5171, 5173, 5175, 5177, 5179, 5181, 5183, 5185, 5187, 5189, 5191, 5193, 5195, 5197, 5199, 5201, 5203, 5205, 5207, 5209, 5211, 5213, 5215, 5217, 5219, 5221, 5223, 5225, 5227, 5229, 5231, 5233, 5235, 5237, 5239, 5241, 5243, 5245, 5247, 5249, 5251, 5253, 5255, 5257, 5259, 5261, 5263, 5265, 5267, 5269, 5271, 5273, 5275, 5277, 5279, 5281, 5283, 5285, 5287, 5289, 5291, 5293, 5295, 5297, 5299, 5301, 5303, 5305, 5307, 5309, 5311, 5313, 5315, 5317, 5319, 5321, 5323, 5325, 5327, 5329, 5331, 5333, 5335, 5337, 5339, 5341, 5343, 5345, 5347, 5349, 5351, 5353, 5355, 5357, 5359, 5361, 5363, 5365, 5367, 5369, 5371, 5373, 5375, 5377, 5379, 5381, 5383, 5385, 5387, 5389, 5391, 5393, 5395, 5397, 5399, 5401, 5403, 5405, 5407, 5409, 5411, 5413, 5415, 5417, 5419, 5421, 5423, 5425, 5427, 5429, 5431, 5433, 5435, 5437, 5439, 5441, 5443, 5445, 5447, 5449, 5451, 5453, 5455, 5457, 5459, 5461, 5463, 5465, 5467, 5469, 5471, 5473, 5475, 5477, 5479, 5481, 5483, 5485, 5487, 5489, 5491, 5493, 5495, 5497, 5499, 5501, 5503, 5505, 5507, 5509, 5511, 5513, 5515, 5517, 5519, 5521, 5523, 5525, 5527, 5529, 5531, 5533, 5535, 5537, 5539, 5541, 5543, 5545, 5547, 5549, 5551, 5553, 5555, 5557, 5559, 5561, 5563, 5565, 5567, 5569, 5571, 5573, 5575, 5577, 5579, 5581, 5583, 5585, 5587, 5589, 5591, 5593, 5595, 5597, 5599, 5601, 5603, 5605, 5607, 5609, 5611, 5613, 5615, 5617, 5619, 5621, 5623, 5625, 5627, 5629, 5631, 5633, 5635, 5637, 5639, 5641, 5643, 5645, 5647, 5649, 5651, 5653, 5655, 5657, 5659, 5661, 5663, 5665, 5667, 5669, 5671, 5673, 5675, 5677, 5679, 5681, 5683, 5685, 5687, 5689, 5691, 5693, 5695, 5697, 5699, 5701, 5703, 5705, 5707, 5709, 5711, 5713, 5715, 5717, 5719, 5721, 5723, 5725, 5727, 5729, 5731, 5733, 5735, 5737, 5739, 5741, 5743, 5745, 5747, 5749, 5751, 5753, 5755, 5757, 5759, 5761, 5763, 5765, 5767, 5775, 5777, 5779, 5781, 5783, 5785, 5787, 5789, 5791, 5793, 5795, 5797, 5799, 66803, 66805, 68949, 68951, 68953, 72175, 72177, 74375, 74377, 74379, 96567, 96569, 96571, 96609, 96611, 96613, 96615, 96617, 96623, 96625, 98749

Features

Additional information

Material	Steel
Model	Econo Beehive
Type	Valve
Application	Exhaust
Style	Ovate Wire Beehive
Units	Kit
Stem Diameter	0, 3125"
Product Name	Spring Kit
Stem Diameter Imperial	0.3125"

Compatibility

Model – Sales name	Size	Year
FLHRI 1450 EFI – Road King	1450	2001
FLHRI 1450 EFI – Road King	1450	2002
XL 883 – Sportster	883	1986
XL 883 – Sportster	883	1987
XL 883 – Sportster	883	1988
XL 883 – Sportster	883	1989
XL 883 – Sportster	883	1990
XL 883 – Sportster	883	1991
XL 883 – Sportster	883	1992
XL 883 – Sportster	883	1993
XL 883 – Sportster	883	1994
XL 883 – Sportster	883	1995
XL 883 – Sportster	883	1996
XL 883 – Sportster	883	1997
XL 883 – Sportster	883	1998
XL 883 – Sportster	883	1999
XL 883 – Sportster	883	2000
XL 883 – Sportster	883	2001
XL 883 – Sportster	883	2002
XL 883 – Sportster	883	2003
FXSTC 1340 – Softail Custom	1340	1999
FLHX 1340 – Electra Glide Special	1340	1984
FLHX 1340 – Electra Glide Special	1340	1985
FLH – Electra Glide Standard	1340	1984
FLH – Electra Glide Standard	1340	1985
FLTR 1450 – Road Glide	1450	2003
FLHRS 1450 – Road King Custom	1450	2004
FXRDG 1340 – Disc Glide	1340	1985
FXRD 1340 – Disc Glide	1340	1986
FXDG 1340 –	1340	1984
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	1999
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	2000
FLHR 1450 – Road King	1450	2004
FLHRI 1450 EFI – Road King	1450	2004
FLHRC 1450 – Road King Classic	1450	2004
FLHRCI 1450 EFI – Road King Classic	1450	2004
FLHRSI 1450 EFI – Road King Custom	1450	2004
FLHT 1450 – Electra Glide	1450	2004
FLHTI 1450 EFI – Electra Glide	1450	2004
FLHTC 1450 – Electra Glide Classic	1450	2004
FLHTCI 1450 EFI – Electra Glide Classic	1450	2004
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2004
FLSTC 1450 – Heritage Softail Classic	1450	2004
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2004
FLSTF 1450 – Fat Boy	1450	2004
FLSTFI 1450 EFI – Fat Boy	1450	2004
FLTRI 1450 EFI – Road Glide	1450	2004
FXD 1450 – Dyna Super Glide	1450	2004
FXDI 1450 EFI – Dyna Super Glide	1450	2004
FXDL 1450 – Dyna Low Rider	1450	2004
FXDLI 1450 EFI – Dyna Low Rider	1450	2004
FXDWG 1450 – Dyna Wide Glide	1450	2004
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2004
FXDX 1450 – Dyna Super Glide Sport	1450	2004
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2004
FXST 1450 – Softail	1450	2004
FXSTI 1450 EFI – Softail	1450	2004
FXSTB 1450 – Softail Night Train	1450	2004
FXSTBI 1450 EFI – Softail Night Train	1450	2004
FXSTD 1450 – Softail Deuce	1450	2004
FXSTDI 1450 EFI – Softail Deuce	1450	2004
FXSTS 1450 – Softail Springer	1450	2004
FXSTSI 1450 EFI – Softail Springer	1450	2004
FLHR 1450 – Road King	1450	2003
FLHRI 1450 EFI – Road King	1450	2003
FLHRCI 1450 EFI – Road King Classic	1450	2003
FLHT 1450 – Electra Glide	1450	2003
FLHTC 1450 – Electra Glide Classic	1450	2003
FLHTCI 1450 EFI – Electra Glide Classic	1450	2003
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2003
FLSTC 1450 – Heritage Softail Classic	1450	2003
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2003
FLSTF 1450 – Fat Boy	1450	2003
FLSTFI 1450 EFI – Fat Boy	1450	2003
FLSTS 1450 – Heritage Softail Springer	1450	2003
FLSTSI 1450 EFI – Heritage Softail Springer	1450	2003
FLTRI 1450 EFI – Road Glide	1450	2003
FXD 1450 – Dyna Super Glide	1450	2003
FXDL 1450 – Dyna Low Rider	1450	2003
FXDWG 1450 – Dyna Wide Glide	1450	2003
FXDX 1450 – Dyna Super Glide Sport	1450	2003
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2003
FXST 1450 – Softail	1450	2003
FXSTI 1450 EFI – Softail	1450	2003
FXSTB 1450 – Softail Night Train	1450	2003
FXSTBI 1450 EFI – Softail Night Train	1450	2003
FXSTD 1450 – Softail Deuce	1450	2003
FXSTDI 1450 EFI – Softail Deuce	1450	2003
FXSTS 1450 – Softail Springer	1450	2003
FXSTSI 1450 EFI – Softail Springer	1450	2003
XLH 883 – Sportster	883	2003
XLH 883 – Sportster Hugger	883	2003
XL 883 R – Roadster	883	2003
XL 883 C – Sportster 53 Custom	883	2003
XL 1200 S – Sport	1200	2003
XL 1200 C – Sportster Custom	1200	2003
XLH 1200 – Sportster	1200	2003
FLHR 1450 – Road King	1450	2002
FLHRCI 1450 EFI – Road King Classic	1450	2002
FLHT 1450 – Electra Glide	1450	2002
FLHTC 1450 – Electra Glide Classic	1450	2002
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2002
FLSTC 1450 – Heritage Softail Classic	1450	2002
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2002
FLSTF 1450 – Fat Boy	1450	2002
FLSTFI 1450 EFI – Fat Boy	1450	2002
FLSTS 1450 – Heritage Softail Springer	1450	2002
FLTR 1450 – Road Glide	1450	2002
FLTRI 1450 EFI – Road Glide	1450	2002
FXD 1450 – Dyna Super Glide	1450	2002
FXDL 1450 – Dyna Low Rider	1450	2002
FXDWG 1450 – Dyna Wide Glide	1450	2002
FXDX 1450 – Dyna Super Glide Sport	1450	2002
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2002
FXST 1450 – Softail	1450	2002
FXSTB 1450 – Softail Night Train	1450	2002
FXSTD 1450 – Softail Deuce	1450	2002
FXSTDI 1450 EFI – Softail Deuce	1450	2002
FXSTS 1450 – Softail Springer	1450	2002
XLH 883 – Sportster	883	2002
XLH 883 – Sportster Hugger	883	2002
XL 883 C – Sportster 53 Custom	883	2002
XL 883 R – Roadster	883	2002
XL 1200 S – Sport	1200	2002
XL 1200 C – Sportster Custom	1200	2002
XLH 1200 – Sportster	1200	2002
FLHR 1450 – Road King	1450	2001
FLHRCI 1450 EFI – Road King Classic	1450	2001
FLHT 1450 – Electra Glide	1450	2001
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2001
FLSTC 1450 – Heritage Softail Classic	1450	2001
FLSTCI 1450 EFI – Heritage Softail Classic	1450	2001
FLSTF 1450 – Fat Boy	1450	2001
FLSTFI 1450 EFI – Fat Boy	1450	2001
FLSTS 1450 – Heritage Softail Springer	1450	2001
FLTR 1450 – Road Glide	1450	2001
FLTRI 1450 EFI – Road Glide	1450	2001
FLTRSEI2 1550 – Road Glide Screamin Eagle	1550	2001
FXD 1450 – Dyna Super Glide	1450	2001
FXDL 1450 – Dyna Low Rider	1450	2001
FXDWG 1450 – Dyna Wide Glide	1450	2001
FXDX 1450 – Dyna Super Glide Sport	1450	2001
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2001
FXST 1450 – Softail	1450	2001
FXSTB 1450 – Softail Night Train	1450	2001
FXSTD 1450 – Softail Deuce	1450	2001
FXSTDI 1450 EFI – Softail Deuce	1450	2001
FXSTS 1450 – Softail Springer	1450	2001
XL 883 C – Sportster 53 Custom	883	2001
XLH 883 – Sportster	883	2001
XLH 883 – Sportster Hugger	883	2001
XL 1200 S – Sport	1200	2001
XL 1200 C – Sportster Custom	1200	2001
XLH 1200 – Sportster	1200	2001
FLHR 1450 – Road King	1450	2000
FLHRI 1450 EFI – Road King	1450	2000
FLHRCI 1450 EFI – Road King Classic	1450	2000
FLHT 1450 – Electra Glide	1450	2000
FLHTCI 1450 EFI – Electra Glide Classic	1450	2000
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2000
FLSTC 1450 – Heritage Softail Classic	1450	2000
FLSTF 1450 – Fat Boy	1450	2000
FLSTS 1450 – Heritage Softail Springer	1450	2000
FLTR 1450 – Road Glide	1450	2000
FLTRI 1450 EFI – Road Glide	1450	2000
FXD 1450 – Dyna Super Glide	1450	2000
FXDL 1450 – Dyna Low Rider	1450	2000
FXDWG 1450 – Dyna Wide Glide	1450	2000
FXDX 1450 – Dyna Super Glide Sport	1450	2000
FXST 1450 – Softail	1450	2000
FXSTB 1450 – Softail Night Train	1450	2000
FXSTD 1450 – Softail Deuce	1450	2000
FXSTS 1450 – Softail Springer	1450	2000
XL 883 C – Sportster 53 Custom	883	2000
XLH 883 – Sportster	883	2000
XLH 883 – Sportster Hugger	883	2000
XL 1200 S – Sport	1200	2000
XL 1200 C – Sportster Custom	1200	2000
XLH 1200 – Sportster	1200	2000
FLSTC 1340 – Heritage Softail Classic	1340	1999
FLSTF 1340 – Fat Boy	1340	1999
FLSTS 1340 – Heritage Softail Springer	1340	1999
FXSTB 1340 – Softail Night Train	1340	1999
FXST 1340 – Softail	1340	1999
FXSTS 1340 – Softail Springer	1340	1999
FLHR 1450 – Road King	1450	1999
FLHRI 1450 EFI – Road King	1450	1999
FLHRCI 1450 EFI – Road King Classic	1450	1999
FLHT 1450 – Electra Glide	1450	1999
FLHTCI 1450 EFI – Electra Glide Classic	1450	1999
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	1999
FLTR 1450 – Road Glide	1450	1999
FLTRI 1450 EFI – Road Glide	1450	1999
FXD 1450 – Dyna Super Glide	1450	1999
FXDL 1450 – Dyna Low Rider	1450	1999
FXDWG 1450 – Dyna Wide Glide	1450	1999
FXDX 1450 – Dyna Super Glide Sport	1450	1999
XL 883 C – Sportster 53 Custom	883	1999
XLH 883 – Sportster	883	1999
XLH 883 – Sportster Hugger	883	1999
XL 1200 C – Sportster Custom	1200	1999
XL 1200 S – Sport	1200	1999
XLH 1200 – Sportster	1200	1999
FLHR 1340 – Road King	1340	1998
FLHRCI 1340 EFI – Road King Classic	1340	1998
FLHT 1340 – Electra Glide Standard	1340	1998
FLHTC 1340 – Electra Glide Classic	1340	1998
FLHTCI 1340 EFI – Electra Glide Classic	1340	1998
FLHTCUI 1340 EFI – Electra Glide Ultra Classic	1340	1998
FLSTC 1340 – Heritage Softail Classic	1340	1998
FLSTF 1340 – Fat Boy	1340	1998
FLSTS 1340 – Heritage Softail Springer	1340	1998
FLTRI 1340 EFI – Road Glide	1340	1998
FXD 1340 – Dyna Super Glide	1340	1998
FXDL 1340 – Dyna Low Rider	1340	1998
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	1998
FXDWG 1340 – Dyna Wide Glide	1340	1998
FXSTB 1340 – Softail Night Train	1340	1998
FXSTC 1340 – Softail Custom	1340	1998
FXSTS 1340 – Softail Springer	1340	1998
XLH 883 – Sportster	883	1998
XLH 883 – Sportster Hugger	883	1998
XLH 1200 – Sportster	1200	1998
XL 883 C – Sportster 53 Custom	883	1998
XL 1200 C – Sportster Custom	1200	1998
XL 1200 S – Sport	1200	1998
FLHR 1340 – Road King	1340	1997
FLHRI 1340 EFI – Road King	1340	1997
FLHT 1340 – Electra Glide Standard	1340	1997
FLHTC 1340 – Electra Glide Classic	1340	1997
FLHTCI 1340 EFI – Electra Glide Classic	1340	1997
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1997
FLHTCUI 1340 EFI – Electra Glide Ultra Classic	1340	1997
FLSTC 1340 – Heritage Softail Classic	1340	1997
FLSTF 1340 – Fat Boy	1340	1997
FLSTS 1340 – Heritage Softail Springer	1340	1997
FXD 1340 – Dyna Super Glide	1340	1997
FXDL 1340 – Dyna Low Rider	1340	1997
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	1997
FXDWG 1340 – Dyna Wide Glide	1340	1997
FXSTSB 1340 – Bad Boy	1340	1997
FXSTC 1340 – Softail Custom	1340	1997
FXSTS 1340 – Softail Springer	1340	1997
XLH 883 – Sportster	883	1997
XLH 883 – Sportster Hugger	883	1997
XLH 1200 – Sportster	1200	1997
XL 1200 C – Sportster Custom	1200	1997
XL 1200 S – Sport	1200	1997
FLHR 1340 – Road King	1340	1996
FLHRI 1340 EFI – Road King	1340	1996
FLHT 1340 – Electra Glide Standard	1340	1996
FLHTC 1340 – Electra Glide Classic	1340	1996
FLHTCI 1340 EFI – Electra Glide Classic	1340	1996
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1996
FLHTCUI 1340 EFI – Electra Glide Ultra Classic	1340	1996
FLSTC 1340 – Heritage Softail Classic	1340	1996
FLSTF 1340 – Fat Boy	1340	1996
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1996
FLTCU 1340 – Tour Glide Ultra Classic	1340	1996
FXD 1340 – Dyna Super Glide	1340	1996
FXDL 1340 – Dyna Low Rider	1340	1996
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	1996
FXDWG 1340 – Dyna Wide Glide	1340	1996
FXSTSB 1340 – Bad Boy	1340	1996
FXSTC 1340 – Softail Custom	1340	1996
FXSTS 1340 – Softail Springer	1340	1996
XLH 883 – Sportster	883	1996
XLH 883 – Sportster Hugger	883	1996
XLH 1200 – Sportster	1200	1996
XL 1200 C – Sportster Custom	1200	1996
XL 1200 S – Sport	1200	1996
FLHR 1340 – Road King	1340	1995
FLHTC 1340 – Electra Glide Classic	1340	1995
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1995
FLHTCUI 1340 EFI – Electra Glide Ultra Classic Special Anniversary Edition	1340	1995
FLSTC 1340 – Heritage Softail Classic	1340	1995
FLSTF 1340 – Fat Boy	1340	1995
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1995
FLTCU 1340 – Tour Glide Ultra Classic	1340	1995
FXD 1340 – Dyna Super Glide	1340	1995
FXDL 1340 – Dyna Low Rider	1340	1995
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	1995
FXDWG 1340 – Dyna Wide Glide	1340	1995
FXSTSB 1340 – Bad Boy	1340	1995
FXSTC 1340 – Softail Custom	1340	1995
FXSTS 1340 – Softail Springer	1340	1995
XLH 883 – Sportster	883	1995
XLH 883 – Sportster Hugger	883	1995
XLH 883 – Sportster Deluxe	883	1995
XLH 1200 – Sportster	1200	1995
FLHR 1340 – Road King	1340	1994
FLHTC 1340 – Electra Glide Classic	1340	1994
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1994
FLSTC 1340 – Heritage Softail Classic	1340	1994
FLSTF 1340 – Fat Boy	1340	1994
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1994
FLTCU 1340 – Tour Glide Ultra Classic	1340	1994
FXDL 1340 – Dyna Low Rider	1340	1994
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	1994
FXDWG 1340 – Dyna Wide Glide	1340	1994
FXLR 1340 – Low Rider Custom	1340	1994
FXR 1340 – Super Glide	1340	1994
FXSTC 1340 – Softail Custom	1340	1994
FXSTS 1340 – Softail Springer	1340	1994
XLH 883 – Sportster	883	1994
XLH 883 – Sportster Hugger	883	1994
XLH 883 – Sportster Deluxe	883	1994
XLH 1200 – Sportster	1200	1994
FLHS 1340 – Electra Glide Sport	1340	1993
FLHTC 1340 – Electra Glide Classic	1340	1993
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1993
FLSTC 1340 – Heritage Softail Classic	1340	1993
FLSTF 1340 – Fat Boy	1340	1993
FLSTN 1340 – Heritage Softail Special/Nostalgia	1340	1993
FLTCU 1340 – Tour Glide Ultra Classic	1340	1993
FXDL 1340 – Dyna Low Rider	1340	1993
FXDWG 1340 – Dyna Wide Glide	1340	1993
FXLR 1340 – Low Rider Custom	1340	1993
FXR 1340 – Super Glide	1340	1993
FXRS CON. 1340 – Low Rider Convertible	1340	1993
FXRS-SP 1340 – Low Rider Sport Edition (Fxrsl)	1340	1993
FXSTC 1340 – Softail Custom	1340	1993
FXSTS 1340 – Softail Springer	1340	1993
XLH 883 – Sportster Hugger	883	1993
XLH 883 – Sportster Deluxe	883	1993
XLH 883 – Sportster	883	1993
XLH 1200 – Sportster	1200	1993
FLHS 1340 – Electra Glide Sport	1340	1992
FLHTC 1340 – Electra Glide Classic	1340	1992
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1992
FLSTC 1340 – Heritage Softail Classic	1340	1992
FLSTF 1340 – Fat Boy	1340	1992
FLTCU 1340 – Tour Glide Ultra Classic	1340	1992
FXDB 1340 – Dyna Glide Daytona	1340	1992
FXDC 1340 – Dyna Glide Custom	1340	1992
FXLR 1340 – Low Rider Custom	1340	1992
FXR 1340 – Super Glide	1340	1992
FXRS 1340 – Low Rider	1340	1992
FXRS CON. 1340 – Low Rider Convertible	1340	1992
FXRS-SP 1340 – Low Rider Sport Edition (Fxrsl)	1340	1992
FXRT 1340 – Sport Glide	1340	1992
FXSTC 1340 – Softail Custom	1340	1992
FXSTS 1340 – Softail Springer	1340	1992
XLH 883 – Sportster	883	1992
XLH 883 – Sportster Deluxe	883	1992
XLH 883 – Sportster Hugger	883	1992
XLH 1200 – Sportster	1200	1992
FLHS 1340 – Electra Glide Sport	1340	1991
FLHTC 1340 – Electra Glide Classic	1340	1991
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1991
FLSTC 1340 – Heritage Softail Classic	1340	1991
FLSTF 1340 – Fat Boy	1340	1991
FLTC 1340 – Tour Glide Classic	1340	1991
FLTCU 1340 – Tour Glide Ultra Classic	1340	1991
FXDB 1340 – Dyna Glide Sturgis	1340	1991
FXLR 1340 – Low Rider Custom	1340	1991
FXR 1340 – Super Glide	1340	1991
FXRS 1340 – Low Rider	1340	1991
FXRS CON. 1340 – Low Rider Convertible	1340	1991
FXRS-SP 1340 – Low Rider Sport Edition (Fxrsl)	1340	1991
FXRT 1340 – Sport Glide	1340	1991
FXSTC 1340 – Softail Custom	1340	1991
FXSTS 1340 – Softail Springer	1340	1991
XLH 883 – Sportster	883	1991
XLH 883 – Sportster Deluxe	883	1991
XLH 883 – Sportster Hugger	883	1991
XLH 1200 – Sportster	1200	1991
FLHS 1340 – Electra Glide Sport	1340	1990
FLHTC 1340 – Electra Glide Classic	1340	1990
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1990
FLST 1340 – Heritage Softail	1340	1990
FLSTC 1340 – Heritage Softail Classic	1340	1990
FLSTF 1340 – Fat Boy	1340	1990
FLTC 1340 – Tour Glide Classic	1340	1990
FLTCU 1340 – Tour Glide Ultra Classic	1340	1990
FXLR 1340 – Low Rider Custom	1340	1990
FXR 1340 – Super Glide	1340	1990
FXRS 1340 – Low Rider	1340	1990
FXRS CON. 1340 – Low Rider Convertible	1340	1990
FXRS-SP 1340 – Low Rider Sport Edition (Fxrsl)	1340	1990
FXRT 1340 – Sport Glide	1340	1990
FXST 1340 – Softail	1340	1990
FXSTC 1340 – Softail Custom	1340	1990
FXSTS 1340 – Softail Springer	1340	1990
XLH 883 – Sportster	883	1990
XLH 883 – Sportster Deluxe	883	1990
XLH 883 – Sportster Hugger	883	1990
XLH 1200 – Sportster	1200	1990
FLHS 1340 – Electra Glide Sport	1340	1989
FLHTC 1340 – Electra Glide Classic	1340	1989
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1989
FLST 1340 – Heritage Softail	1340	1989
FLSTC 1340 – Heritage Softail Classic	1340	1989
FLTC 1340 – Tour Glide Classic	1340	1989
FLTCU 1340 – Tour Glide Ultra Classic	1340	1989
FXLR 1340 – Low Rider Custom	1340	1989
FXR 1340 – Super Glide	1340	1989
FXRS 1340 – Low Rider	1340	1989
FXRS CON. 1340 – Low Rider Convertible	1340	1989
FXRS-SP 1340 – Low Rider Sport Edition (Fxrsl)	1340	1989
FXRT 1340 – Sport Glide	1340	1989
FXST 1340 – Softail	1340	1989
FXSTC 1340 – Softail Custom	1340	1989
FXSTS 1340 – Softail Springer	1340	1989
XLH 883 – Sportster Hugger	883	1989
XLH 883 – Sportster Deluxe	883	1989
XLH 1200 – Sportster	1200	1989
FLHS 1340 – Electra Glide Sport	1340	1988
FLHTC 1340 – Electra Glide Classic	1340	1988
FLST 1340 – Heritage Softail	1340	1988
FLSTC 1340 – Heritage Softail Classic	1340	1988
FLTC 1340 – Tour Glide Classic	1340	1988
FXLR 1340 – Low Rider Custom	1340	1988
FXR 1340 – Super Glide	1340	1988
FXRS 1340 – Low Rider	1340	1988
FXRS-SP 1340 – Low Rider Sport Edition (Fxrsl)	1340	1988
FXRT 1340 – Sport Glide	1340	1988
FXST 1340 – Softail	1340	1988
FXSTC 1340 – Softail Custom	1340	1988
FXSTS 1340 – Softail Springer	1340	1988
XLH 883 – Sportster Hugger	883	1988
XLH 883 – Sportster Deluxe	883	1988
XLH 1200 – Sportster	1200	1988
FLHT 1340 – Electra Glide	1340	1987
FLHTC 1340 – Electra Glide Classic	1340	1987
FLST 1340 – Heritage Softail	1340	1987
FLTC 1340 – Tour Glide Classic	1340	1987
FXLR 1340 – Low Rider Custom	1340	1987
FXR 1340 – Super Glide	1340	1987
FXRS 1340 – Low Rider	1340	1987
FXRS-SP 1340 – Low Rider Sport Edition (Fxrsl)	1340	1987
FXRT 1340 – Sport Glide	1340	1987
FXST 1340 – Softail	1340	1987
FXSTC 1340 – Softail Custom	1340	1987
XLH 883 – Sportster	883	1987
XLH 1100 – Sportster	1100	1987
FLHT 1340 – Electra Glide	1340	1986
FLHTC 1340 – Electra Glide Classic	1340	1986
FLTC 1340 – Tour Glide Classic	1340	1986
FXEF 1340 – Fat Bob	1340	1986
FXR 1340 – Super Glide	1340	1986
FXRS 1340 – Low Rider	1340	1986
FXRT 1340 – Sport Glide	1340	1986
FXST 1340 – Softail	1340	1986
FXSTC 1340 – Softail Custom	1340	1986
FXWG 1340 – Wide Glide	1340	1986
XLH 883 – Sportster	883	1986
XLH 1100 – Sportster	1100	1986
FLHTC 1340 – Electra Glide Classic	1340	1983
FLTC 1340 – Tour Glide Classic	1340	1985
FXEF 1340 – Fat Bob	1340	1985
FXRC 1340 – Low Glide Custom	1340	1985
FXRS 1340 – Low Glide	1340	1985
FXRT 1340 – Sport Glide	1340	1985
FXSB 1340 – Low Rider	1340	1985
FXST 1340 – Softail	1340	1985
FXWG 1340 – Wide Glide	1340	1985
FLH 1340 – Electra Glide Belt Drive	1340	1984
FLHT 1340 – Electra Glide	1340	1984
FLHTE 1340 – Electra Glide Classic	1340	1984
FLTC 1340 – Tour Glide Classic	1340	1984
FXE 1340 – Super Glide	1340	1984
FXR 1340 II – Super Glide II	1340	1984
FXRDG 1340 – Disc Glide	1340	1984
FXRP 1340 – Sport Glide Police	1340	1984
FXRS 1340 – Low Glide	1340	1984
FXRT 1340 – Sport Glide	1340	1984
FXSB 1340 – Low Rider	1340	1984
FXST 1340 – Softail	1340	1985
FXWG 1340 – Wide Glide	1340	1984
FXSTDSE 1550 – Softail Deuce Screamin Eagle	1550	2003
FXSTDSE2 1550 – Softail Deuce Screamin Eagle	1550	2004
FXR2 1340 – Super Glide Screamin Eagle	1340	1999
FXR3 1340 – Super Glide Screamin Eagle	1340	1999
FXR4 1340 – Super Glide Screamin Eagle	1340	2000
FXDWG2 1450 – Dyna Wide Glide Limited Edition	1450	2001
FXDWG3 1450 – Dyna Wide Glide Limited Edition	1450	2002
FLTRSEI 1550 – Road Glide Screamin Eagle	1550	2000
FLHRSEI 1550 – Road King Screamin Eagle	1550	2002
FLHRSEI2 1690 – Road King Screamin Eagle	1690	2003
FLT 1340 – Tour Glide	1340	1984
FLHS 1340 – Electra Glide Sport	1340	1987
FLHS 1340 – Electra Glide Sport	1340	1994
FXRC 1340 – Low Glide Custom	1340	1987
FXRC 1340 – Low Glide Custom	1340	1986
FXRS-SP 1340 – Low Rider Sport Edition (Fxrsl)	1340	1986
FLHT 1340 – Electra Glide	1340	1988
FLHT 1340 – Electra Glide Standard	1340	1995
FLHTC 1340 – Electra Glide Classic	1340	1985
FLHTC 1340 – Electra Glide Classic	1340	1984
FLST 1340 – Heritage Softail	1340	1986

Beehive® Valve Spring Kit

Description

Features

Additional information

Compatibility

Shop

USEFUL LINKS

CONTACT

FOLLOW US

Terms and Conditions, Warranty
