Vented Dipstick

Value

Categories: Breather Kits Parts, Carburetion-Fuel Group, Parts

Vendor Number: 3094

2.002,76 lei

Description

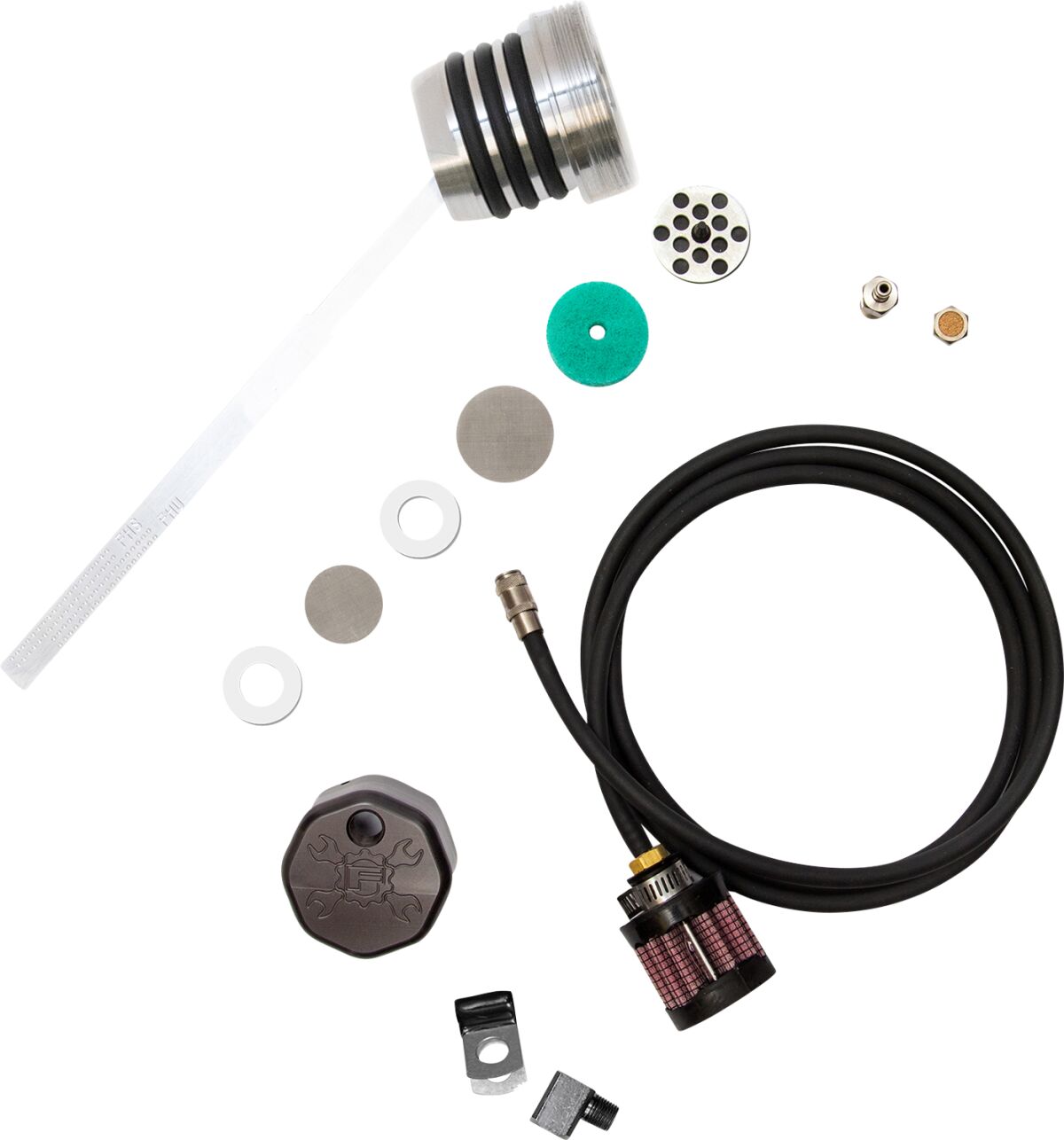

Billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PCV style breather, consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve

Includes two different venting style options for installing the dipstick: option 1 – 1/8 NPT breather vent fitting with internal porous filter element, option 2 – quick disconnect coupler fitting with rubber hose and filter element

There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) Full Hot Stand or the bike upright and level (FHU) Full Hot Upright

The oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank

Fueling test results show a decrease in engine oil sump levels, more freely/smoothe revving engine and increased MPG and decreased blowby

Blowby is pressure that is forced past the rings and cylinders, pushed into the crankcase and then forced into the oil tank

It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot

Removes unwanted build-up of blow by pressure in the oil tank

Screws into the factory oil fill spout as a stock replacement part

Made in the USA

This dipstick does get hot, use a glove when checking oil level

Features

Additional information

Units	Each
Color/Finish	Black, Silver
Features	Black Cap
Product Name	Vented Dipstick
Base Color	Black

Compatibility

Model – Sales name	Size	Year
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	1999
FXDS-CON 1340 – Dyna Super Glide Convertible	1340	2000
FXD 1450 – Dyna Super Glide	1450	2005
FXDI 1450 EFI – Dyna Super Glide	1450	2005
FXDC 1450 – Dyna Super Glide Custom	1450	2005
FXDCI 1450 EFI – Dyna Super Glide Custom	1450	2005
FXDL 1450 – Dyna Low Rider	1450	2005
FXDLI 1450 EFI – Dyna Low Rider	1450	2005
FXDWG 1450 – Dyna Wide Glide	1450	2005
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2005
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2005
FXD 1450 – Dyna Super Glide	1450	2004
FXDI 1450 EFI – Dyna Super Glide	1450	2004
FXDL 1450 – Dyna Low Rider	1450	2004
FXDLI 1450 EFI – Dyna Low Rider	1450	2004
FXDWG 1450 – Dyna Wide Glide	1450	2004
FXDWGI 1450 EFI – Dyna Wide Glide	1450	2004
FXDX 1450 – Dyna Super Glide Sport	1450	2004
FXDXI 1450 EFI – Dyna Super Glide Sport	1450	2004
FXD 1450 – Dyna Super Glide	1450	2003
FXDL 1450 – Dyna Low Rider	1450	2003
FXDWG 1450 – Dyna Wide Glide	1450	2003
FXDX 1450 – Dyna Super Glide Sport	1450	2003
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2003
FXD 1450 – Dyna Super Glide	1450	2002
FXDL 1450 – Dyna Low Rider	1450	2002
FXDWG 1450 – Dyna Wide Glide	1450	2002
FXDX 1450 – Dyna Super Glide Sport	1450	2002
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2002
FXD 1450 – Dyna Super Glide	1450	2001
FXDL 1450 – Dyna Low Rider	1450	2001
FXDWG 1450 – Dyna Wide Glide	1450	2001
FXDX 1450 – Dyna Super Glide Sport	1450	2001
FXDXT 1450 – Dyna Super Glide T-Sport	1450	2001
FXD 1450 – Dyna Super Glide	1450	2000
FXDL 1450 – Dyna Low Rider	1450	2000
FXDWG 1450 – Dyna Wide Glide	1450	2000
FXDX 1450 – Dyna Super Glide Sport	1450	2000
FXD 1450 – Dyna Super Glide	1450	1999
FXDL 1450 – Dyna Low Rider	1450	1999
FXDWG 1450 – Dyna Wide Glide	1450	1999
FXDX 1450 – Dyna Super Glide Sport	1450	1999
FXDWG2 1450 – Dyna Wide Glide Limited Edition	1450	2001
FXDWG3 1450 – Dyna Wide Glide Limited Edition	1450	2002
