Vented Dipstick

Value

Categories: Breather Kits Parts, Carburetion-Fuel Group, Parts

Vendor Number: 3096

2.002,76 lei

Description

Billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PCV style breather, consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve

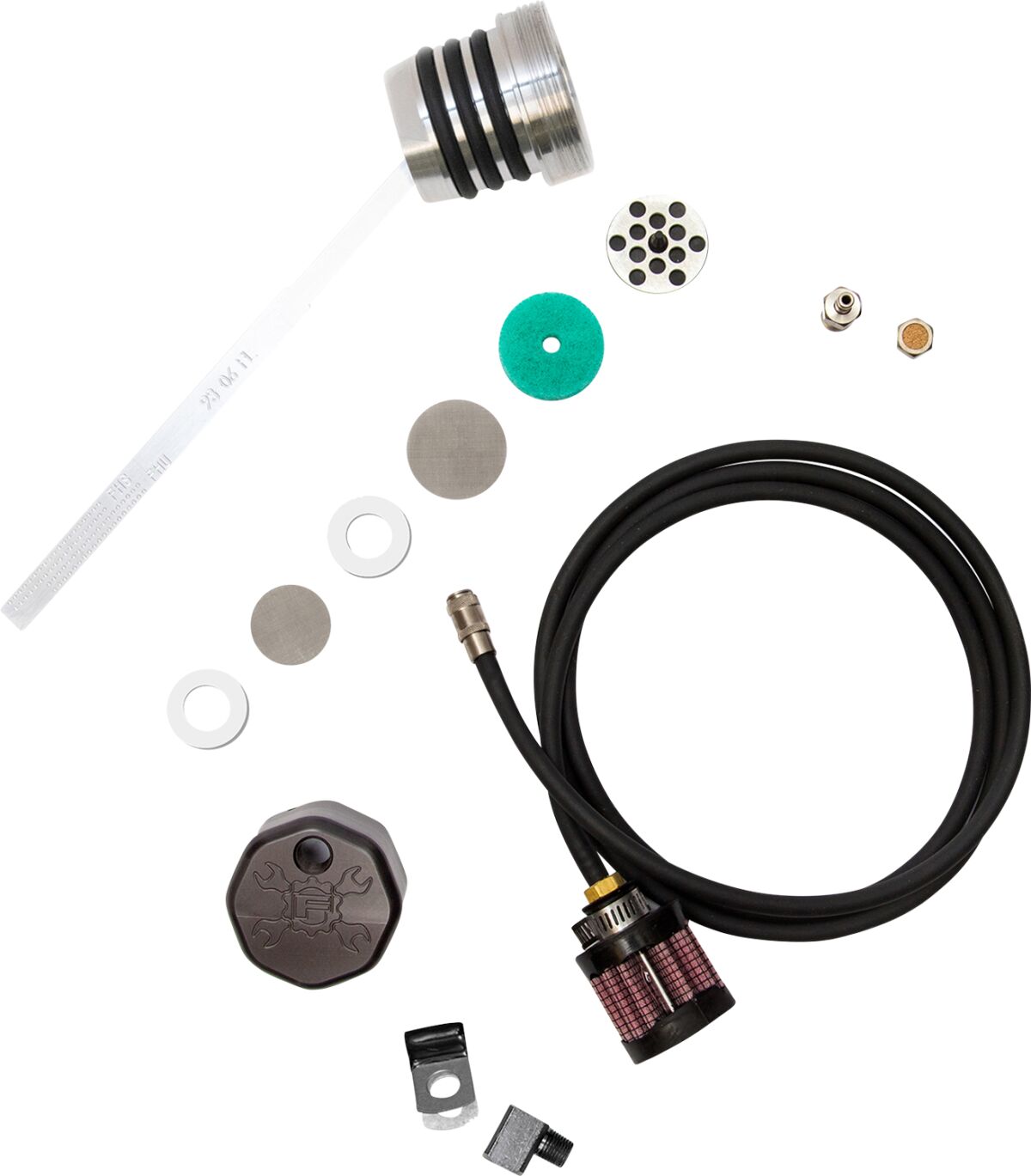

Includes two different venting style options for installing the dipstick: option 1 – 1/8 NPT breather vent fitting with internal porous filter element, option 2 – quick disconnect coupler fitting with rubber hose and filter element

There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) Full Hot Stand or the bike upright and level (FHU) Full Hot Upright

The oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank

Fueling test results show a decrease in engine oil sump levels, more freely/smoothe revving engine and increased MPG and decreased blowby

Blowby is pressure that is forced past the rings and cylinders, pushed into the crankcase and then forced into the oil tank

It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot

Removes unwanted build-up of blow by pressure in the oil tank

Screws into the factory oil fill spout as a stock replacement part

Made in the USA

This dipstick does get hot, use a glove when checking oil level

Features

Additional information

Units	Each
Features	Black Cap
Base Color	Black
Product Name	Vented Dipstick
Color/Finish	Black, Silver

Compatibility

Model – Sales name	Size	Year
FLHRI 1450 EFI – Road King	1450	2001
FLHRI 1450 EFI – Road King	1450	2002
FLHT 1450 – Electra Glide	1450	2006
FLTR 1450 – Road Glide	1450	2003
FLHRS 1450 – Road King Custom	1450	2004
FLHR 1450 – Road King	1450	2006
FLHRI 1450 EFI – Road King	1450	2006
FLHRS 1450 – Road King Custom	1450	2006
FLHRSI 1450 EFI – Road King Custom	1450	2006
FLHRCI 1450 EFI – Road King Classic	1450	2006
FLHTCI 1450 EFI – Electra Glide Classic	1450	2006
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2006
FLHTI 1450 EFI – Electra Glide	1450	2006
FLHX 1450 – Street Glide	1450	2006
FLHXI 1450 EFI – Street Glide	1450	2006
FLTRI 1450 EFI – Road Glide	1450	2006
FLHRCI 1450 EFI – Road King Classic	1450	2005
FLHR 1450 – Road King	1450	2005
FLHRI 1450 EFI – Road King	1450	2005
FLHRS 1450 – Road King Custom	1450	2005
FLHRSI 1450 EFI – Road King Custom	1450	2005
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2005
FLHTC 1450 – Electra Glide Classic	1450	2005
FLHTCI 1450 EFI – Electra Glide Classic	1450	2005
FLHT 1450 – Electra Glide	1450	2005
FLHTI 1450 EFI – Electra Glide	1450	2005
FLTRI 1450 EFI – Road Glide	1450	2005
FLHR 1450 – Road King	1450	2004
FLHRI 1450 EFI – Road King	1450	2004
FLHRC 1450 – Road King Classic	1450	2004
FLHRCI 1450 EFI – Road King Classic	1450	2004
FLHRSI 1450 EFI – Road King Custom	1450	2004
FLHT 1450 – Electra Glide	1450	2004
FLHTI 1450 EFI – Electra Glide	1450	2004
FLHTC 1450 – Electra Glide Classic	1450	2004
FLHTCI 1450 EFI – Electra Glide Classic	1450	2004
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2004
FLTRI 1450 EFI – Road Glide	1450	2004
FLHR 1450 – Road King	1450	2003
FLHRI 1450 EFI – Road King	1450	2003
FLHRCI 1450 EFI – Road King Classic	1450	2003
FLHT 1450 – Electra Glide	1450	2003
FLHTC 1450 – Electra Glide Classic	1450	2003
FLHTCI 1450 EFI – Electra Glide Classic	1450	2003
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2003
FLTRI 1450 EFI – Road Glide	1450	2003
FLHR 1450 – Road King	1450	2002
FLHRCI 1450 EFI – Road King Classic	1450	2002
FLHT 1450 – Electra Glide	1450	2002
FLHTC 1450 – Electra Glide Classic	1450	2002
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2002
FLTR 1450 – Road Glide	1450	2002
FLTRI 1450 EFI – Road Glide	1450	2002
FLHR 1450 – Road King	1450	2001
FLHRCI 1450 EFI – Road King Classic	1450	2001
FLHT 1450 – Electra Glide	1450	2001
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2001
FLTR 1450 – Road Glide	1450	2001
FLTRI 1450 EFI – Road Glide	1450	2001
FLHR 1450 – Road King	1450	2000
FLHRI 1450 EFI – Road King	1450	2000
FLHRCI 1450 EFI – Road King Classic	1450	2000
FLHT 1450 – Electra Glide	1450	2000
FLHTCI 1450 EFI – Electra Glide Classic	1450	2000
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	2000
FLTR 1450 – Road Glide	1450	2000
FLTRI 1450 EFI – Road Glide	1450	2000
FLHR 1450 – Road King	1450	1999
FLHRI 1450 EFI – Road King	1450	1999
FLHRCI 1450 EFI – Road King Classic	1450	1999
FLHT 1450 – Electra Glide	1450	1999
FLHTCI 1450 EFI – Electra Glide Classic	1450	1999
FLHTCUI 1450 EFI – Electra Glide Ultra Classic	1450	1999
FLTR 1450 – Road Glide	1450	1999
FLTRI 1450 EFI – Road Glide	1450	1999
FLHR 1340 – Road King	1340	1998
FLHRCI 1340 EFI – Road King Classic	1340	1998
FLHT 1340 – Electra Glide Standard	1340	1998
FLHTC 1340 – Electra Glide Classic	1340	1998
FLHTCI 1340 EFI – Electra Glide Classic	1340	1998
FLHTCUI 1340 EFI – Electra Glide Ultra Classic	1340	1998
FLTRI 1340 EFI – Road Glide	1340	1998
FLHR 1340 – Road King	1340	1997
FLHRI 1340 EFI – Road King	1340	1997
FLHT 1340 – Electra Glide Standard	1340	1997
FLHTC 1340 – Electra Glide Classic	1340	1997
FLHTCI 1340 EFI – Electra Glide Classic	1340	1997
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1997
FLHTCUI 1340 EFI – Electra Glide Ultra Classic	1340	1997
FLHR 1340 – Road King	1340	1996
FLHRI 1340 EFI – Road King	1340	1996
FLHT 1340 – Electra Glide Standard	1340	1996
FLHTC 1340 – Electra Glide Classic	1340	1996
FLHTCI 1340 EFI – Electra Glide Classic	1340	1996
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1996
FLHTCUI 1340 EFI – Electra Glide Ultra Classic	1340	1996
FLTCU 1340 – Tour Glide Ultra Classic	1340	1996
FLHR 1340 – Road King	1340	1995
FLHTC 1340 – Electra Glide Classic	1340	1995
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1995
FLHTCUI 1340 EFI – Electra Glide Ultra Classic Special Anniversary Edition	1340	1995
FLTCU 1340 – Tour Glide Ultra Classic	1340	1995
FLHR 1340 – Road King	1340	1994
FLHTC 1340 – Electra Glide Classic	1340	1994
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1994
FLTCU 1340 – Tour Glide Ultra Classic	1340	1994
FLHS 1340 – Electra Glide Sport	1340	1993
FLHTC 1340 – Electra Glide Classic	1340	1993
FLHTCU 1340 – Electra Glide Ultra Classic	1340	1993
FLTCU 1340 – Tour Glide Ultra Classic	1340	1993
FLHS 1340 – Electra Glide Sport	1340	1994
FLHT 1340 – Electra Glide Standard	1340	1995
